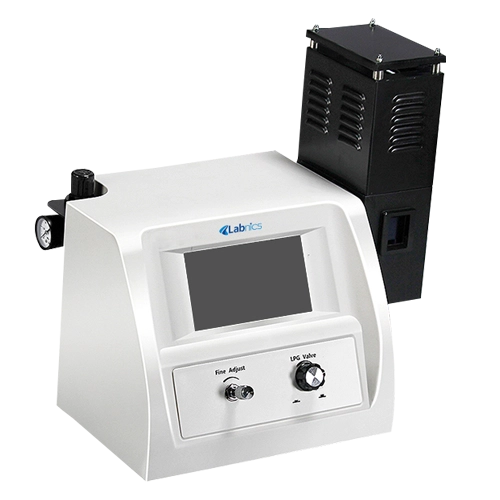

Flame Photometer NFP-105

Flame Photometer NFP-105 is an analytical instrument that determines concentration of metal ions like K, Li, Na, and Ca in a test sample on the basis of their flame color and excitation wavelengths. It is supported with USB interface for data transfer and storage. It is featured with large color screen that displays and represents analyzed data in graphical curve format.

---

Get Quote Catalog Manual

Specifications

Testing Elements	K, Li, Na, and Ca
Display Value	Concentration value
No of Channels	4
Data Range	0.000~999.9
Range	K (0-100 ppm), Na(0-160 ppm), Li(0-100ppm), Ca(0-1000ppm)
LOD (in ppm)	K (0.01 ppm), Na(0.01 ppm), Li(0.1 ppm), and Ca(2 ppm)
Linear Error	K (0.195 ppm), Na (0.69 ppm), Li(0.15 ppm), and Ca(3 ppm)
Response	time <8s
Sample uptake	<6ml/min
Stability	<3% drift over 15s during continuous aspiration
Reproducibility	<3% coefficient of variation for 7 consecutive samples
Fuel	LPG
Power consumption	250 W
Power supply	AC 220V±22V 50Hz±1Hz
Working Temperature	10°C -35°C
Relative Humidity	≤ 85% RH
Overall Dimensions	780×560×390 mm
Weight	18 kg

Features

• 7 inch Color touch screen display
• Display of direct concentration of elements
• It automatically determines correlation coefficient of test sample
• It allows pre- selection of flame sizes
• It is equipped with flame out protection devices
• It is supported with air compressor that ensures essential stable flame conditions
• It provides selection of different concentration units
• It is featured with multilingual user interface

Applications

• It has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries.

Optional Accessories

• Accessories No	Name
  1	Built in thermal printer
  1	USB interface
