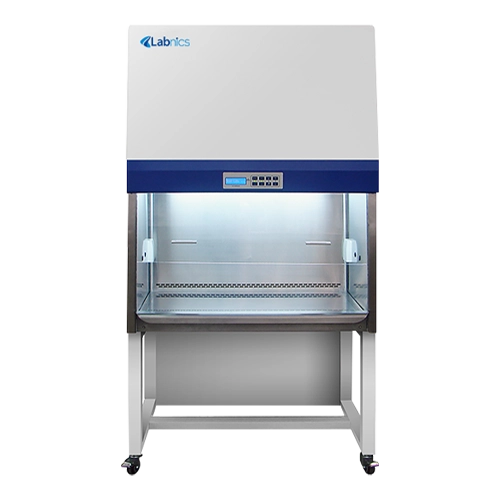

Class II Biosafety Cabinet NBSC-100
Class II Biosafety Cabinet NBSC-100
Class II Biosafety Cabinet NBSC-100 is a safety containment cabinet with type A2 safety level and HEPA filters that recirculates 70% filtered air within the cabinet and discharges 30% of filtered air into the outer environment with the help of HEPA exhaust filter. As a result, it limits the operator's exposure to even minute quantities of volatile toxic or hazardous chemicals and radio nucleotide by negative pressure inward airflow. It thereby helps provides suitable work environment to the user and the product against pathogens and potentially hazardous microbial agents or materials.
Specifications
| Air circulation | 0.7 |
| Air exhaust | 0.3 |
| Glass door orientation | Vertical |
| HEPA filters | 99.999 % efficient at 0.3 µm ( ×2 ) |
| Air pressure | 500 Pa |
| Inflow velocity | 0.53m/s |
| Downflow velocity | 0.35m/s |
| Illumination | ≥ 1000 Lux |
| Display | LED Display |
| Alarm system | Audio – visual alarm |
| Filter guard | Aluminum alloy frame |
| Power consumption | 1000 W |
| Power supply | AC 220 / 110 V ± 10 %, 50 / 60 Hz ± 1 Hz |
| Noise level | ≤ 65 dB |
| Cabinet material | Cold-rolled steel with anti-bacteria powder coating |
| Work table material | 304 stainless steel |
| Window material | Two-layer laminated toughened glass |
| Window thickness | ≥ 5 mm |
| Interior dimensions ( W × H × D ) | 965 × 560 × 670 mm |
| Exterior dimensions ( W × H × D ) | 1040 × 2060 × 760 mm |
| Weight | 220 kg |
Features
- ✔ UV lamp for sterilization
- ✔ Adjustable auto-air speed with filter block
- ✔ Microprocessor, LED for safety and operation parameter monitoring
- ✔ 2 waterproof sockets
- ✔ Memory function and UV life indicator alarm
- ✔ Filter replacement, front window over height and abnormal air flow velocity alarm
Applications
Used in microbiology, pharmaceutical, biotechnology, life science and environmental research based industries in order to safeguard the user, the product and the environment from toxic and hazardous contaminants.
