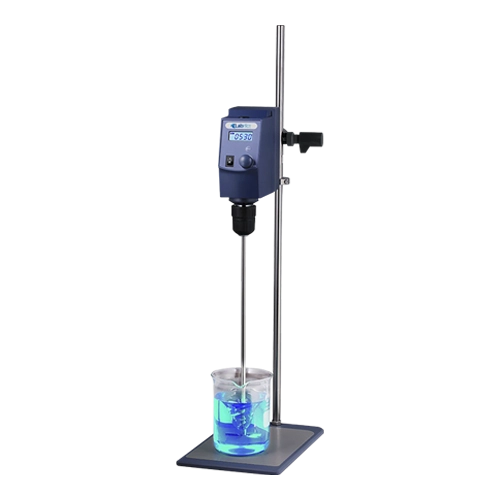

Overhead Stirrer NOHS-101 is an overhead, motor-driven agitation equipment designed for emulsification or homogenization of a compound mixture. It is equipped with a unique shaft stirrer design that helps in the mixing of viscous liquid mixtures with high shear stress. The microprocessor-controlled system ensures safe operation during voltage fluctuations and regulates the speed at desired levels.
$2,038.00
Specifications
| Stirring capacity | 40L |
| Motor input power | 120W |
| Motor output power | 100W |
| Stir speed | 50-2200rpm |
| Stir speed accuracy | ±3rpm |
| Permissible Ambient Temperature | 5-40°C, 80%RH |
| Maximum viscosity | 50000mPas |
| Voltage | 100V-240V, 50/60 Hz |
| Power | 130W |
| Max. torque | 60Ncm |
| Display | LED |
| Interface | RS232 |
| Overall dimensions (L×W×H) | 83 × 220 × 186 mm |
| Weight | 2.8 kg |
Features
Applications
Standard Accessories
Propeller stirrer (Shaft length: 40cm, Stirrer diameter: 5cm, Shaft diameter：Ø8mm, Material: 316L stainless steel)
Universal plate stand (WxD: 20x31cm) and support holder (H: 78cm)
Optional Accessories
Paddle stirrer (Shaft length: 40cm, Stirrer diameter: 6.8cm, Shaft diameter: Ø8mm, Material: 316L stainless steel)
Centrifugal stirrer (Shaft length: 40cm, Stirrer diameter: 9cm, Shaft diameter: Ø8mm, Material: 316L stainless steel)
Straight stirrer (Shaft length: 35cm, Stirrer diameter: 7cm, Shaft diameter: Ø8mm, Material: PTFE coated)
Spiral stirrer (Shaft length: 40cm, Stirrer diameter: 5cm, Shaft diameter: Ø8mm, Material: 316L stainless steel)
Flat-blade stirrer (Shaft length: 40cm, Stirrer diameter: 6cm, Shaft diameter: Ø8mm, Material: 316L stainless steel)
