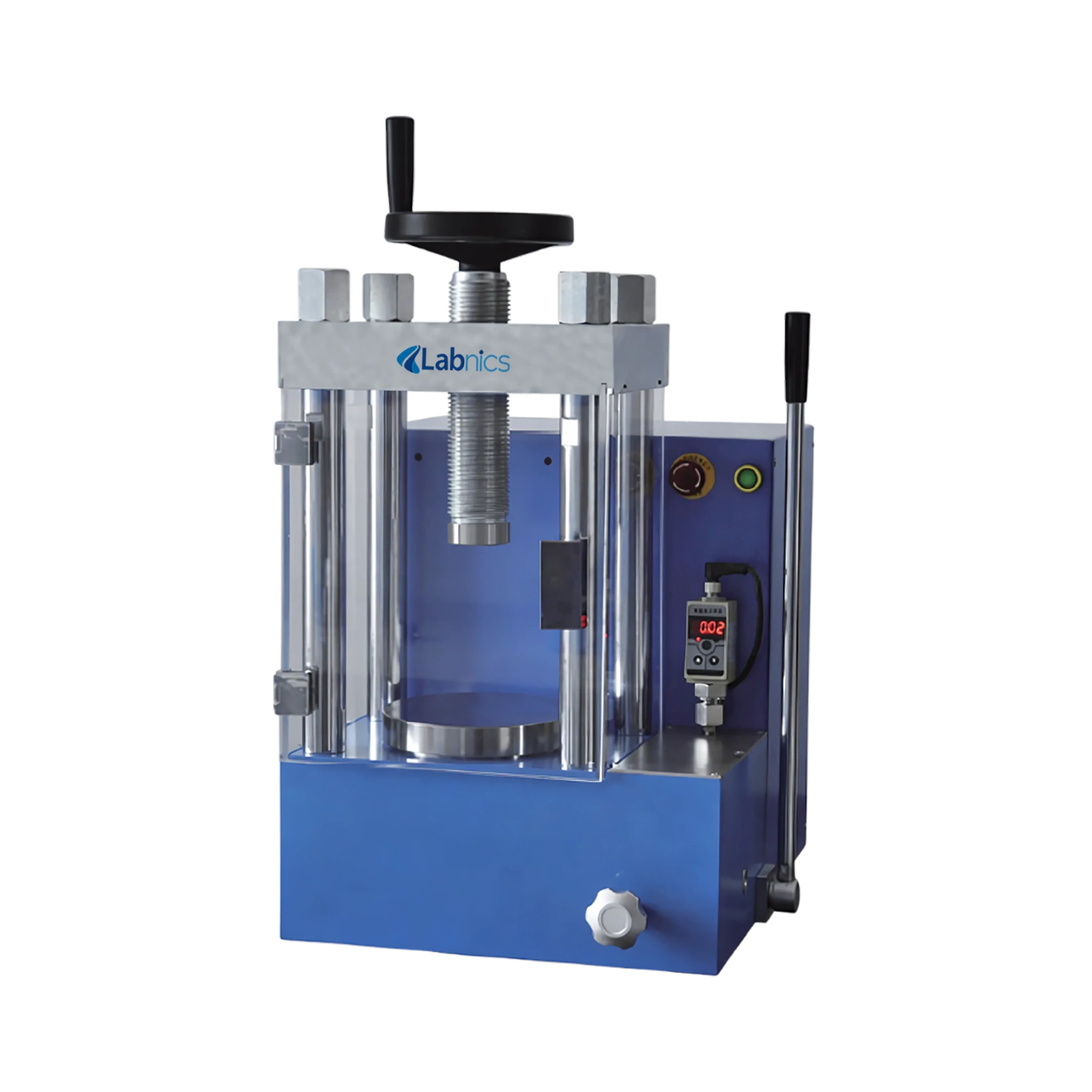

Electric Hydraulic Pellet Press NEHPP-101 is a compact electric press with a pressure range of 0–40T. It offers pressure stability of ≤1 MPa over 10 minutes for reliable and uniform pressing. This system allows accurate control of pressurization pressure for reliable results. Its dual-mode design enhances ease of use for various sample preparation needs. Our model is built with accuracy to prepare high-quality pellets, material forming, and other precision tasks.
$35,000.00
| Pressure Range | 0 to 40T (0 to 30 MPa) |
| Piston Diameter | 130 mm |
| Max. Piston Stroke | 50 mm |
| Pressure Gauge | Digital display |
| Pressure Stability | ≤ 1 MPa / 10 min |
| Pressurization Mode | Electric or manual |
| Compensation Mode | Auto or manual |
| Workbench Diameter (D) | 140 mm |
| Power Supply | 110V, 60 Hz |
| Working Space (M×N) | 115 × 185 mm |
| Dimensions (W×L×H) | 295 × 450 × 500 mm |
| Weight | 92 kg |
Automatic pressure holding
Digital pressure display
Durable steel frame
Quick-release function
Anti-vibration design
Electric Hydraulic Pellet Press NEHPP-101 is designed to apply controlled, high pressure for sample preparation and material compaction. It is commonly used in research laboratories, material science center, and analytical testing facilities.
1: What are the standard die sizes supported by Electric Hydraulic Pellet Press NEHPP-101?
Electric Hydraulic Pellet Press NEHPP-101 supports common die sizes such as 13mm, 25mm, and 32mm.
2: Can the pressure be adjusted?
Yes, pressure is adjustable through a digital control system in Electric Hydraulic Pellet Press NEHPP-101.
3: Is the Electric Hydraulic Pellet Press NEHPP-101 noisy during operation?
No, Electric Hydraulic Pellet Press NEHPP-101 is designed for low-noise or noise-free operation in lab environments.
4: Can Electric Hydraulic Pellet Press NEHPP-101 be used continuously for multiple samples?
Yes, Electric Hydraulic Pellet Press NEHPP-101 supports continuous operation and is suitable for high-throughput labs.
5: What is the expected lifespan of Electric Hydraulic Pellet Press NEHPP-101?
With proper care, the machine can function reliably for 5 to 10 years or more.
6: What materials can be processed using Electric Hydraulic Pellet Press?
Electric Hydraulic Pellet Press can compress powders, metals, ceramics, polymers, and composite materials.
7: How does Electric Hydraulic Pellet Press differ from a manual hydraulic press?
Unlike manual presses, electric models automate pressure application, offering faster and consistent operation through electricity.
8: Can Electric Hydraulic Pellet Press be integrated with other lab equipment?
Yes, Electric Hydraulic Pellet Press can be used alongside XRF, FTIR, or spectroscopy systems for sample preparation.
9: How long does it take to form one pellet?
Pellet formation usually takes less than 1–2 minutes per sample.
Electric Hydraulic Pellet Presses are lab devices used to compress powder samples into pellets. They operate with a high pressure and include digital pressure control. They feature automatic electric operation for ease and consistency. Their compact structures allow easy placement in limited lab spaces. Our models are built with low-noise designs that enhance safe and user-friendly operation.
