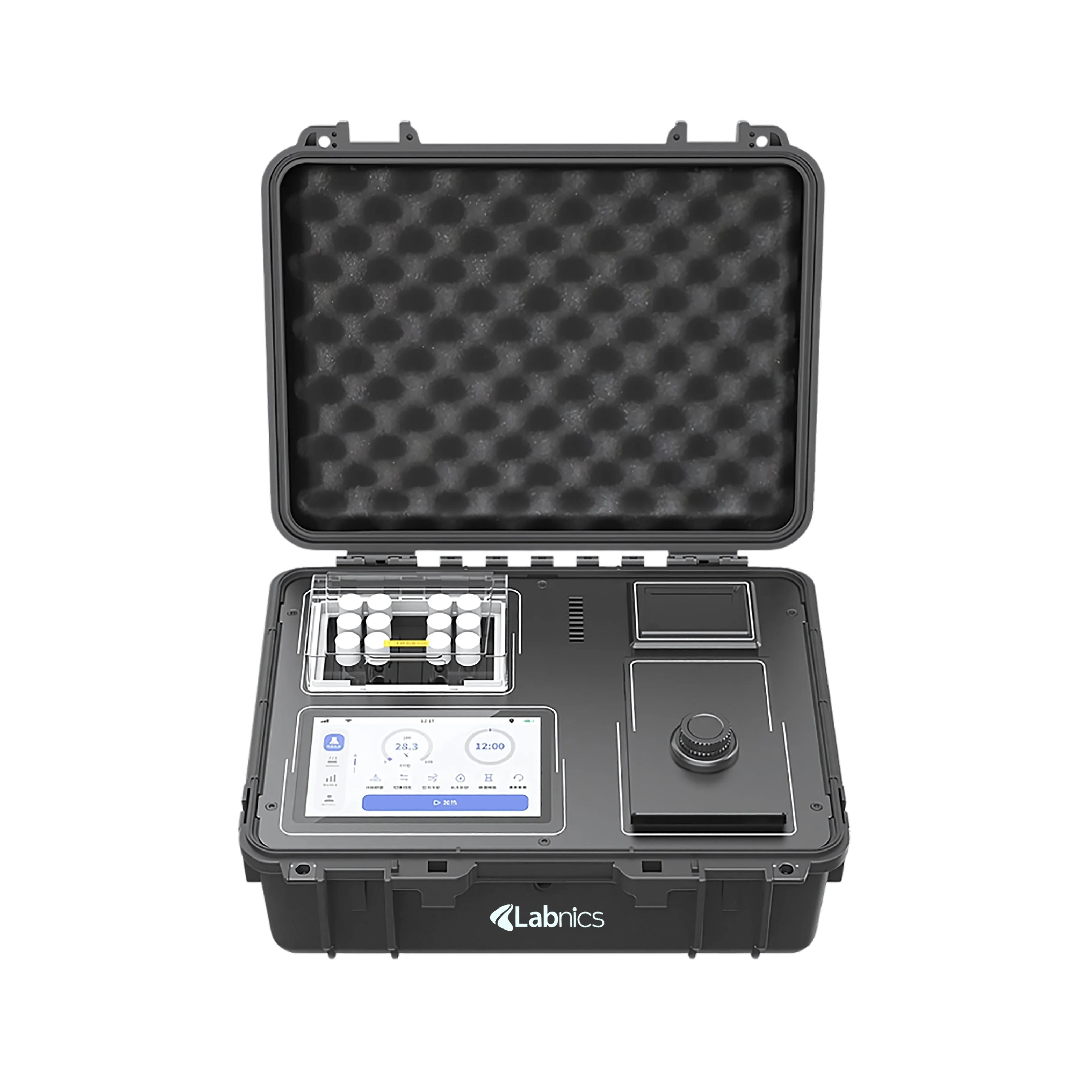

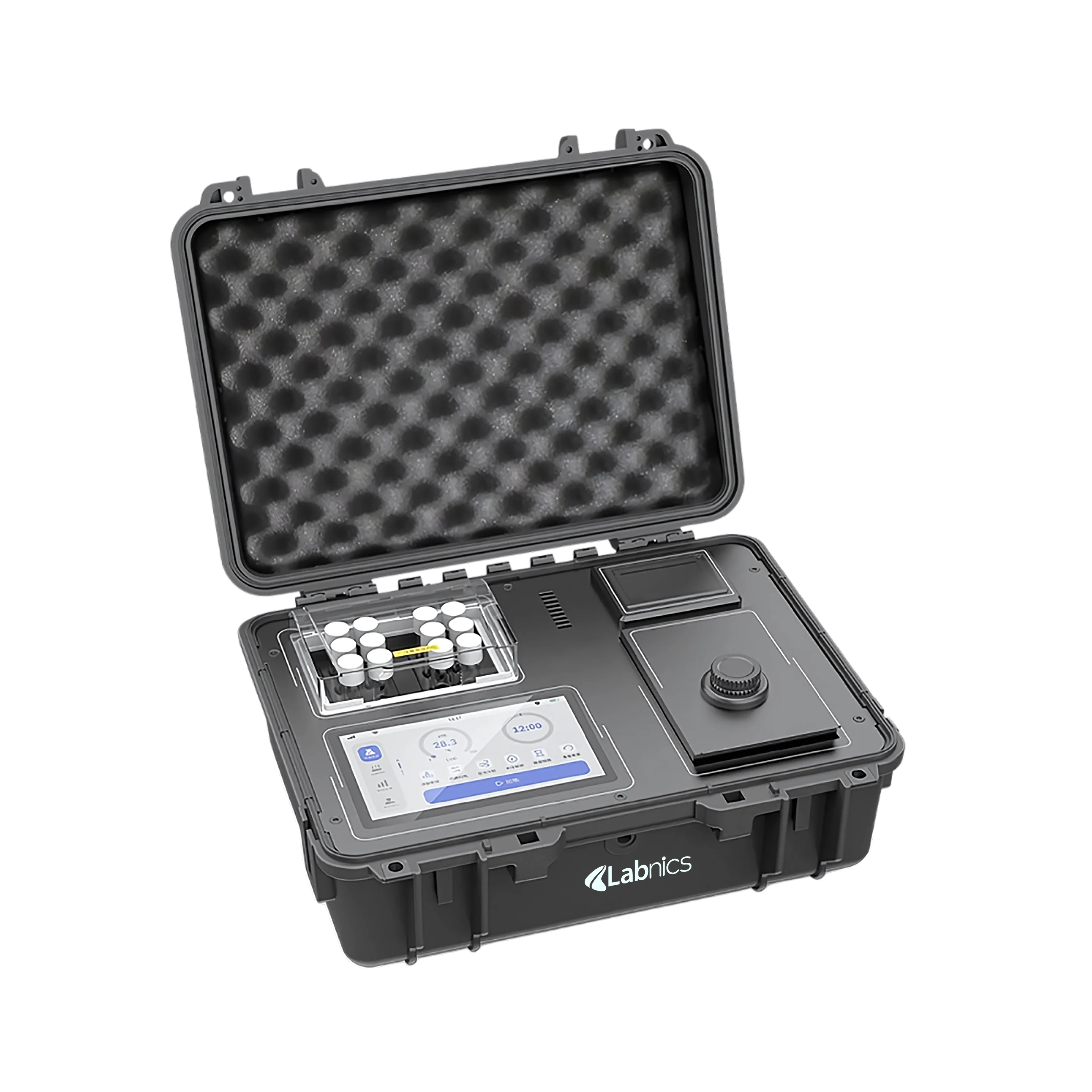

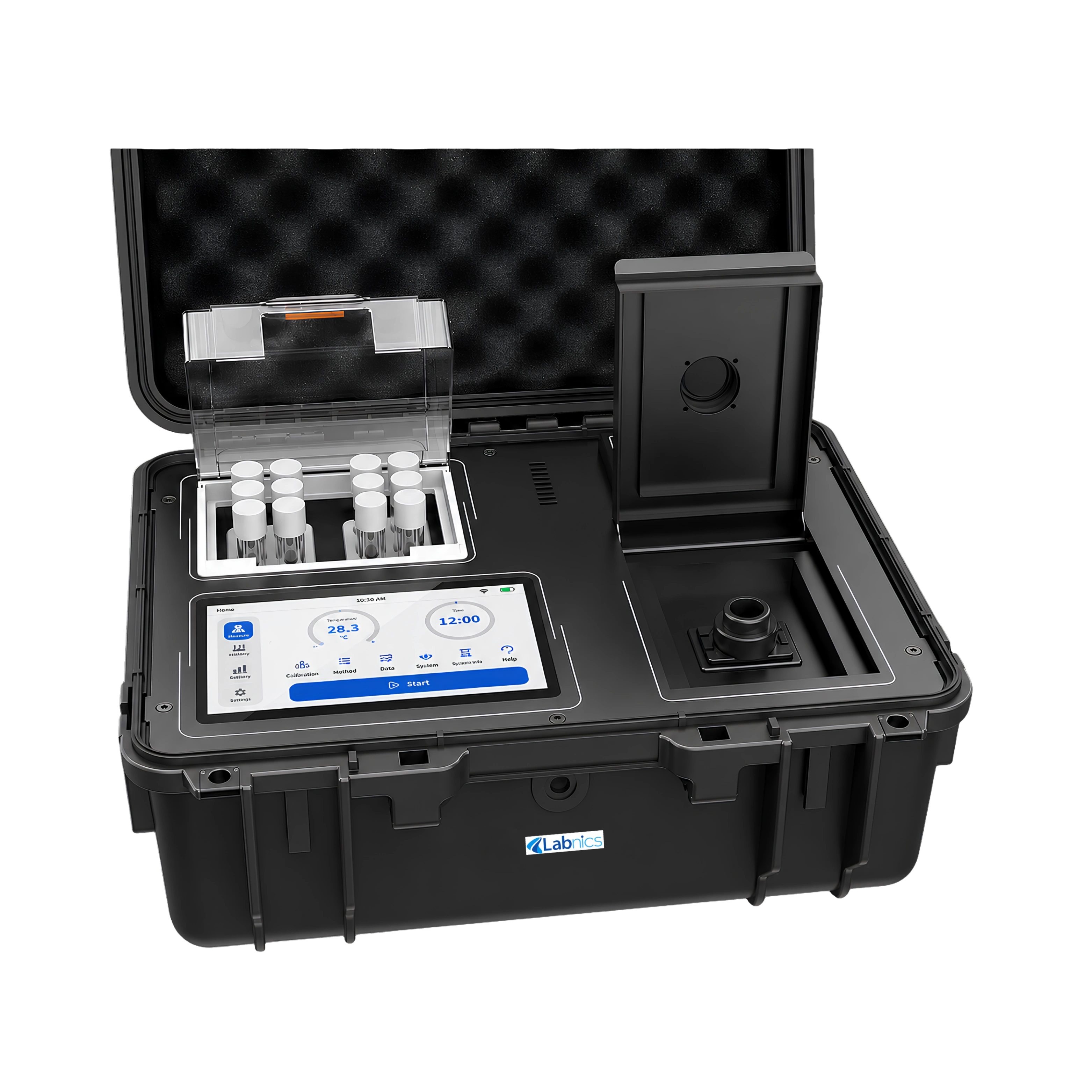

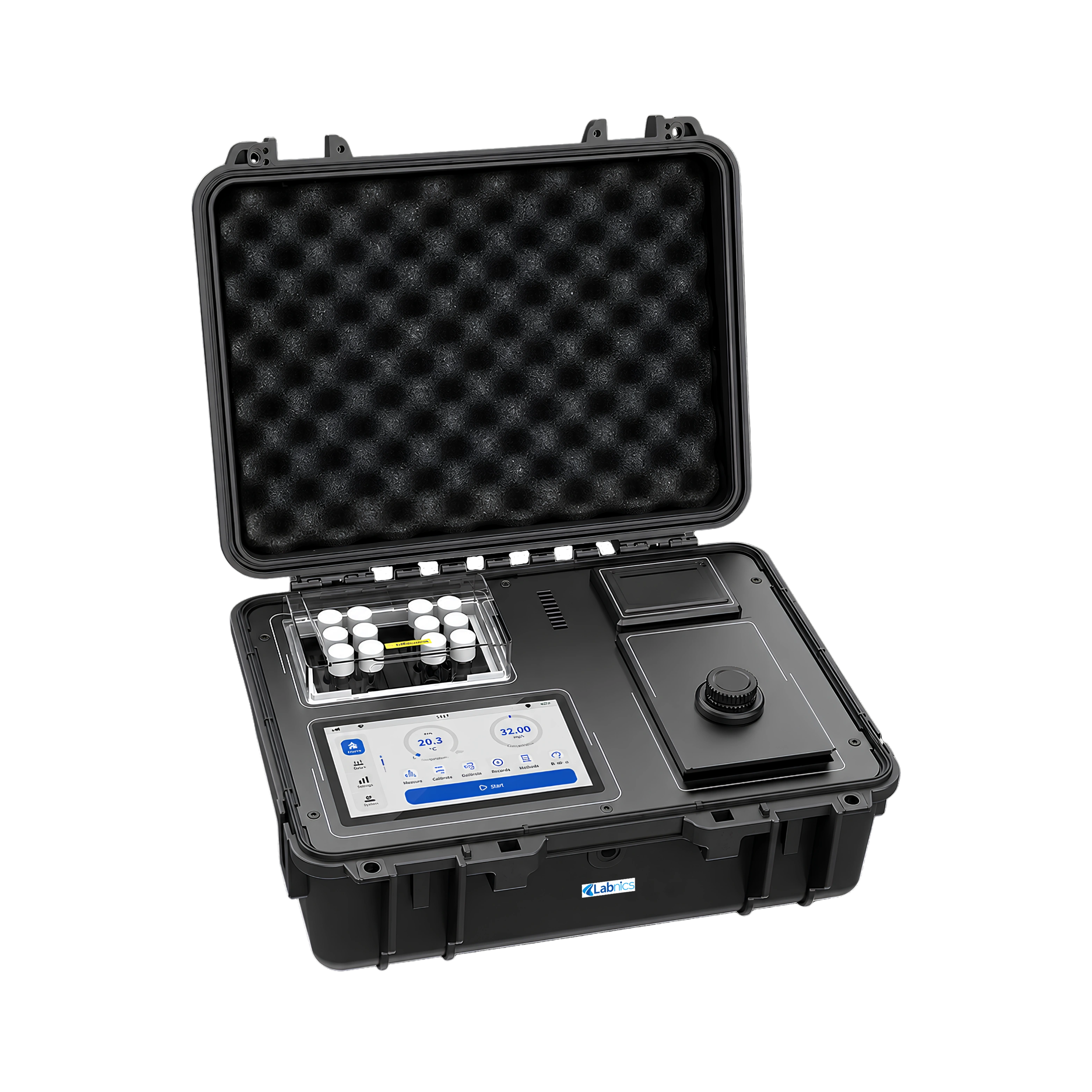

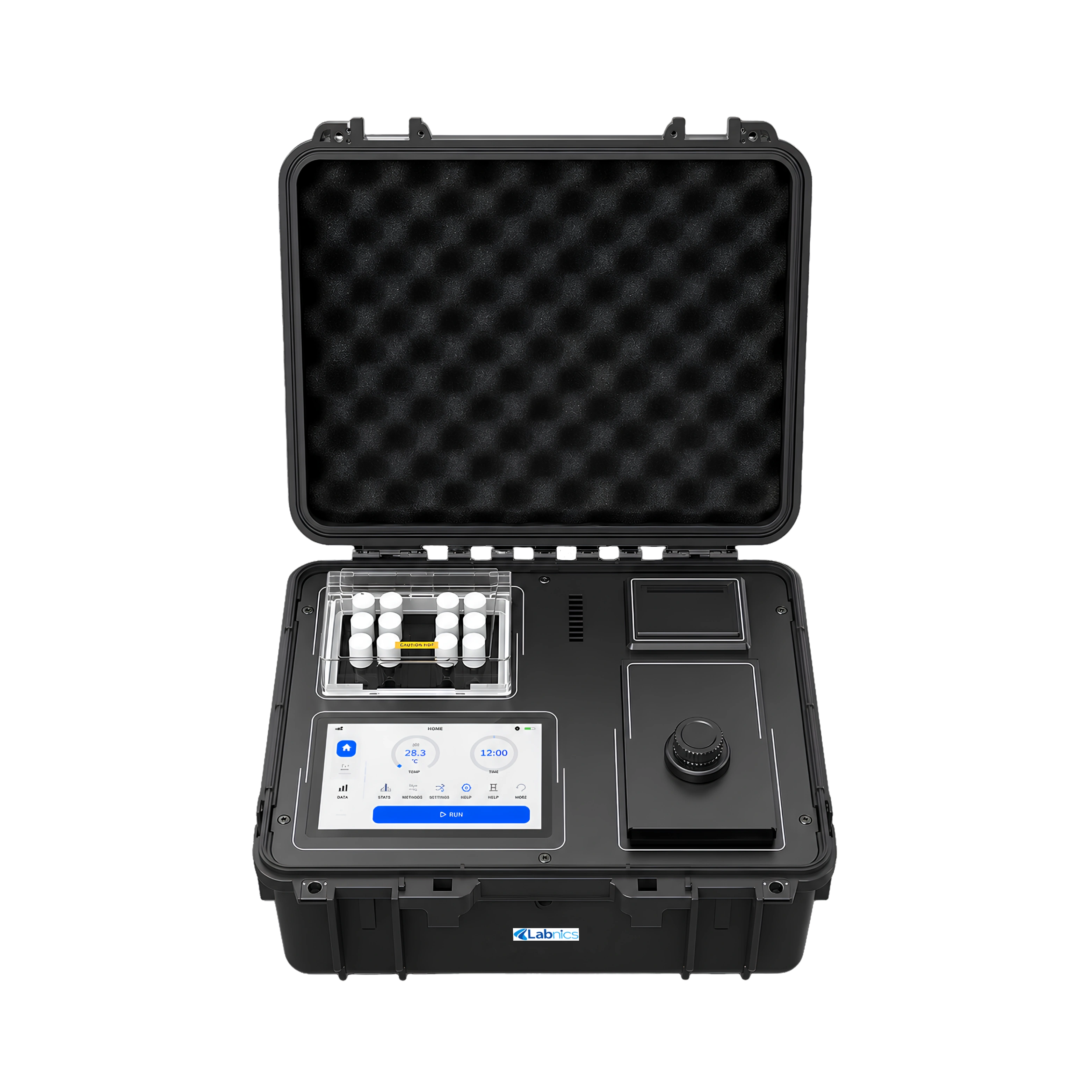

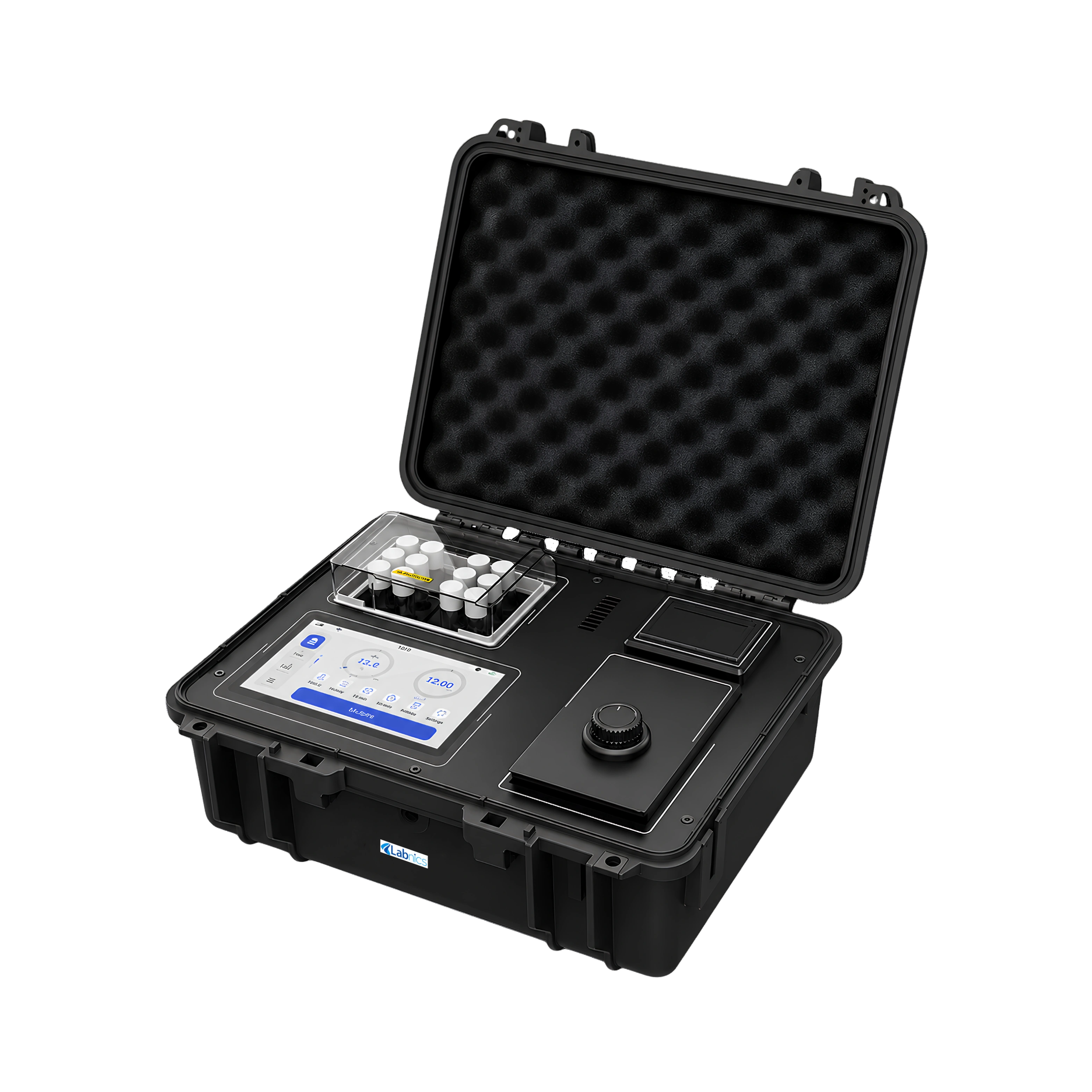

Multi-Parameter Water Quality Analyzer NMWA-100
Multi-Parameter Water Quality Analyzer NMWA-100 offers a comprehensive solution for assessing water quality by measuring multiple parameters simultaneously, providing accurate, real-time data for various applications. Incorporates a dual temperature zone design with 6+6 zones operating at 165°C and 60°C allowing simultaneous operation without interference. User-friendly interfaces, with intuitive controls and displays to facilitate easy operation and data interpretation.
| COD Measurement Range | 0-15000mg/L |
| Ammonia Nitrogen Measurement Range | 0－160mg/L |
| Phosphorus Measurement Range | 0－100mg/L |
| Nitrogen Measurement Range | 0－150mg/L |
| SS Measurement Range | 0.5-1000 mg/L |
| Turbidity Measurement Range | 0.5-400 NTU |
| COD Measurement Accuracy | COD<50mg/L,≤±10％ COD>50mg/L,≤± 5％ COD>50mg/L,≤± 5％ |
| Ammonia Nitrogen Accuracy | ≤±5％ |
| Phosphorus Accuracy | ≤±5％ |
| Nitrogen Accuracy | ≤±5％ |
| SS Accuracy | ≤±5％ |
| Turbidity Accuracy | ≤±5％ |
| COD Detection Limit | 0.1mg/L |
| Ammonia Nitrogen Detection Limit | 0.01mg/L |
| Phosphorus Detection Limit | 0.002mg/L |
| Nitrogen Detection Limit | 0.1mg/L |
| SS Detection Limit | 1mg/L |
| Turbidity Detection Limit | 0.5NTU |
| COD Time Range | 20min |
| Ammonia Nitrogen Time Range | 10~15min |
| Phosphorus Time Range | 35~50min |
| Nitrogen Time Range | 45 to 50min |
| SS Time Range | 1min |
| Turbidity Time Range | 1 min |
| COD Batch Processing | 12 |
| Ammonia Nitrogen Batch Processing | No limit |
| Phosphorus Batch Processing | 12 |
| Nitrogen Batch Processing | 12 |
| SS Batch Processing | No limit |
| Turbidity Batch Processing | No limit |
| COD Repeatability | ≤±5% |
| Ammonia Nitrogen Repeatability | ≤±5% |
| Phosphorus Repeatability | ≤±5% |
| Nitrogen Repeatability | ≤±5% |
| SS Repeatability | ≤±5% |
| Turbidity Repeatability | ≤±5% |
| Lamp Life | 100000 hours |
| Optical Stability | ≤±0.001A/10min |
| COD Anti chlorine Interference | [Cl-]＜1000mg/L has no effect [Cl-]＜4000mg/L(optional) |
| Colorimetric Method | 16mm/25mm Tube,10mm/30mm Cuvette |
| Data Storage | 50 million |
| COD Digestion Temperature | 165℃±0.5℃ |
| Phosphorus Digestion Temperature | 120℃±0.5℃ |
| Nitrogen Digestion Temperature | 122℃±0.5℃ |
| COD Digestion Time | 10 min |
| Phosphorus Digestion Time | 30 min |
| Nitrogen Digestion Time | 40 min |
| Time switch | Automatic |
| Temperature Range | RT ±5-190℃ |
| Temperature Indication Error | ＜±2℃ |
| Uniformity | ≤2℃ |
| Time Range | 1-600 min |
| Power Consumption | 180W |
| Rated Voltage | 24 V |
| Ambient Temperature | 5 to 40 ℃, |
| Relative Humidity | ≤85% |
| Host Dimemsion | 430 × 345 × 188 mm |
| Experiment Box Dimension | 479 × 387 × 155 mm |
| Host Weight | 11.9 Kg |
| Test Box Weight | 7 Kg |
Multi Parameter Water Quality Analyzer is used in on-field water quality analysis based on COD, ammonia nitrogen, total phosphorous, and turbidity parameters.
COD reagent
| Measurement range | 0-4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5 days |
| Measure amount | 6 |
| Measuring range | 0 to 4000 mg/L |
| Measuring error | ±10% |
| Resolution | 2 mg/L |
| Cycle length | 1-5 days |
| Measurement range | 0 to 4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5days |
| Measure amount | 6 |
| High COD Range | 20 to 10000mg/L |
| Low COD Range | 2 to 150mg/L |
| Accuracy for COD < 50mg/L | ≤ ±5% |
| Accuracy for COD > 50mg/L | ≤ ±3% |
| Digestion capacity | 9 vials |
| Vial volume | Maximum 10ml |
| Vial dimension | ф16 × 100 mm |
| Digestion temperature | 20°C - 200°C |
| Digestion capacity | 16 vials |
| Vial volume | Maximum 10ml |
| Vial dimension | ф16 × 150 mm / ф20mm × 150 mm |
| Digestion temperature | 45°C - 190°C |
| Model no | NCCA-100 |
| Measuring range | k= 1 0~2000μS/cm |
| Resolution | 0.01μS/cm , 0.1μS/cm , 1μS/cm , 0.01mS/cm 0.1mS/cm |
| Accuracy | ± 2.0 %(FS) |
| Conductivity specifications:- Conductivity range | 0.000µS/cm ~ 1000mS/cm |
| Conductivity resolution | 0.001µS/cm |
| Conductivity accuracy | ± 1.0% (FS) |
| Resistivity specifications:- Resistivity range | 5.00Ωcm~ 100.0MΩcm |
| Dissolved Oxygen Range | 0.00-20.00mg/L |
| Dissolved Accuracy | ±0.2mg/L |
| Dissolved Resolution | 0.01 mg/L |
| Saturation of Oxygen Range | 0.0-200.0% |
| Dissolved Oxygen Range | 0~20 mg/L or 0~200 % |
| Dissolved Oxygen Sensor | Optical DO sensor |
| Dissolved Oxygen Accuracy | 0.01 |
| Dissolved Oxygen Sensor Drift | <1 % per year |
| Dissolved Oxygen Range | 0 to 20mg/L or 0 to 200% |
| Sensor | Optical DO sensor |
| DO Accuracy | 0.03 |
| Dissolved Oxygen Sensor | Drift <1% per year |
| Ion Concentration |
|
||||||||||||||||||||||||||||
| mV |
|
||||||||||||||||||||||||||||
| Temperature |
|
||||||||||||||||||||||||||||
| Other |
|
Labnics Benchtop Multi-Parameter Meter offers both automatic and manual temperature compensation, ensuring precise measurements. They include data analysis functions for detailed examination and interpretation of results. Our units include a touchscreen for simple and intuitive operation. These meters feature automatic electrode diagnosis to continuously monitor electrode conditions. They offer a data storage function for saving and managing measurement records.
| pH Specifications:- Range | (-2.000~20.000) pH |
| Accuracy | ±0.002pH |
| Resolution | 0.1, 0.01, 0.001pH, Selectable |
| Calibration Points | 1 to 5 points |
| Test parameters | pH, conductivity, temperature, salinity, TDS, and dissolved oxygen |
| pH Range | -2.000 to 20.000 pH |
| pH Accuracy | ±0.002pH |
| pH Resolution | 0.1, 0.01, 0.001pH, Selectable |
| Test Parameters | pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal. /DO Saturation) |
| pH | Range: -2.000 to 20.000 pH<br/> Resolution: 0.1, 0.01, 0.001 pH<br/> Accuracy: ±0.002 pH<br/> Calibration Points: Up to 6<br/> Standard Customization: Yes<br/> Calibration Reminder: Yes<br/> Slope Limit: Yes |
| Calibration Solutions | NIST, GB, DIN, USA, MERK, JIS buffers |
| mV/ORP | Range: -2000.00 to 2000.00 mV<br/> Resolution: 0.1, 0.01 mV<br/> Accuracy: reading whichever is greater<br/> Calibration Points: 1 custom point (relative mV) <br/> EH ORP Mode: Yes |
Labnics Multiparameter Conductivity Meter are designed to measure multiple parameters for comprehensive analysis. They feature imported sensors and advanced optical system for precise measurement. They offer various conductivity ranges for accurate sample readings. They are constructed with durable materials to withstand harsh environments. Our meter is ideal for water quality analysis, environmental monitoring and industrial processes.
| pH |
|
||||||||||||||||||
| mV |
|
||||||||||||||||||
| Conductivity |
|
||||||||||||||||||
| TDS |
|
| Absorbance Detection Range | 0 to 3Abs |
| Absorbance Resolution | 0.001Abs |
| Optical Path Stability | ≤ ±0.005Abs/30min |
| Operation Repeatability | ≤ ±0.01Abs |
| pH Range | 2.000~20.000 pH |
| pH Accuracy | ±0.002pH |
| pH Resolution | 0.1, 0.01, 0.001pH, selectable |
| Calibration Points | 1 to 5 points |
| Model no | NPCA-100 |
| Detection method | Electrode method |
| Measuring range | 0 ~ 14 pH; normal temperature (0 ~ 80 ℃) |
| Resolution | 0.01ph |
| pH measuring range | 0.00 ~ 14.00 pH |
| pH resolution | 0.01 pH |
| pH accuracy | ± 0.01 pH |
| Temperature measuring range | 0°C~100°C |
| pH Specifications:- Range | (-2.000~20.000) pH |
| Accuracy | ±0.002pH |
| Resolution | 0.1, 0.01, 0.001pH, Selectable |
| Calibration Points | 1 to 5 points |
| Model name | NPOM-100 |
| Measuring Range | -2.00~20.00pH |
| Display Resolution | 0.01pH |
| Measurement Accuracy | ± 0.01pH |
| Measurement range | 0~1100 NTU, 0~275 EBC, 0~9999 ASBC |
| Measurement accuracy | ±2% of reading (0~500 NTU), ±3% (501~1100 NTU) |
| Measurement resolution | 0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU) |
| Sample volume | 30 ml |
| Turbidity Range | 0.000 to 20.00 NTU, 20.01 to 200.0 NTU, 200 to 2000 NTU, 2001 to 4000 NTU |
| Accuracy | ≤ ±6% |
| Resolution | 0.01NTU, 0.1NTU, 1NTU |
| Repeatability | ≤ 0.5% |
| Parameters | Conductivity, Temperature, Resistivity, TDS, and Salinity |
| Conductivity mode | <table cellspacing=0 border=1> <tr> <td style=min-width:50px>Range </td> <td style=min-width:50px>0.000 µS/cm to 3000 mS/cm</td> </tr> <tr> <td style=min-width:50px>Resolution </td> <td style=min-width:50px>0.001 µS/cm minimum, changes with ranges</td> </tr> <tr> <td style=min-width:50px>Accuracy </td> <td style=min-width:50px>± 0.5% FS</td> </tr> <tr> <td style=min-width:50px>Reference Temperature </td> <td style=min-width:50px>5, 10, 15, 18, 20, 25 ºC</td> </tr> <tr> <td style=min-width:50px>Calibration Points </td> <td style=min-width:50px>Up to 5</td> </tr> <tr> <td style=min-width:50px>Standard Recognition </td> <td style=min-width:50px>146.5 µS/cm, 1408 µS/cm, 12.85 mS/cm, 111.3 mS/cm</td> </tr> </table> |
| Resistivity Mode | <table cellspacing=0 border=1> <tr> <td style=min-width:50px>Range </td> <td style=min-width:50px>5.00 Ω ·cm to 100.00 M Ω ·cm</td> </tr> <tr> <td style=min-width:50px>Resolution </td> <td style=min-width:50px>0.01 Ω ·cm minimum</td> </tr> <tr> <td style=min-width:50px>Accuracy </td> <td style=min-width:50px> ± 0.5% FS</td> </tr> </table> |
| TDS Mode | <table cellspacing=0 border=1> <tr> <td style=min-width:50px>Range </td> <td style=min-width:50px>0.000 mg/L to 1000 g/L</td> </tr> <tr> <td style=min-width:50px>Resolution </td> <td style=min-width:50px>0.001 ppm minimum, changes with range</td> </tr> <tr> <td style=min-width:50px>Accuracy </td> <td style=min-width:50px>±0.5% FS</td> </tr> </table> |
| pH Range | (-1.00) to 15.00 |
| pH Accuracy | ±0.01 |
| pH Calibration Points | 1 to 3 points |
| pH Buffer Options | pH 4.01/6.86/7.00/9.18/10.01 |
| Measurement Range | 0 to 35500mg/L(ppm) |
| Measurement Principle | Ion electrode method |
| Resolution | 0.01mg/L(ppm) |
| Basic Error | ± 2.5% |
Labnics Online Ozone Meter detects ozone levels accurately across a wide range of concentrations. They include manual and automatic temperature compensation modes for reliable results. These ozone meter comes with built-in alarm functions for immediate alerts on fluctuating values. They enable efficient and reliable data transfer, ensuring smooth integration with other systems. Our units feature a large screen display for clear and easy interpretation of results.
| Measurement Range | 0 to 20mg/L<br/> 0 to 20 ppm |
| Measurement Principle | Potentiometric method |
| Resolution | 0.001mg/L;0.001ppm |
| Basic Error | ±1%F. S |
Labnics Digital pH Meter includes 3-point calibration to ensure reliable and consistent pH measurements. They include a digital pH sensor for obtaining precise results. The replaceable pH electrode allows to change of the degraded electrode for easy maintenance. Their stable operation enhances to function without fluctuations, assuring accurate data. Our Digital pH Meter eliminates vibrations, for precise readings by minimizing errors.
| pH Range | 0.00 to 14.00 pH |
| pH Accuracy | ± 0.01 pH |
| pH Resolution | 0.01 pH |
| Calibration Points | Three points (4.00, 6.86, 9.18) |
