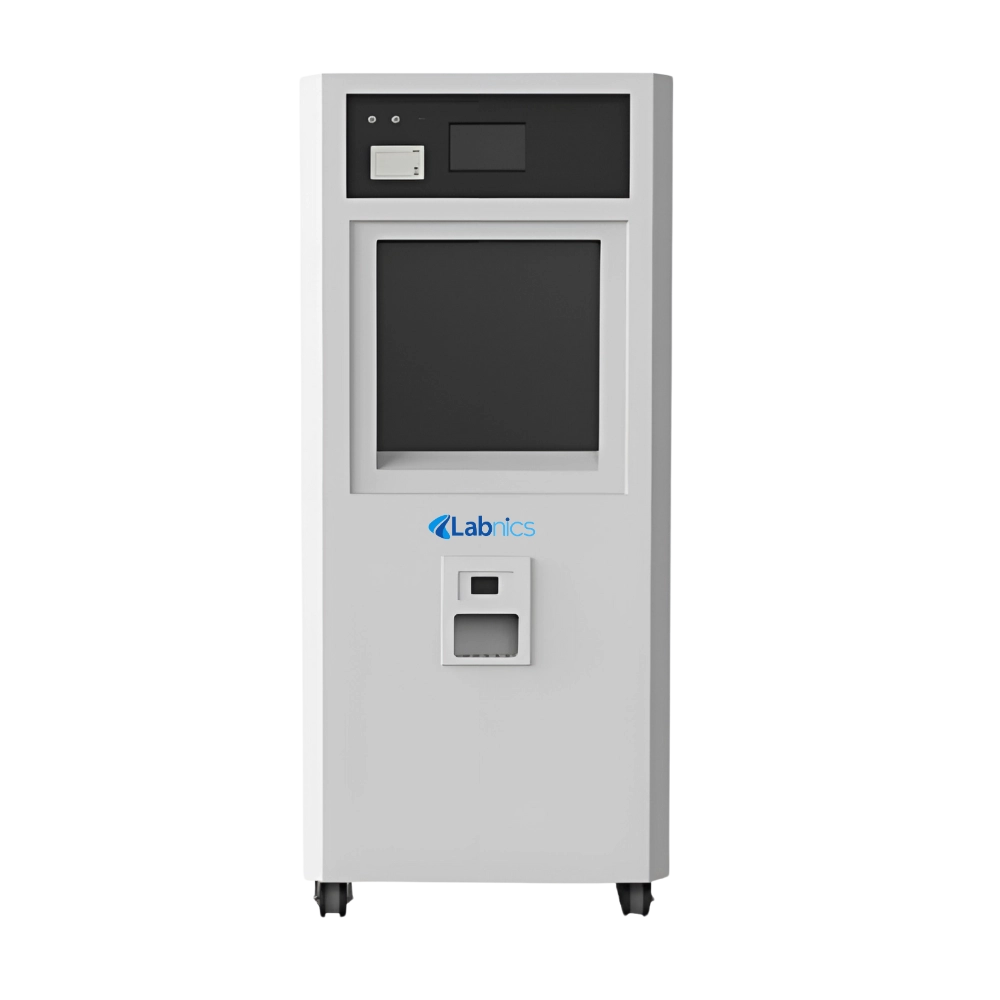

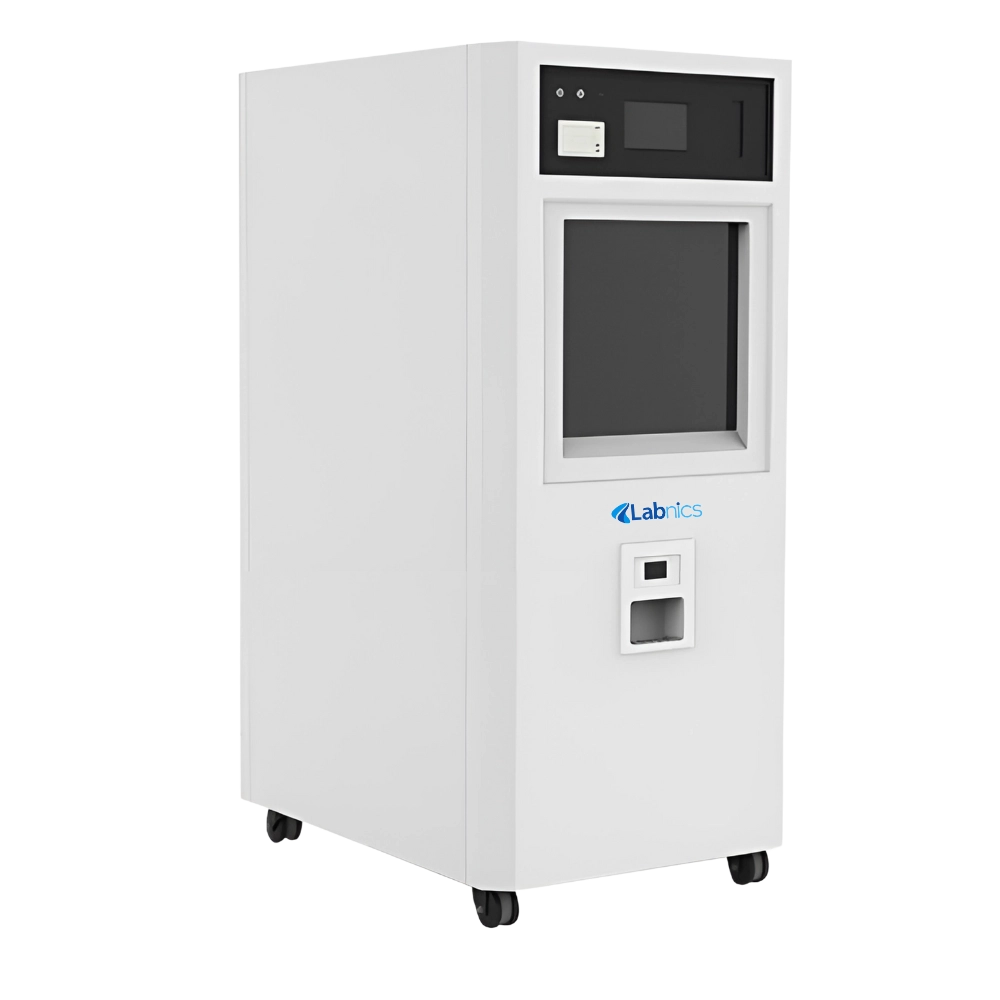

Low Temperature Plasma Sterilizer NLTPS-103
Low Temperature Plasma Sterilizer NLTPS-103 offers a 160L capacity, designed to effectively sterilize using H₂O₂ vapor. It operates at a low temperature of 50°C ± 5°C, ensuring safe sterilization. Our unit features a two-layer aluminum alloy punching plate that maximizes loading capacity and space efficiency. It includes a purification system that ensures even diffusion of H₂O₂ vapor throughout the chamber. This sterilizer comes with an integrated biological incubator for convenient monitoring during the process.
Capacity | 160L |
Type | Cassette |
Sterilization temperature | 50°C ± 5℃ |
Sterilization agent | 60% H2O2 |
Sterilization cycle |
Fast sterilization: ≤25 min Standard sterilization: ≤35min Enhanced sterilization: ≤55min |
H2O2 filling method |
Cassette, 12 vials of H2O2/cassette New cassette: Automatic delivery Used cassette: Automatic ejection |
Master controller | PLC control |
Display | 7-inch LCD touchscreen |

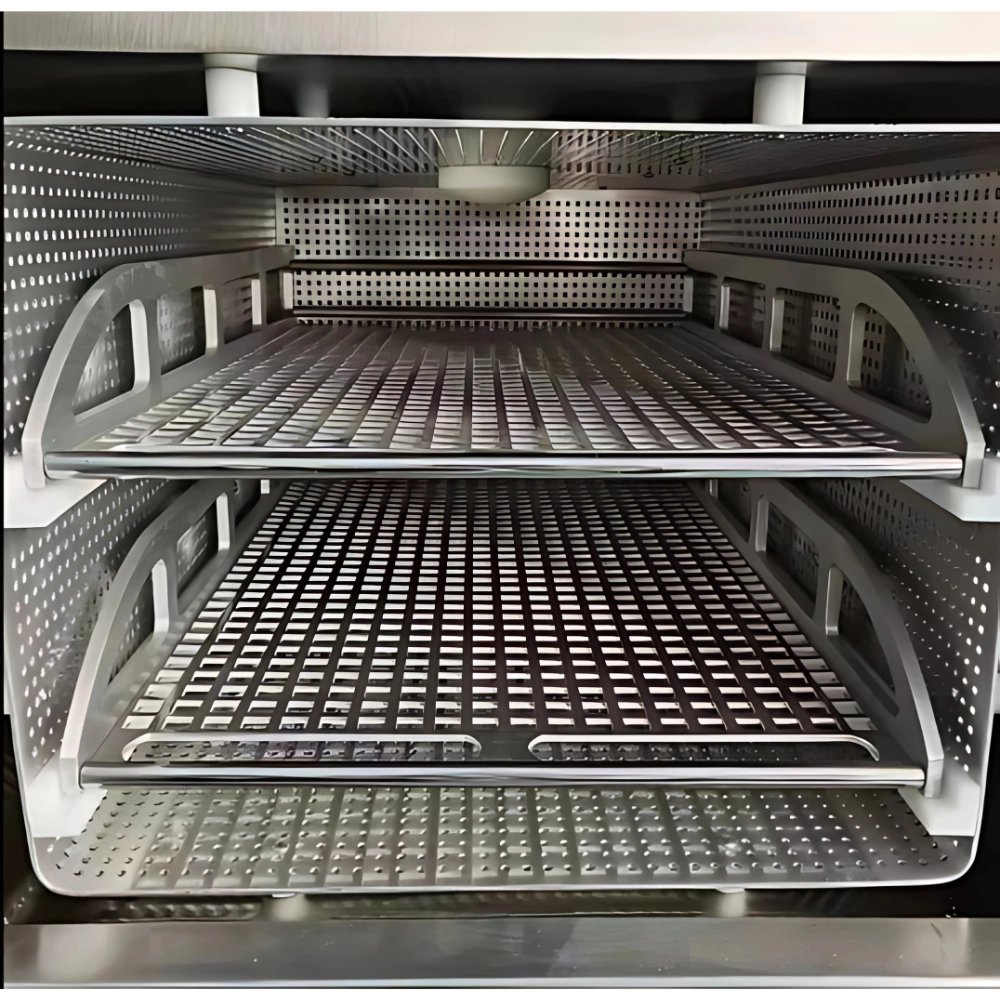

Loading method | 2 layers of aluminum alloy punching plate loaded with sterile items |
Test methods | Biological monitoring of Bacillus subtilis and Bacillus stearothermophilus |
Biological indicator cultivator | Yes |
Alarm system | High & low temperature alarming system |
Door | Automatic vertical sliding door with anti-pinch function |
Door number | Single-door/Double-door |
Power consumption | 500W |
Power supply | 110/220V, 50/60Hz |
Chamber dimension | 760×460×460mm |
External dimension | 950×780×1670mm |
Packaging dimension | 1820×820×1180mm |
Gross weight | 289kg |
Low Temperature Plasma Sterilizer NLTPS-103 is used to eliminate pathogens without exposing materials to high heat. It is used across various industries, including healthcare, food, pharmaceuticals, electronics, and aerospace, to effectively decontaminate sensitive materials.
Labnics Low Temperature Plasma Sterilizers use ionized gas for safe and effective sterilization. They maintain precise thermal control to ensure consistent disinfection. These units include safety features such as pressure and temperature monitoring, leak detection, and automatic shut-off. They are fully automated, ensuring reliable sterilization with minimal human intervention. Our low temperature plasma sterilizers come with an LCD touchscreen display for easy and user-friendly operation.
Maximum central temperature | 825℃±50℃ |
Low grade temperature | 480℃ |
Warm-up time | 20 minutes to maximum temperature |
Sterilization time | 5 to 7 seconds |
