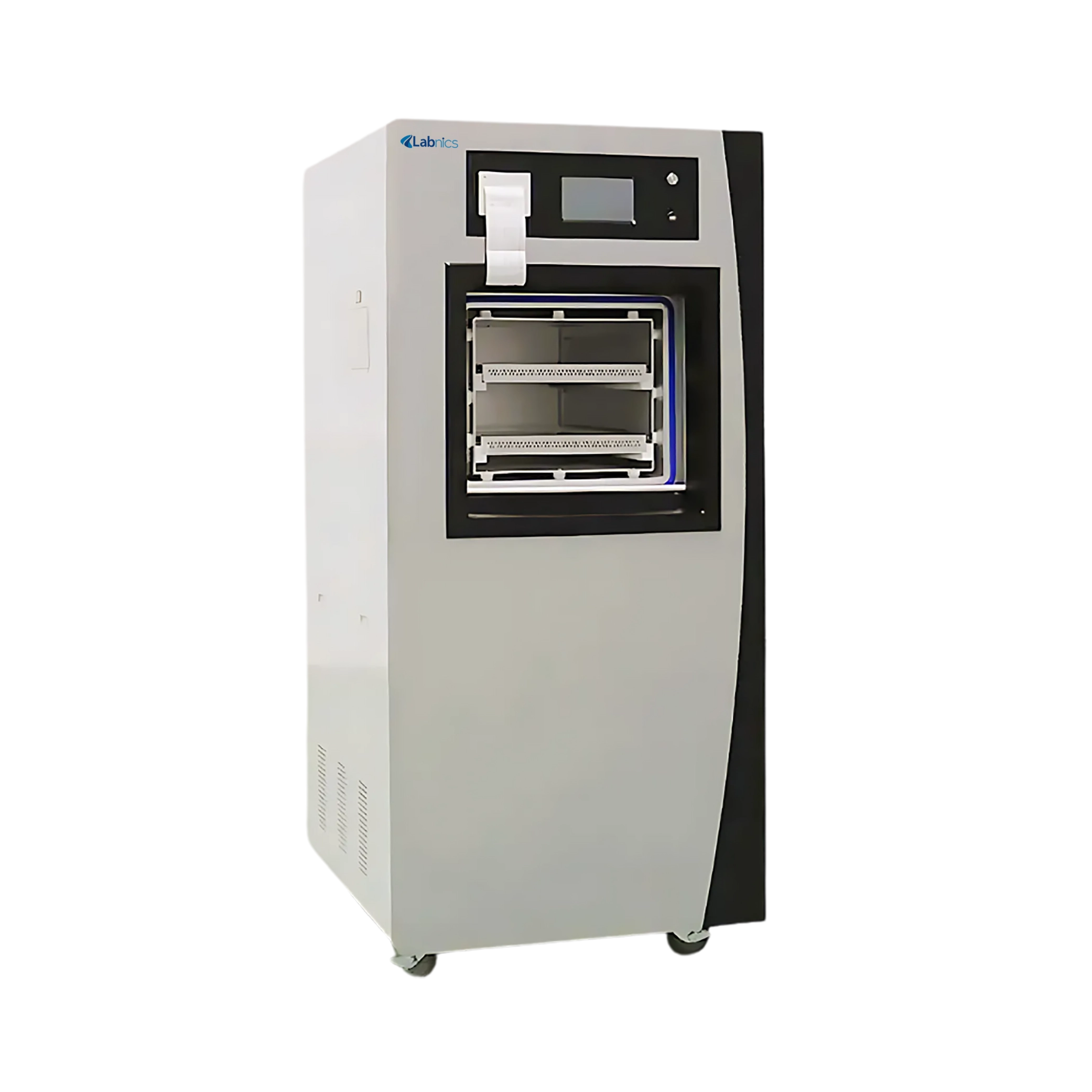

Low Temperature Plasma Sterilizer NLTPS-201
Low Temperature Plasma Sterilizer NLTPS-201 operates in a sterilization temperature range of 45°C to 60°C with a 135L chamber capacity. It features ≥20mm suction cotton insulation for excellent heat retention and fire resistance. Our unit uses 60% H₂O₂ as the sterilizing agent for microbial destruction. It includes an air filter with an accuracy of ≤0.2μm to remove contaminants during sterilization. This sterilizer comes with an LCD touchscreen for easy monitoring of test parameters.
Capacity | 135L |
Type | Capsule |
Sterilization temperature | 45 to 60℃ |
Sterilization agent | 60% H₂O₂ |
Sterilization cycle |
Fast sterilization: ≤30 min Standard sterilization: ≤50min Enhanced sterilization: ≤60min |
Sterilization time | 30 to 60mins |
Working pressure | -50pa |
Highest anti-pressure value | 10pa |
Vacuum pump system | Yes |
Installation environment temperature | 5 to 45°C |
Heating method | Electric |
Master controller | Siemens PLC control |
Display | 7-inch LCD touchscreen |
Loading method | 2 layers of aluminum alloy punching plate loaded with sterile items |
Chamber material | 304 Stainless steel/ 5052 aluminum alloy |
Carton material | Carbon steel baking plastic powder and ABS |
Electrode material | 5052 Aluminum alloy |
Sealing door material | 5052 Aluminum alloy |
Alarm system | High & low-temperature alarming system |
Door | Automatic vertical sliding door with anti-pinch function |
Door open mode | Using mandrel drive electric lift door |
Foot switch | Yes |
Printer | Yes |
Operation height | ≤160cm |
Air filter accuracy | ≤0.2µm |
Power consumption | 3.5kW |
Power supply | AC220V, 50Hz |
Chamber dimension | 750×450×450mm |
Packaging dimension | 1270×910×1880mm |
Net weight | 310kg |
Gross weight | 360kg |
Low Temperature Plasma Sterilizer NLTPS-201 is used to eliminate harmful microorganisms at low temperatures, preventing damage to sensitive materials while ensuring thorough disinfection. It is commonly applied in hospitals, clinics, laboratories, pharmaceuticals, and electronics.
Labnics Low Temperature Plasma Sterilizers use ionized gas for safe and effective sterilization. They maintain precise thermal control to ensure consistent disinfection. These units include safety features such as pressure and temperature monitoring, leak detection, and automatic shut-off. They are fully automated, ensuring reliable sterilization with minimal human intervention. Our low temperature plasma sterilizers come with an LCD touchscreen display for easy and user-friendly operation.
Maximum central temperature | 825℃±50℃ |
Low grade temperature | 480℃ |
Warm-up time | 20 minutes to maximum temperature |
Sterilization time | 5 to 7 seconds |
