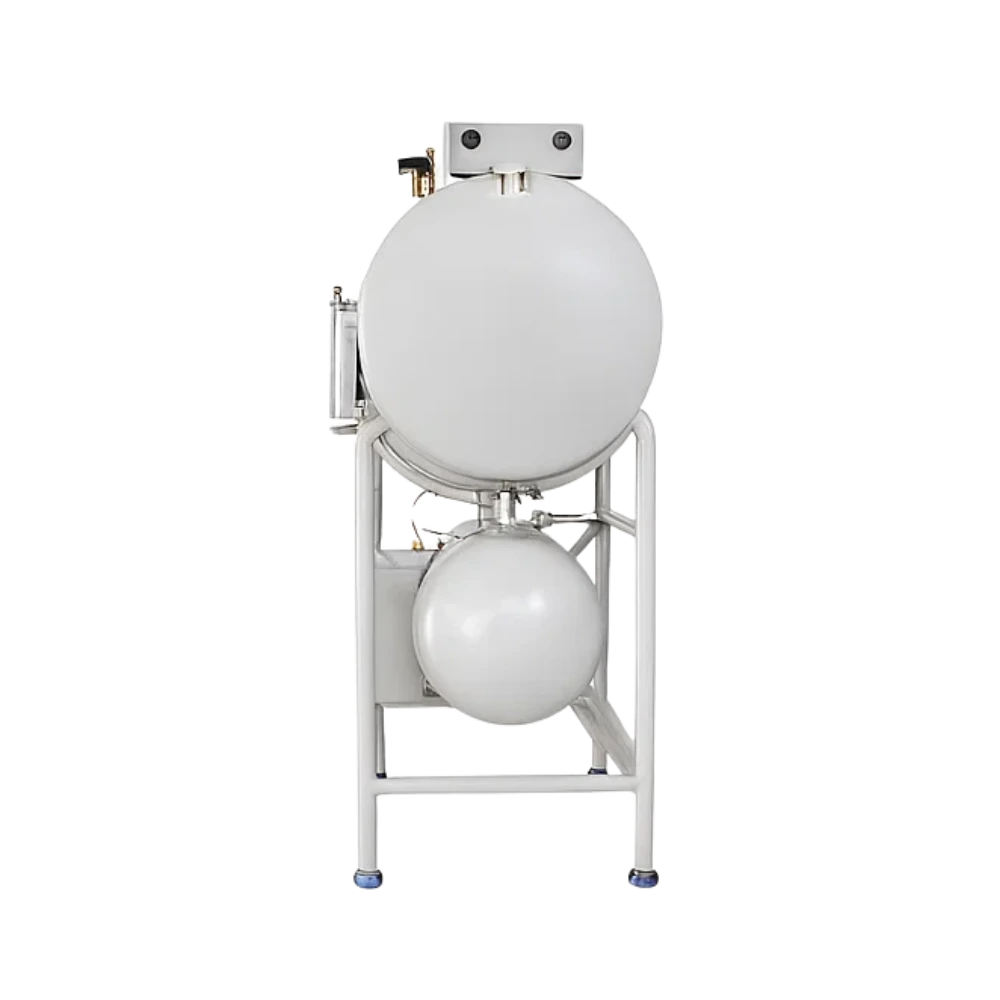

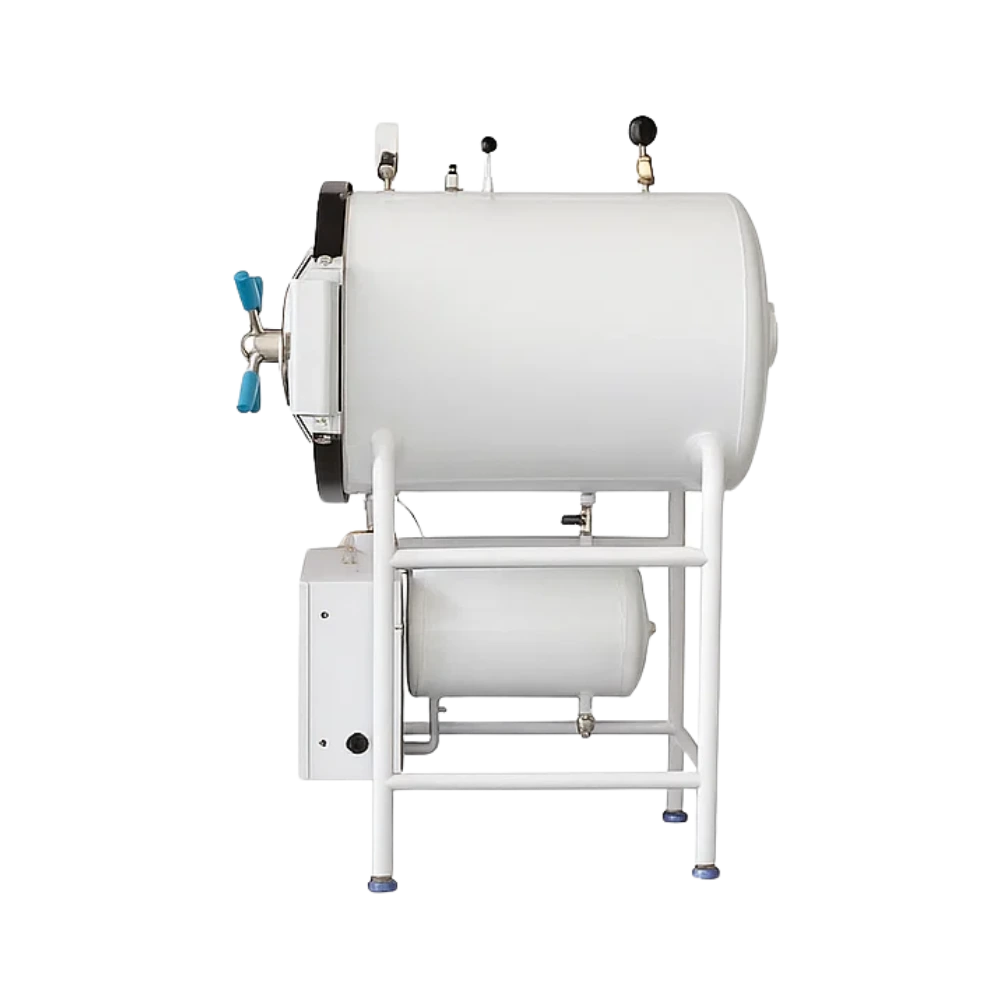

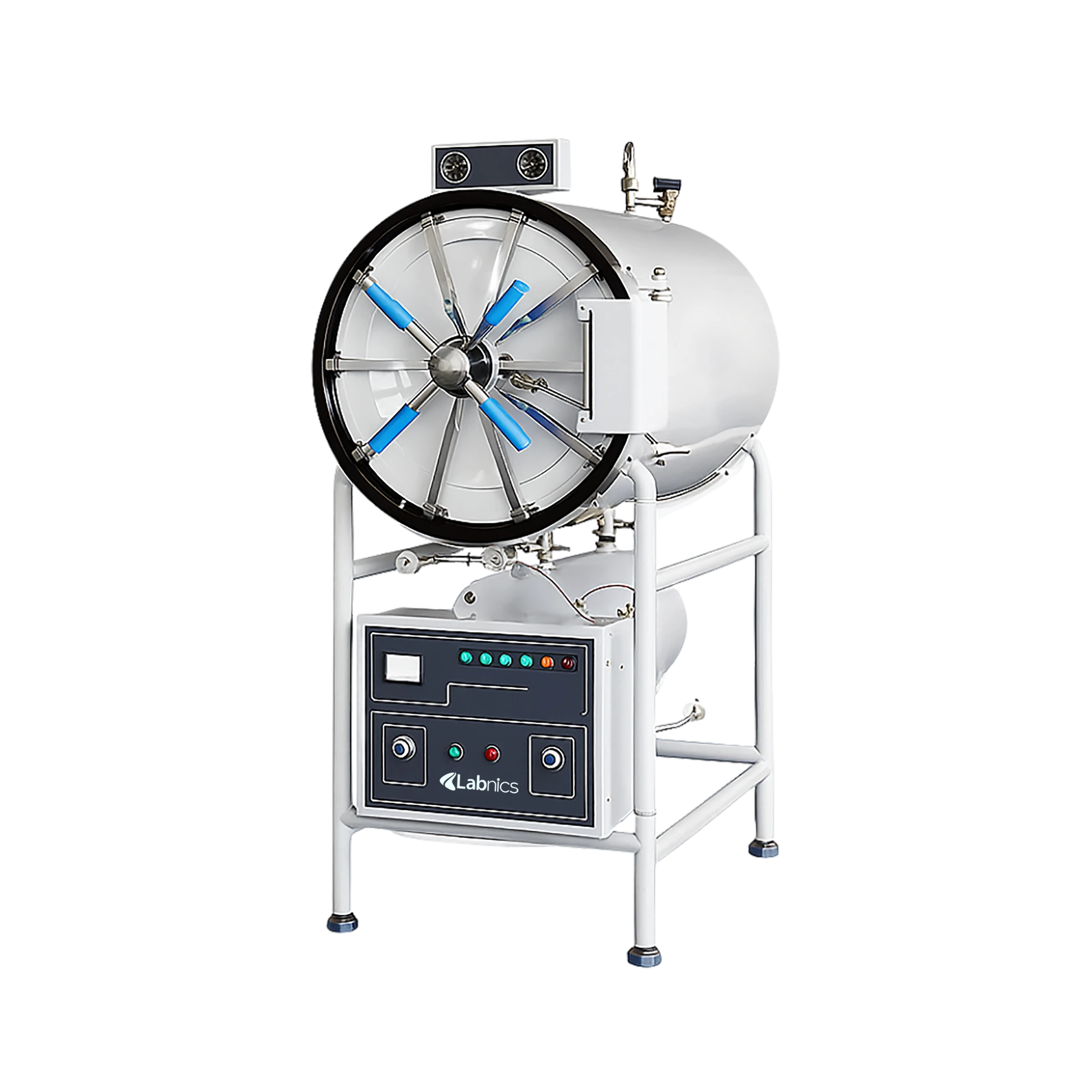

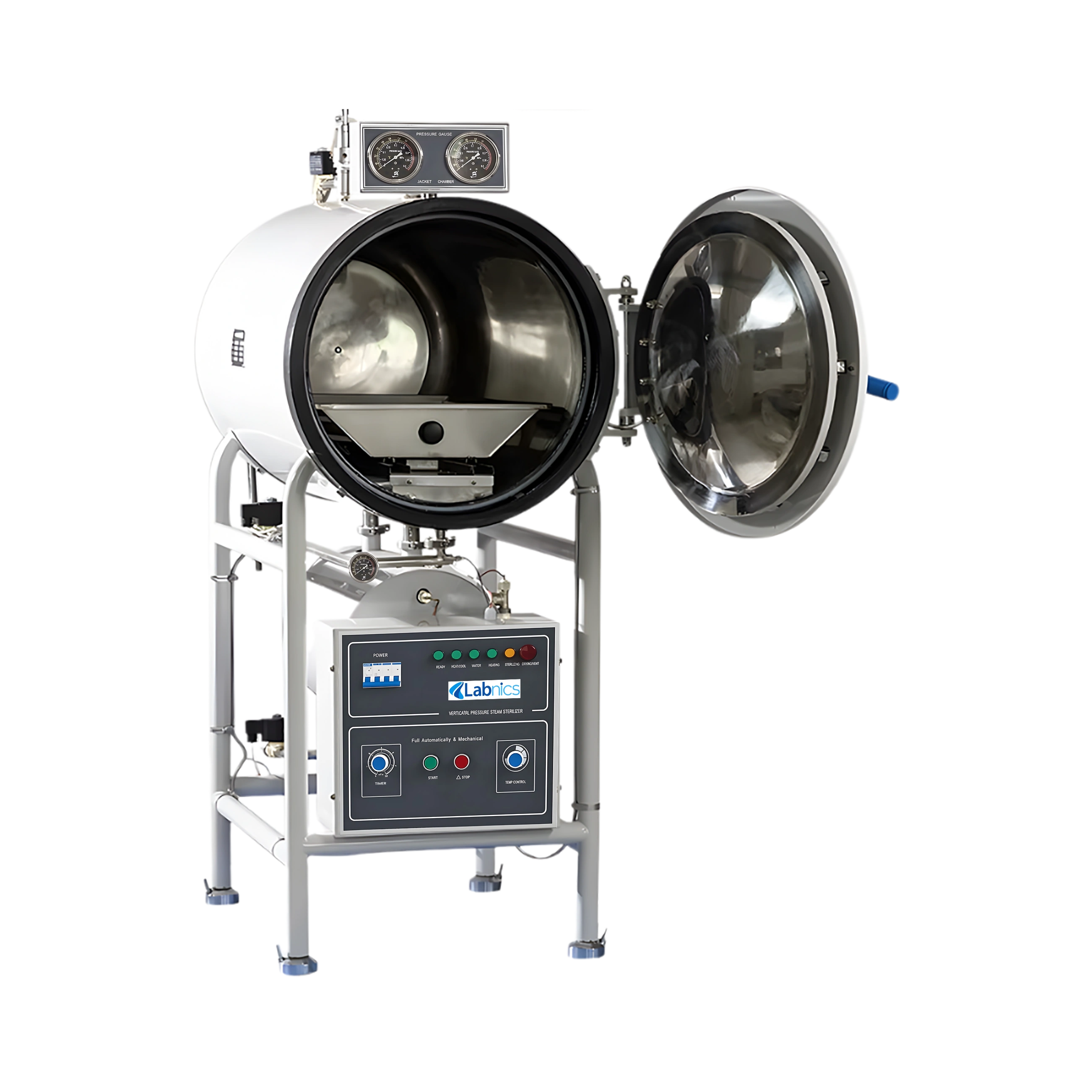

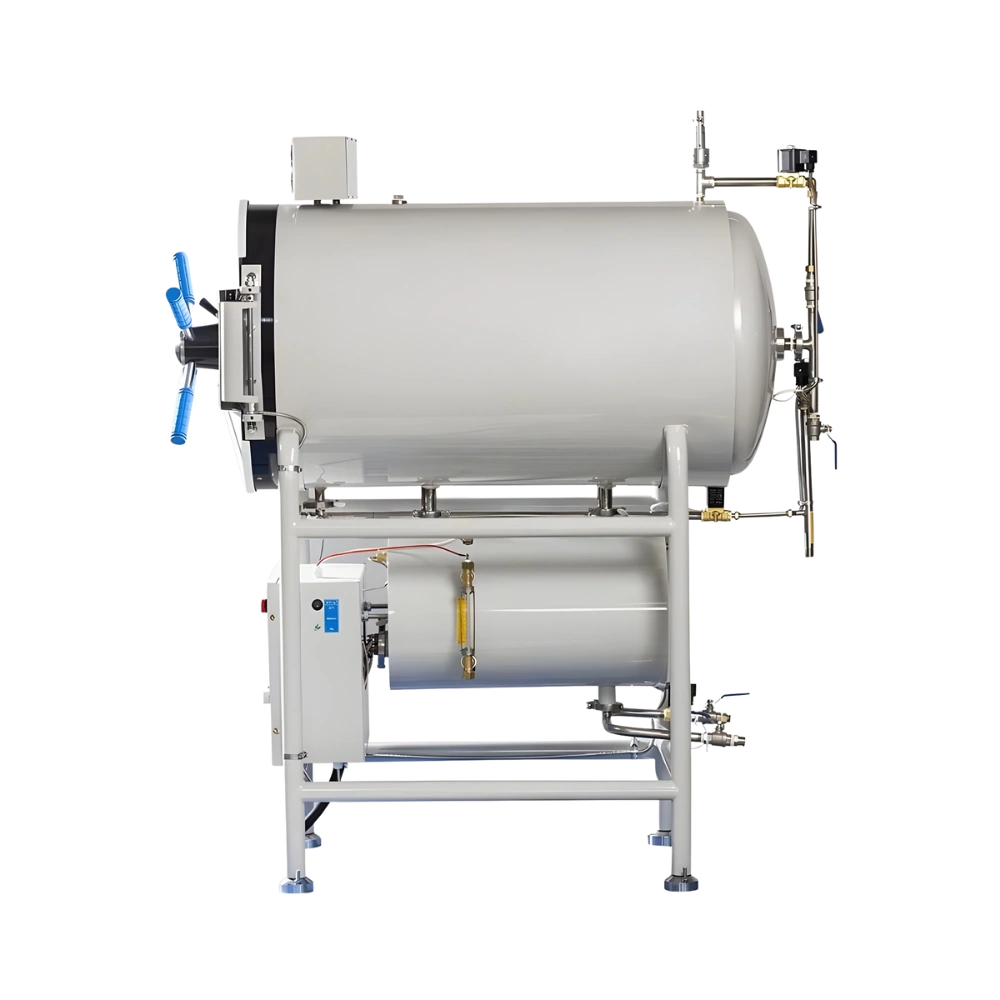

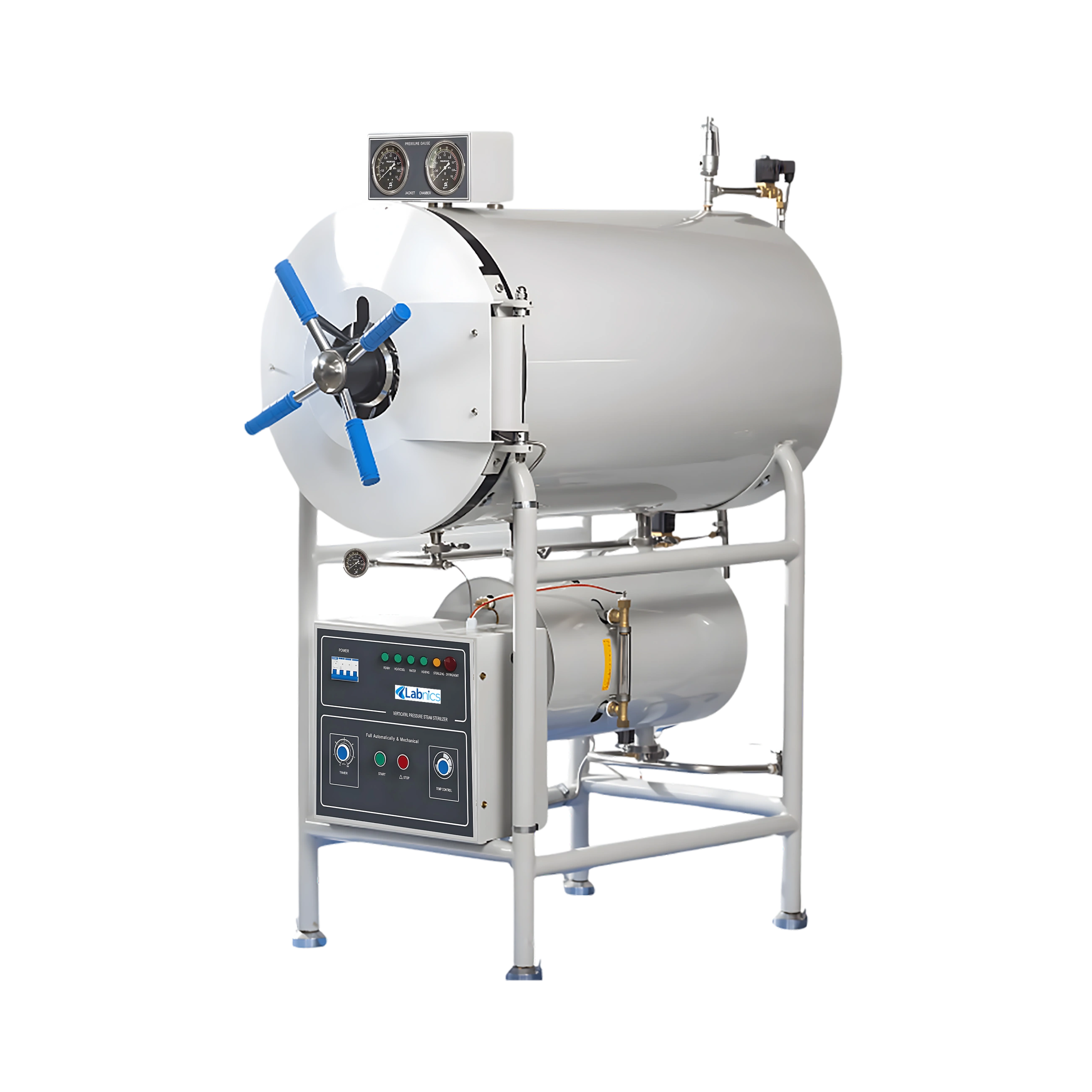

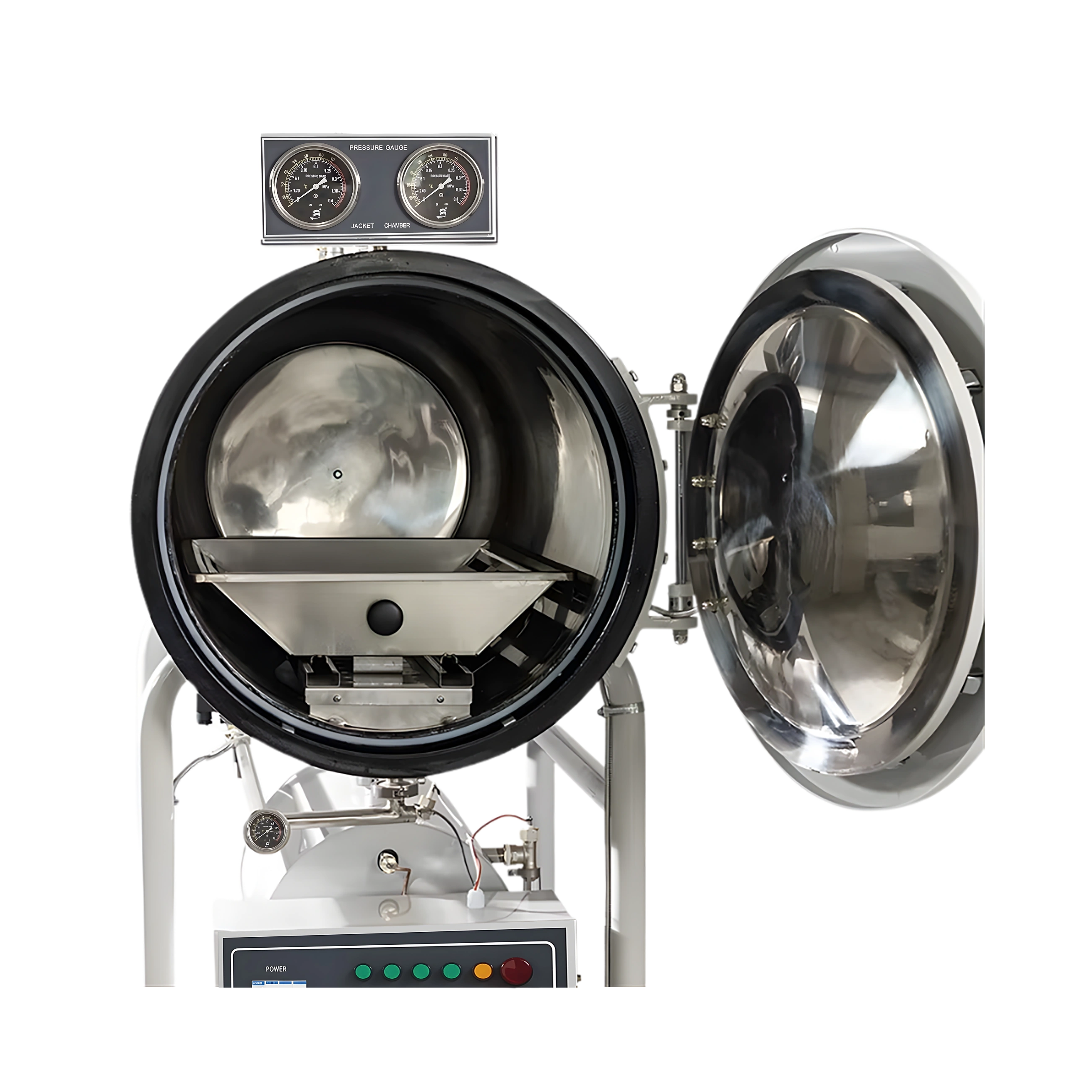

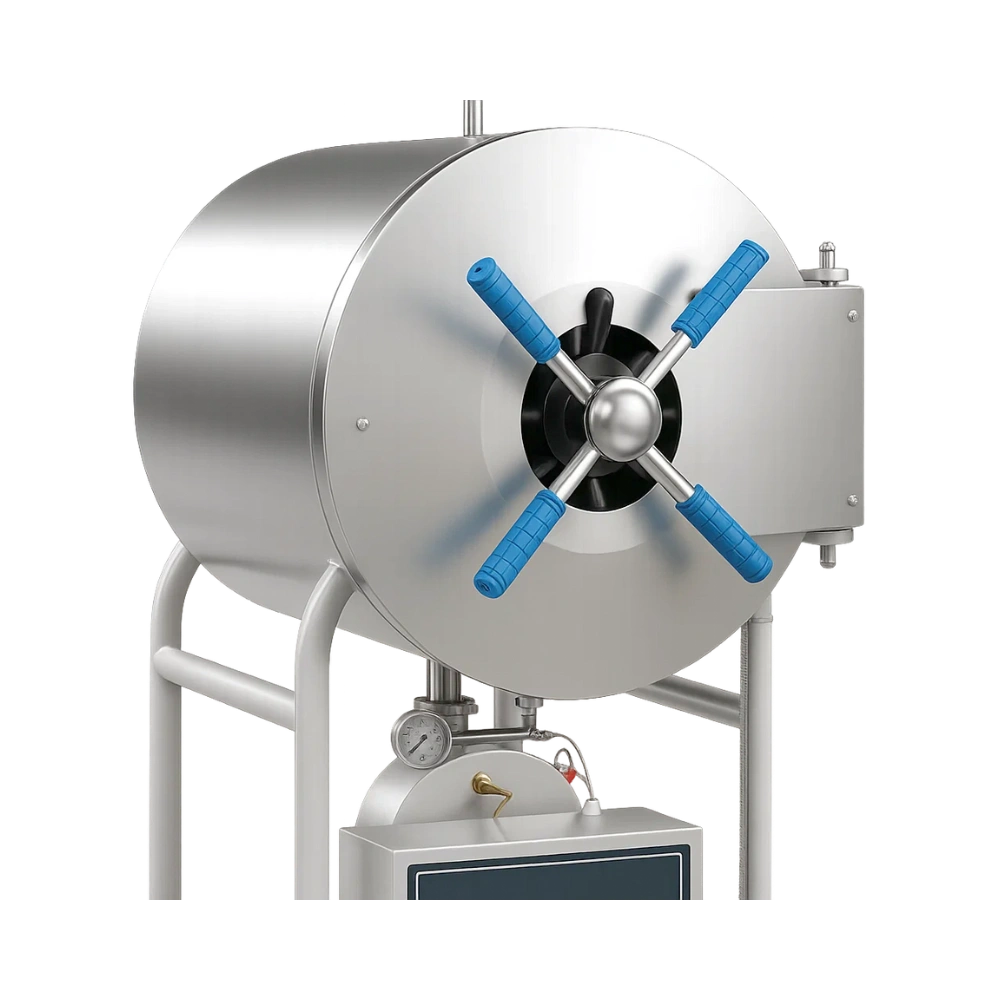

Horizontal Autoclave NHA-103 is a cyclindrical, horizontal pressure steam sterilizer with an automatic pressure-temperature controller. These front-loading autoclaves combine of high temperature and pressure to bring about decontamination and sterilization of biological waste, culture media, instruments and lab ware. The whole body is a highly durable stainless steel with an installed electric heater for more efficient steam production and advanced vacuum for enhanced drying of discarded material. It is user-friendly and play important role in sterilization procedures across various Hospitals, Pharmaceutical companies, Biopharma and Microbiology laboratories etc.
$11,513.00
| Capacity | 400 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1100 mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Heat Fluctuation | ≤ ± 1°C |
| Time for sterilization | 0 - 60 min |
| Time for drying | 0 - 60 min |
| Adjustable temperature range | 105°C - 134°C |
| Power | 18 kW/ AC220V, 50Hz |
| Overall Dimension | 1430 × 880 × 1830 mm |
| Packing Dimension | 1600 × 1050 × 2100 mm |
| Net Weight | 420 kg |
| Gross Weight | 530 kg |
Employed for sterilization in microbiological, pharmaceutical, clinical and hospital labs.
| Accessories No | Name |
| 1 | Pressure gauge |
| 2 | Water level controller |
| 3 | Heating element |
| 4 | Wire baskets |
| 5 | Silicon gasket for the lid |
| 6 | Soft tube |
| 6 | Spanner |
| 6 | Power cord |
1: What is the chamber capacity and build material of the Horizontal Autoclave NHA-103?
Our Horizontal Autoclave NHA-103 has a spacious 400-liter chamber and is constructed using high-grade 304 stainless steel. This ensures excellent durability, corrosion resistance, and long-term performance under repeated sterilization cycles.
2: What key features make the Horizontal Autoclave NHA-103 efficient and safe to use?
The Horizontal Autoclave NHA-103 includes advanced features such as an automatic pressure-temperature controller, LED display with touch-type keys, power cut-off during water shortage, automatic shutdown after sterilization, and vacuum-assisted drying for improved efficiency.
3: What are the temperature and pressure specifications of the Horizontal Autoclave NHA-103?
The Horizontal Autoclave NHA-103 operates at a working pressure of 0.22 MPa and a temperature of 134°C. The temperature is adjustable between 105°C to 134°C, and both sterilization and drying times can be set from 0 to 60 minutes based on user requirements.
4: Where can the Horizontal Autoclave NHA-103 be installed?
The Horizontal Autoclave NHA-103 is ideal for installation in laboratories, hospital sterilization units, pharmaceutical production areas, and biotech facilities that require large-volume, high-efficiency sterilization.
5: What kind of maintenance is required for the Horizontal Autoclave NHA-103?
Routine maintenance of the Horizontal Autoclave NHA-103 involves checking the water level controller, cleaning the chamber, inspecting the gasket, and ensuring all safety features like pressure gauges and heating elements function properly.
Labnics Horizontal Autoclave includes safety features such as over-temperature and pressure protection. They offer automatic-controlled functions for smooth and efficient sterilization operations. These autoclaves have a drying option for the complete drying of items after the process. They include an automatic shutdown control after sterilization for safety. Our units are equipped with LED displays for clear and easy monitoring.
