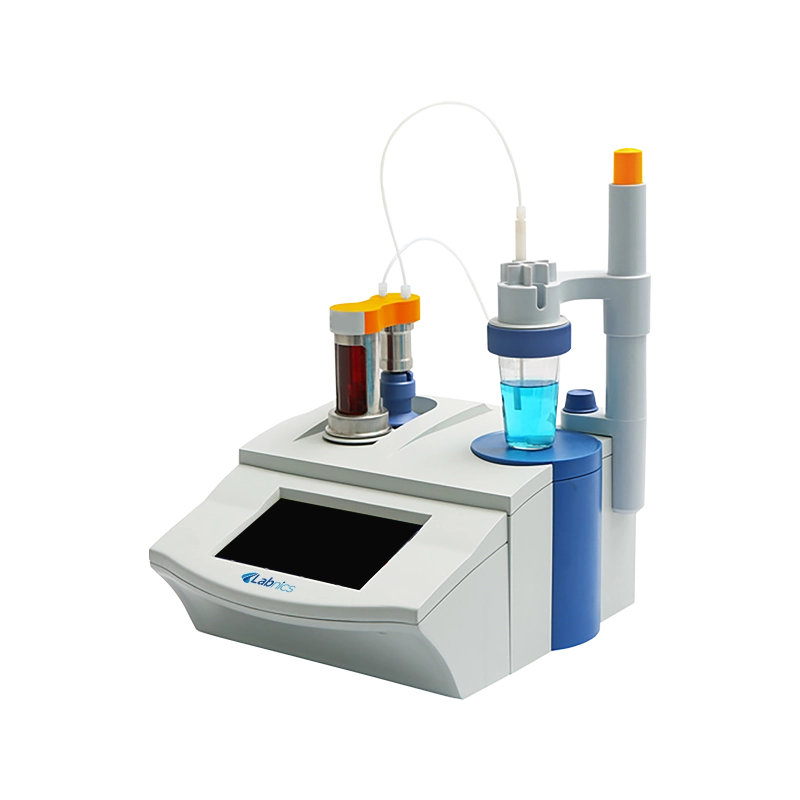

Automatic Potentiometric Titrator NAPT-105
Automatic Potentiometric Titrator NAPT-105
Automatic Potentiometric Titrator NAPT-105 is a compact, automatic titration device to determine the concentration of the target substance in solution by reacting it with a measured amount of another chemical. The 7-inch color touch screen and navigation operation make titration detection simple and convenient. It supports DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Pre-set Endpoint Titration) and MAT (manual titration) titration modes. Adopting a modular design, it is easy to operate with quick results and high precision and accuracy.
Specifications
| Measuring Range | (-1999.0~1999.0) mv; (0.00~14.00) pH |
| Measuring Resolution | 0.1mV; 0.01pH |
| Measuring Accuracy | pH: ± 0.01 pH; mv: ±0.03% FS |
| Measuring Fluctuation | (± 0.3mV ±1bit) /3h |
| Temperature range | (-5.0～105.0) ℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Accuracy | ± 0.3℃ |
| Burette Accuracy | 10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml |
| Burette Resolution | 10ml Burette: 0.33µl; 20ml Burette: 0.66 µl |
| Supplementary Burette Speed | 55 ± 10s (when burette is full scale) |
| Mechanical Resolution of Drive | 1/30000 |
| Power Supply | AC adapter, 110-240V AC input, DC24V output |
| External Dimension (W× D ×H) | 340 × 400 × 400 mm |
| Net Weight | 10 kg |
Features
- ✔ 7-inch color touch screen with smart guide system and display of titration methods, curves and results in detail
- ✔ Replaceable burette (10 ml or 20 ml selectable) with high-accuracy
- ✔ Supports DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Pre-set Endpoint Titration) and MAT (manual titration) titration methods
- ✔ pH calibration and measurement along with 100 user-defined methods, 10 user-defined shortcuts and data storage of 200 titration sets (GLP-compliant)
- ✔ Auto calculation with pre-defined formula with data analysis for user review
- ✔ Equipped with RS-232 communication interface for data transfer and computer control and can be connected to external printer
- ✔ Extra burette driver can be installed (optional)
Applications
It is widely used for macro titration, micro titration, volume setting titration, EP, etc. in Chemical and Pharmaceutical, Dairy, Biotechnology, Fertilizer, Petrochemicals, Waters, Dyes, Paints, Food & Beverage industries as well as in Oil distilleries.
