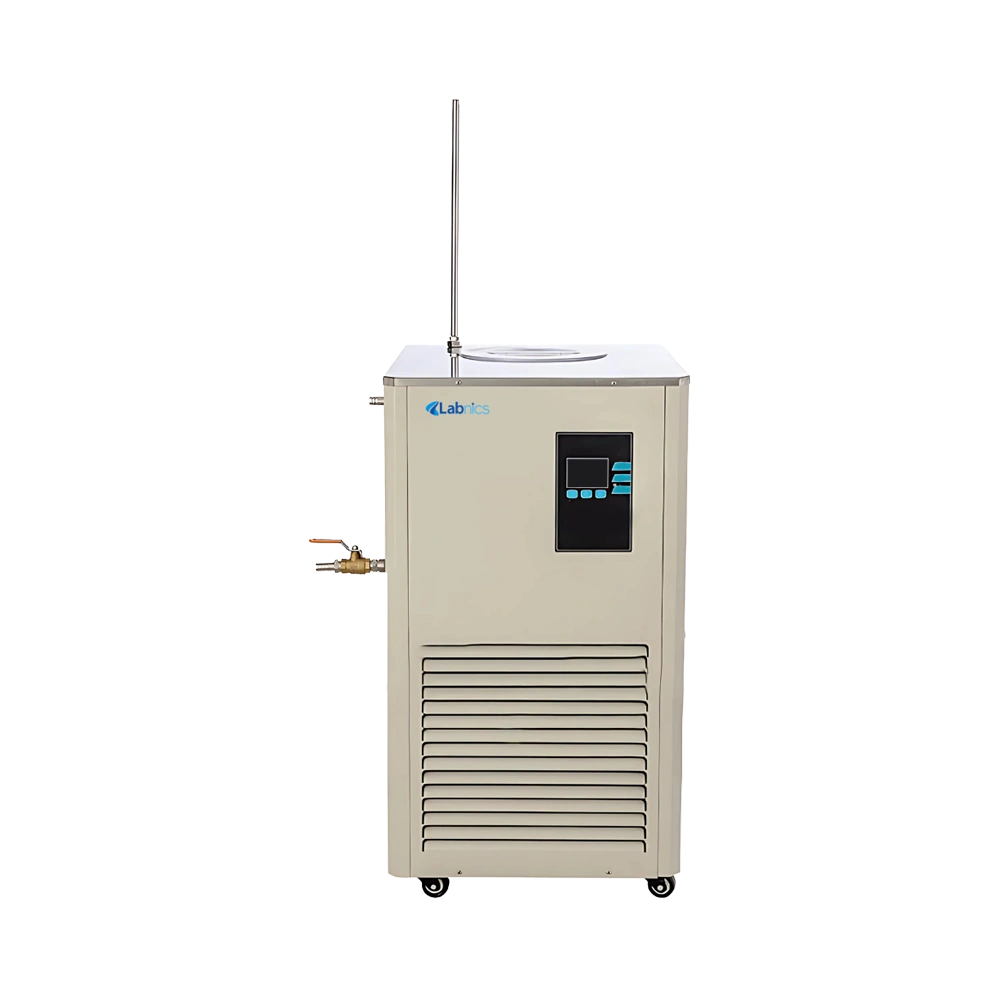

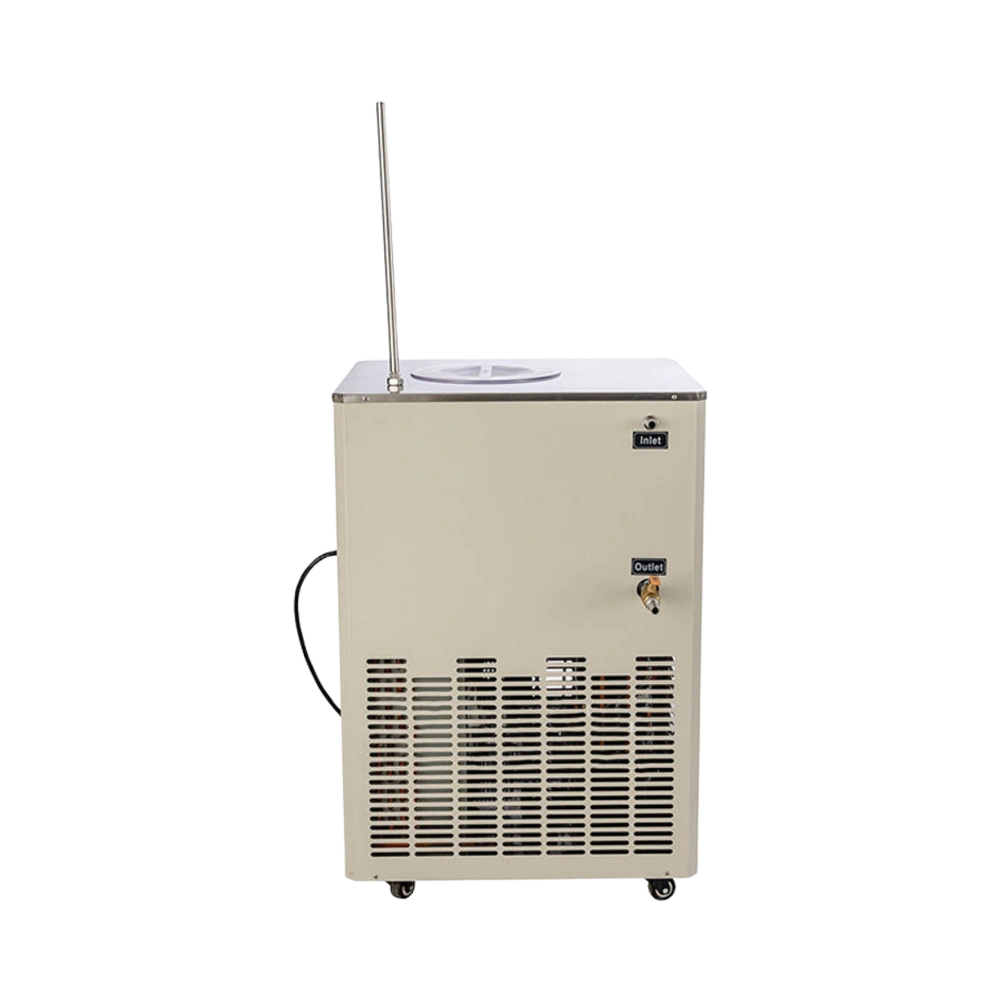

Recirculating Chiller NRC-201 offers a temperature range from -20°C to room temperature, making it suitable for various applications. It achieves a flow rate between 20 to 40 liters per minute, ensuring efficient circulation for consistent thermal transfer. This unit uses an air-cooled closed compressor for stable and reliable cooling. It delivers a high air volume of 1030m³/h for effective heat dissipation. Our chiller includes an LCD screen with key controls for easy and clear operation.
$2,888.00
Specifications
| Tank capacity | About 14L |
| Temperature range | -20°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 6.9㎡ |
| Air volume | 1030m³/h |
| Refrigerant | R22 |

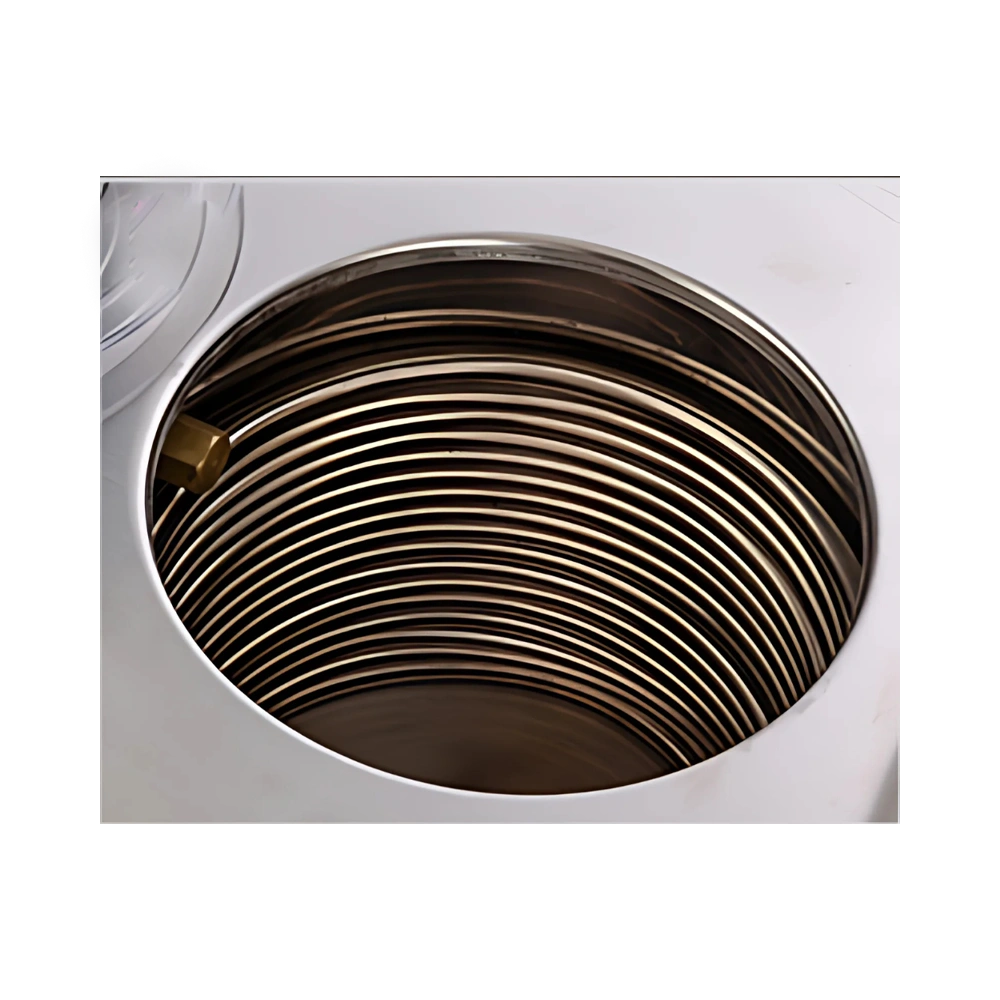

| Condensing coil | Φ10Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 735W |
| Cooling capacity | 2324W |
| Total power consumption | 925W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×200 mm |
| Product dimension | 490×570×(730+500) mm |
| Packaging dimension | 620×500×930 mm |
| Weight | 58 kg |
| Packaging weight | 74.5 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-201
1: What safety features does the Recirculating Chiller NRC-201 offer?
Our Recirculating Chiller includes built-in protections such as delay start, overcurrent protection, and overheating prevention. These features help protect both the chiller and the connected devices.
2: Is the Recirculating Chiller NRC-201 durable for long-term use?
Yes, the body is made from cold-rolled steel with an anti-corrosion coating, offering durability even in chemically demanding environments. It is built for stable performance over time.
3: How much maintenance does the Recirculating Chiller NRC-201 require?
The Recirculating Chiller is designed for low maintenance due to its air-cooled design and high-quality components. Routine inspection and basic care are generally sufficient to ensure smooth operation.
4: How accurate is the temperature control?
Our Recirculating Chiller provides high-precision temperature regulation with an accuracy of ±0.1°C. This ensures stable operation for applications that require consistent low-temperature performance.
5: What kind of temperature sensor does the Recirculating Chiller use?
The Recirculating Chiller is equipped with a PT100 sensor known for its high accuracy and reliability. This ensures stable and consistent temperature readings throughout operation.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
