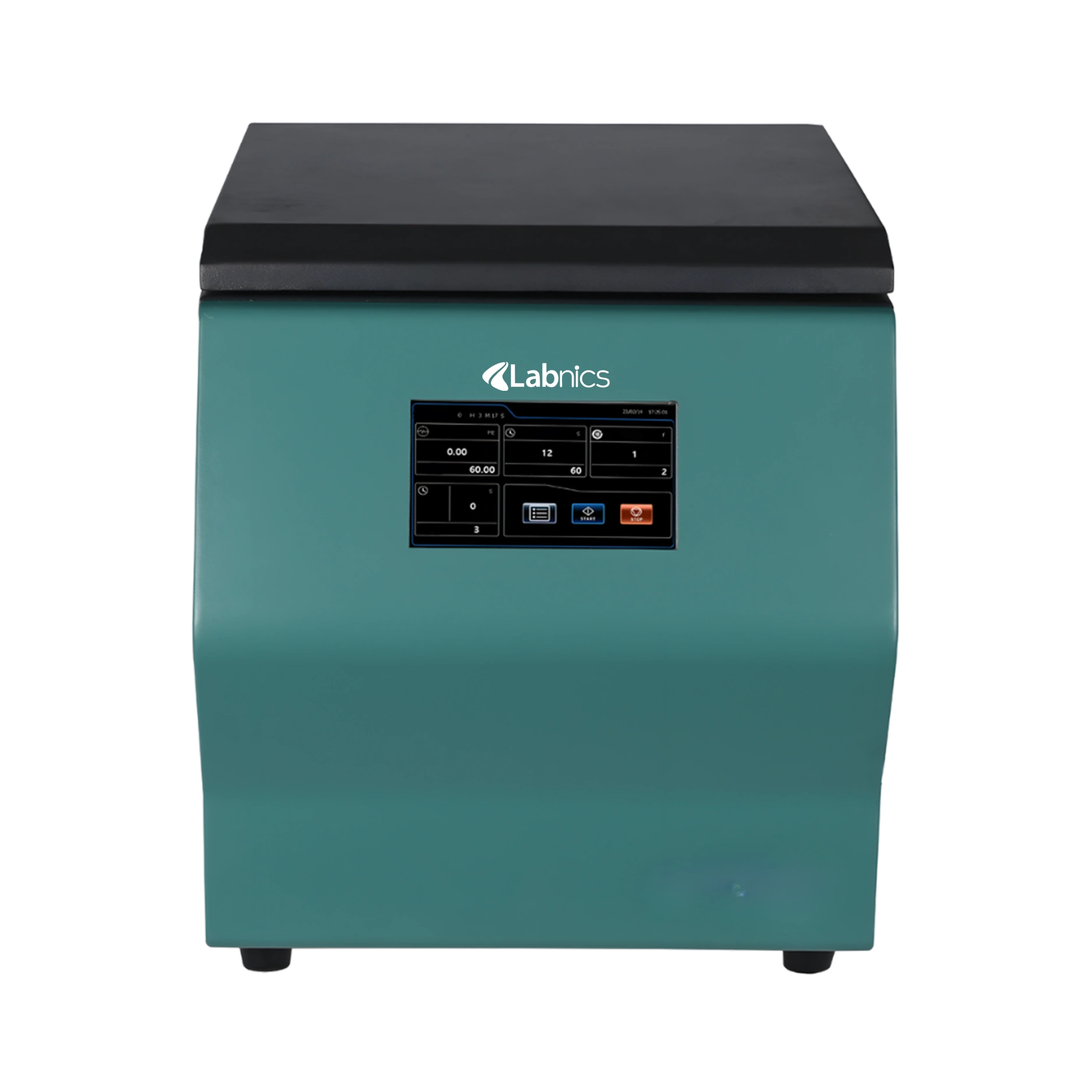

High Throughput Refrigerated Grinder NHRG-101 offers a speed range of 0 to 2100 rpm for precise grinding. It accommodates various sample volumes, making it adaptable to experimental needs. Our unit includes liquid nitrogen pre-cooling, providing excellent temperature control. This grinder allows for different grinding bead sizes and materials for precise results. It operates with low noise, ensuring uninterrupted use in the lab.
$7,700.00
| Sample handling capacity | 96×0.2 to 0.5 ml 48×2 ml 32×5 ml 16×10 to15 ml 4×25 ml 2×50 ml Choose two of them |
| Vibration frequency range | 0 to 70HZ, 0 to 2100rpm |
| Typical crushing time | 155 to 2min |
| Liquid-crystal display | 7-inch touch screen, display working status, convenient and Intuitive operation |
| Number of grinding platforms | More than 2 grinding tanks can be used |
| Feed and discharge size | Maximum feed size: no requirement Final discharge particle size: ≤5µm. |
| Grinding bead material | Hard steel, stainless steel, tungsten carbide, agate, zirconia, ceramic, chrome steel, quartz sand |
| Grinding bead size | 0.1 to 30mm |
| Liquid nitrogen pre-cooling function | Yes |
| Stroke of fixture | 34mm(vertical) |
| Cooling functions | Yes, minimum temperature: -50℃ |
| Temperature accuracy | ±0.5℃ |
| Safety device | Electromagnetic locking |
| Grinding time range | OS 9999S |
| Grinding tank material | Hard steel, stainless steel, tungsten carbide, agate, zirconia, TEfion aluminum alloy. |
| Speed up/speed cut | Maximum speed was reached within 2 seconds. Minimum speed was reached within 2 seconds. |
| Noise level | <50dB |
| Type of protection | IP 30 |
| Dimensions (L×W×H) | 630×330×480mm |
Multi-Tank Support
Adjustable speed
Particle Size Control
IP30 Protection
Easy to operate
High Throughput Refrigerated Grinder NHRG-101 is used for pulverizing and homogenizing. It is widely used in research labs, pharmaceutical, and food industries.
Labnics High Throughput Refrigerated Grinders deliver efficient grinding performance across a wide speed range. They ensure precise and efficient sample grinding with minimal noise. These grinders support multiple sample types for versatile laboratory use. Our units feature advanced cooling systems to maintain sample integrity. They offer an intuitive interface and temperature-sensitive control for easy operation.
