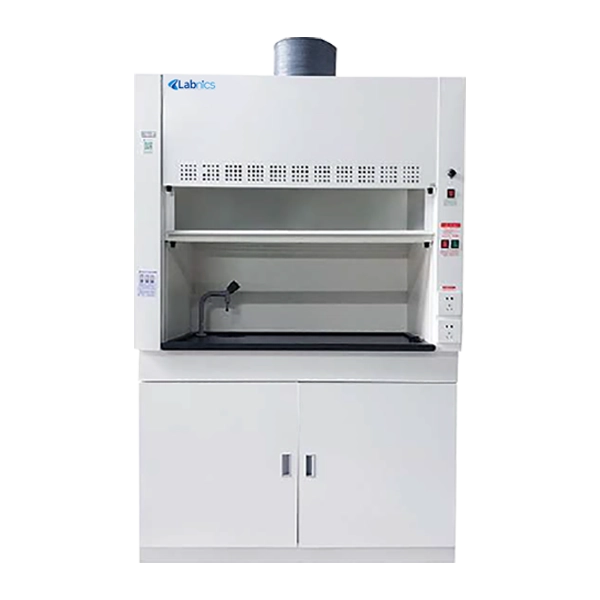

Ducted Fume Hood NDFH-101

Ducted Fume Hood NDFH-101

Ducted Fume Hood NDFH-101 also known as fume cupboard is designed to draw air away from the working area to protect the user from inhaling hazardous air contaminants or other toxic chemicals. The fume hoods create a negative air pressure environment by pulling the contaminated air up and away from the user's breathing zone and into a ventilation system or filter chamber. Anti-corrosive, anti-acid compact panel ensures safe working environment.


Catalog

Specifications

Overall dimension (L × W × H) 1000 × 650 × 1900 mm
Working area dimension (L × W × H) 800 × 600 × 750 mm
Surface wind speed 0.3 to 0.6 m/s
Light LED lamp
Exhaust duct diameter 250 mm
Sliding door thickness 5 mm
PP cup diameter 100 mm
Worktop thickness 12.7 mm
Inner lining board thickness 5 mm
Shell thickness 1.0 mm
Axial fan flow 110 W
Air Flow Velocity 1850 m3/h
Rated Power 2000 W
Noise level ≤ 60dB
Power Supply AC 110 V/ 220 V; 50-60 Hz

Features

  • Main body of 1.0mm thickness cold-rolled steel with epoxy resin powder coating
  • 12.7 mm thick solid physiochemical board worktop
  • Corrosion and acid resistant work top
  • Tempered glass sliding door

Applications

  • Used in research & development processes, pharmaceutical laboratories, microbiological laboratories, quality control laboratories, etc.

Standard Accessories

Accessories No. Name
1 10A socket
2 Fan
3 Duct
4 Faucet (water type)
5 Sink (water type)
6 LED

Optional Accessories

Accessories No. Name
1 LCD panel
2 Gascock
3 Drip rack
4 Electric damper
5 Manual damper

Ask Expert

Related Models Of Ducted Fume Hood

Labnics Ducted Fume Hood have advanced airflow systems that effectively remove hazardous air contaminants. They have sliding doors for easy access and safe containment of hazardous fumes. Their main bodies are constructed from thick steel with a protective coating, ensuring durability. They create a negative air pressure environment that directs contaminated air away for safety. Our fume hoods have integrated LED lighting for improved visibility in the workspace.
