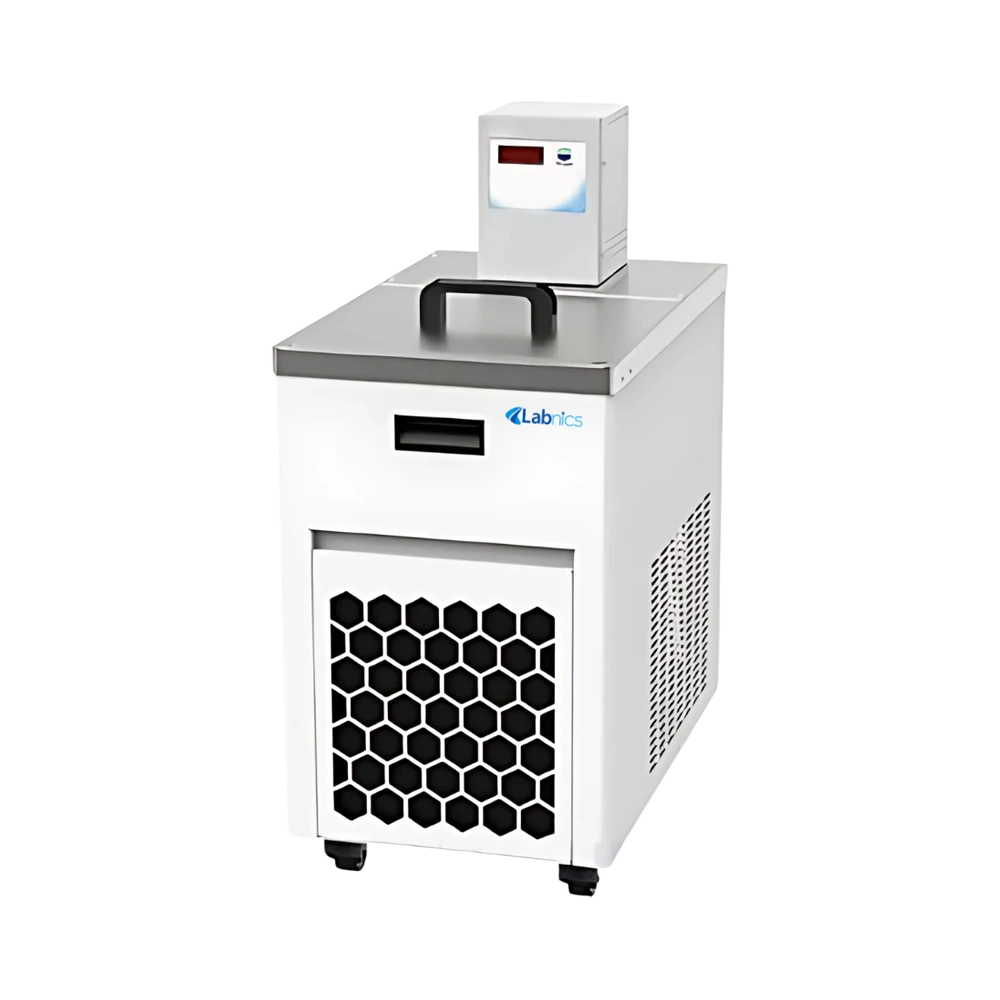

Low-High Temperature Circulating Bath NLHTB-100

Low-High Temperature Circulating Bath NLHTB-100

Low-High Temperature Circulating Bath NLHTB-100 has a 5 L bath capacity suitable for various applications. It offers a temperature range from –20 to 100°C for both low and high temperature operations. This unit features a full stainless steel bath body insulated with cotton to ensure efficient thermal retention. It comes with a high-visibility four-digit LED display for precise monitoring. Our bath supports both closed and open external circulation modes for flexible control.


$2,963.00

Catalog

Specifications

Capacity 5 L
Temperature range -20 to 100°C
Temperature fluctuation ±0.05°C
Temperature resolution 0.1°C
Pump flux 12L/min
Power supply 220V
Open dimension 166×38 mm
Overall dimension 230×400×615 mm
Net weight 25.5 kg
Gross weight 28.5 kg

Features

  • Waterproof control panel
  • Dual safety protection
  • User-friendly interface
  • PID control integration
  • Alarm system support 
  • Immersion-suction pump system
  • Single-point calibration function

Applications

  • Low-High Temperature Circulating Bath NLHTB-100 is used for precise temperature control during sample testing, material analysis, and quality assurance. It is commonly applied in laboratories, research institutions, and industrial testing facilities.

Ask Expert

FAQ for Low-High Temperature Circulating Bath NLHTB-100

1: How accurate is the temperature control?

The Low-High Temperature Circulating Bath offers high precision with a resolution of 0.1°C and a stability of ±0.05°C. This ensures consistent and reliable temperature maintenance throughout the operation.

2: How easy is it to set the temperature?

Temperature settings can be adjusted using three simple methods: step-by-step increase/decrease, press-and-hold for quick adjustment, or direct value input via cursor. This makes it easy to set and modify values based on your needs.

3: What safety features are included in the Low-High Temperature Circulating Bath NLHTB-100?

The Low-High Temperature Circulating Bath includes dual protection features—liquid level detection and high/low temperature limit alarms. If the liquid level is too low or the temperature exceeds limits, the unit will alert and shut down automatically.

4: What happens if there’s a power failure during operation?

The Low-High Temperature Circulating Bath has three operation modes to handle power loss scenarios. Depending on the selected mode, it can either stay off, restart automatically, or restart with locked settings for safety.

5: How often should the Low-High Temperature Circulating Bath NLHTB-100 be cleaned?

Regular cleaning is recommended at least once every two weeks to maintain performance and prevent residue buildup. If used with external samples or in high-demand settings, more frequent cleaning may be needed.

6: Are there different bath sizes or capacities available?

These Low-High Temperature Circulating Baths come in multiple bath capacities to suit different experimental needs. Whether you work with small volumes or require large-capacity applications, there’s a suitable option.

7: How is energy efficiency maintained?

An integrated thermal insulation layer helps minimize heat loss. This not only ensures stable operation but also improves energy efficiency during long-term use.

8: What safety features are included in the Low-High Temperature Circulating Bath?

The Low-High Temperature Circulating Bath includes low liquid level alarms and over-temperature protection for safe and reliable operation. These features help prevent damage and ensure uninterrupted performance.

9: How often should the Low-High Temperature Circulating Bath be cleaned?

Regular cleaning is recommended every 2–4 weeks, depending on usage frequency and the type of fluids used. This helps maintain thermal efficiency and prevents buildup or contamination inside the chamber.

Related Models Of Low-High Temperature Circulating Bath

Labnics Low-High Temperature Circulating Baths are designed for precise thermal control across a broad temperature range. They ensure stable and accurate temperature regulation through PID temperature control. These units support both open and closed loop circulation for flexible operation. They offer easy operation through an intuitive and user-friendly interface. Our baths minimize heat loss and enhance energy efficiency with an integrated thermal insulation layer.
