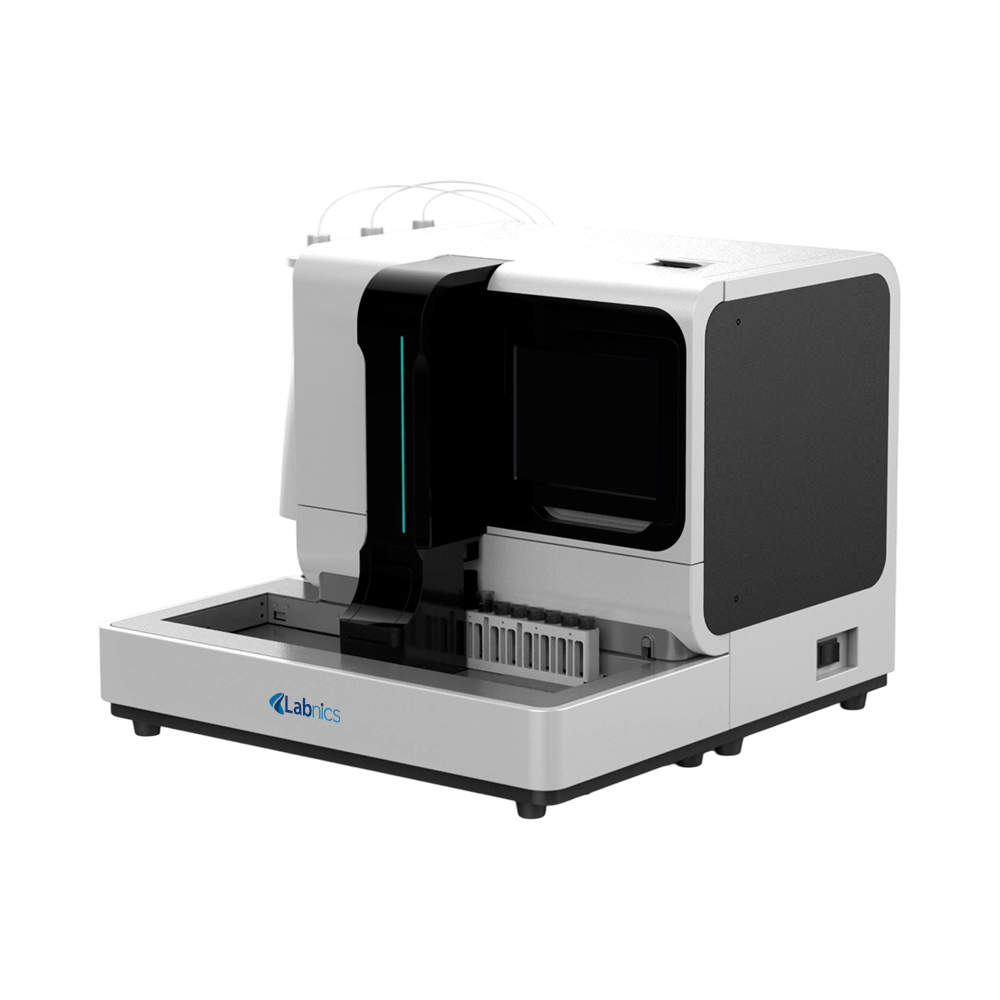

Haemoglobin Analyzer NHGA-200

Haemoglobin Analyzer NHGA-200 can operate to analyse whole blood and diluted samples using only 3 microliters of volume. It is equipped with a colour LCD touch screen for easy navigation and quick display of test results. Our analyser includes a smart washing system that prevents unnecessary reagent consumption. It can accommodate up to 110 samples with automatic loading for efficient high-volume testing.

---

$10,313.00

Buy Now Catalog

Specifications

Sample Type	Whole blood / Diluted blood
Sample Volume	3 μL
Throughput	60 Tests per Hour
Principle	Ion Exchange High-Performance Liquid Chromatography (HPLC)
Coefficient Of Variation	<1.5%
Working Temperature	10°C to 30°C
Reaction Temperature	37°C
Linear Range	2.8% to 18.4%
Linear Correlation	r ≥ 0.99
Test Duration	7 minutes
Detection Time	60s/T
Detection Range	2.8%-18.4%
Reagents	Elution Buffer A/B/C, Hemolysis Reagent, HbA1c Calibrator
Consumables	Column, Filter
Display	Color LCD Touch Screen
Reagent Barcode Reader	Yes
Configuration	LIS Connection
Communication	USB Port
Power Supply	100-240V, 50/60Hz
Dimensions	564 × 560 × 458mm
Packaging Dimensions	700 × 680 × 890 mm
Net Weight	52 kg
Gross Weight	68 kg

Features

• Easy Maintenance
• High Efficiency
• Prolonged Lifespan
• Built in thermal printer
• Supports a STAT position
• Power-saving auto wake-up function
• Gold standard HbA1c
• Enables accurate diagnostics
• GSH-60 HbA1c Analyzer
• Normal Mode for routine HbA1c analysis
• Variant Mode for hemoglobin variants
• Thalassemia Mode for measuring HbA2, HbF, and HbA1c

Applications

• Haemoglobin Analyzer NHGA-200 is widely used to monitor HbA1c levels for diabetes management, evaluate long-term blood glucose control, and deliver rapid results in point-of-care settings to support timely clinical decisions.
