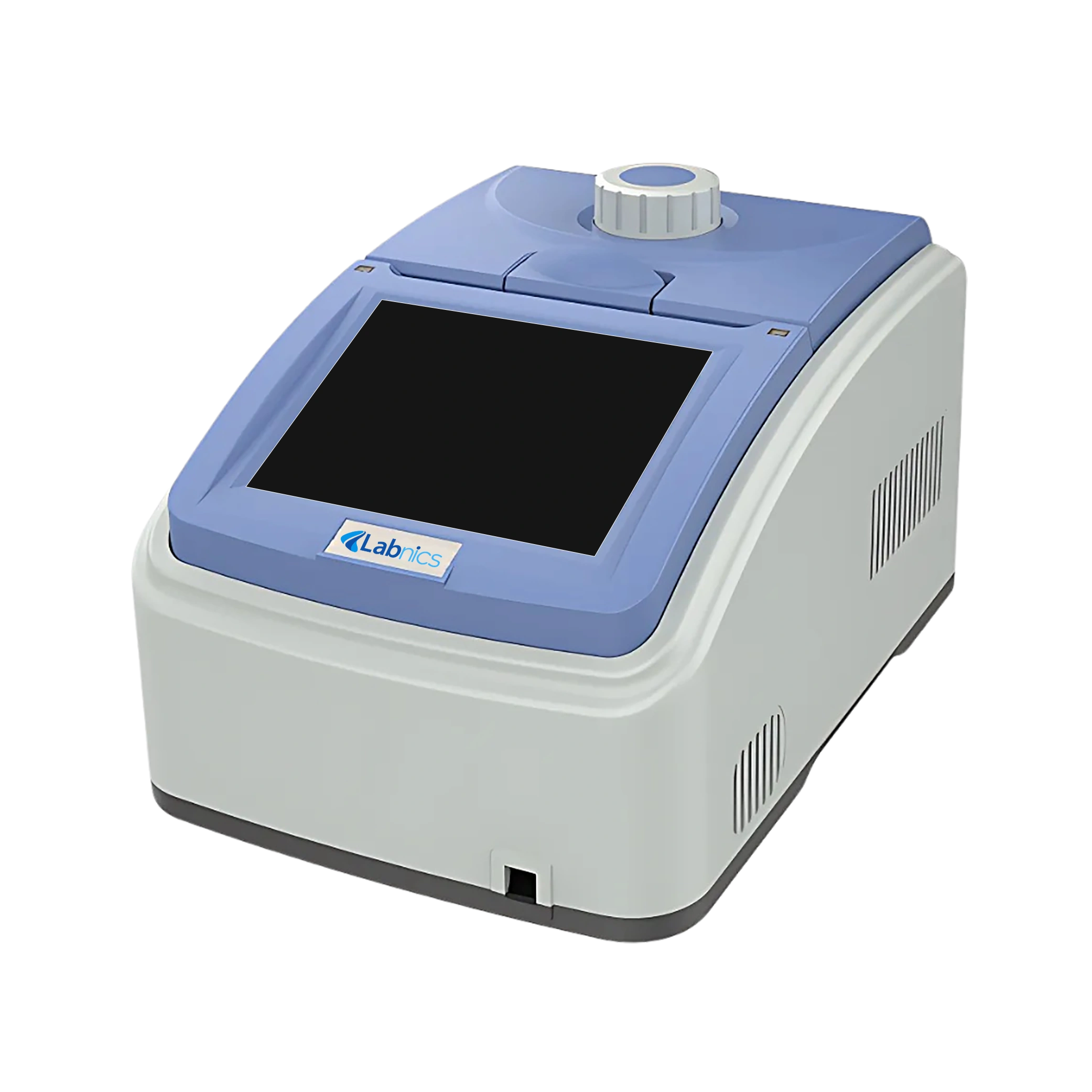

Gradient Thermal Cycler NGTC-104

Gradient Thermal Cycler NGTC-104

Gradient Thermal Cycler NGTC-104 has a capacity of 96×0.2 ml for efficient high-throughput experiments. It supports a reaction volume range of 10 to 120 µl for versatile applications. This unit achieves a maximum ramping rate of 4.5 °C/s for rapid thermal cycling. It offers a large storage capacity for extensive program management. Our thermal cycler provides a user login system with three-tier permissions and password protection for secure data handling.


$4,013.00

Catalog

Specifications

Capacity 96×0.2ml
Tube 0.1/0.2ml tube, 8 strips, 96-well plate
Reaction capacity 10 to 120µl
Temperature range 0 to 105°C
Maximum ramp rate 4.5°C/s
Temperature uniformity ≤±0.2°C
Temperature accuracy ≤±0.1°C
Temperature display resolution 0.1°C
Temperature control method Block/tube
Ramping rate adjustable 0.1 to 4.5°C/s
Hold at 4°C Forever
Gradient type Normal
Gradient speed 1 to 30°C
Gradient temperature range 30 to 105°C
Hot lid temperature range 30 to 115°C
Maximum no. of steps 30
Maximum no. of cycles 200
Maximum no. of programs 10000 + (USB Flash)
Time increment/decrement 1s to 600s
Temperature increase/decrease 0.1 to 10°C
Pause function Yes
Auto data protection Yes
Touchdown function Yes
Long PCR function Yes
Language English
Mobile phone app Yes
LCD 8-inch, 800×600 pixels
Communication USB 2.0, WIFI
Power consumption 600W
Power supply 100 to 240VAC, 50/60Hz
Product dimension 390×270×255mm
Weight 9 kg

Features

  • Adjustable ramping rate
  • Durable Peltier technology
  • Corrosion-resistant module
  • Hot lid adjustment
  • Mobile app connectivity
  • USB data transfer
  • GLP-compliant reporting

Applications

  • Gradient Thermal Cycler NGTC-104 is used for precise DNA amplification through PCR to support various molecular biology experiments. It is commonly applied in research laboratories, clinical diagnostics, biotechnology, and forensic analysis.

Ask Expert

FAQ for Gradient Thermal Cycler NGTC-104

1: How accurate is the temperature control?

The Gradient Thermal Cycler maintains a temperature accuracy of ?±0.1 °C and a uniformity of ?±0.2 °C. You can rely on consistent results across all samples, ensuring reproducibility in your experiments.

2: Does the Gradient Thermal Cycler NGTC-104 have safety features for experiments?

The Gradient Thermal Cycler includes an auto data protection function that safeguards your experiment in case of a power failure. You can continue from where the run stopped once power is restored. This reduces the risk of having to repeat long PCR cycles.

3: What additional functions make the Gradient Thermal Cycler NGTC-104 stand out?

Our Gradient Thermal Cycler offers one-click rapid incubation for tasks like denaturation, enzyme digestion, and ELISA. You can quickly perform short heating steps without running a full PCR program. This saves time and adds versatility to your experiments.

4: How should I clean the Gradient Thermal Cycler NGTC-104?

The Gradient Thermal Cycler should be cleaned regularly using a soft, lint-free cloth slightly dampened with mild detergent or 70% ethanol. You should avoid using abrasive cleaners or solvents that could damage the touch screen and module surface. It is important to keep the unit free from dust and spills to maintain optimal performance.

5: How often should the Gradient Thermal Cycler be calibrated?

It is recommended to have the thermal cycler calibrated at least once a year to ensure temperature accuracy. You can contact an authorized service provider for calibration services. Regular calibration helps maintain consistent and reliable results.

6: Can I run different sample sizes with this Gradient Thermal Cycler?

Yes, the Labnics Gradient Thermal Cycler supports various sample capacities, which is perfect for both small-scale and high-throughput experiments. You can use different formats, like 0.2 mL tubes and 96-well plates, depending on the project. This flexibility makes it very versatile in the lab.

7: Can I monitor the status of my PCR run in real-time?

Yes, our Gradient Thermal Cycler provides real-time status updates via the touchscreen interface, so you can check the progress of your run at any time. It shows detailed information such as current cycle, temperature profile, and estimated time to completion. This feature ensures that you are always aware of how your experiment is progressing.

8: Are there any routine checks I should perform on the Gradient Thermal Cycler?

It is recommended to routinely inspect the thermal cycler for any signs of wear or damage, especially the hot lid and temperature sensors. Check for consistent temperature readings and ensure all software settings are correct before starting an experiment.

9: Can the Gradient Thermal Cycler be used for high-throughput applications?

Yes, it is well-suited for high-throughput workflows due to its ability to handle multiple samples simultaneously in different formats, including 96-well and 384-well plates. This makes it perfect for labs that need to process large numbers of samples in one batch while maintaining precise temperature control.
