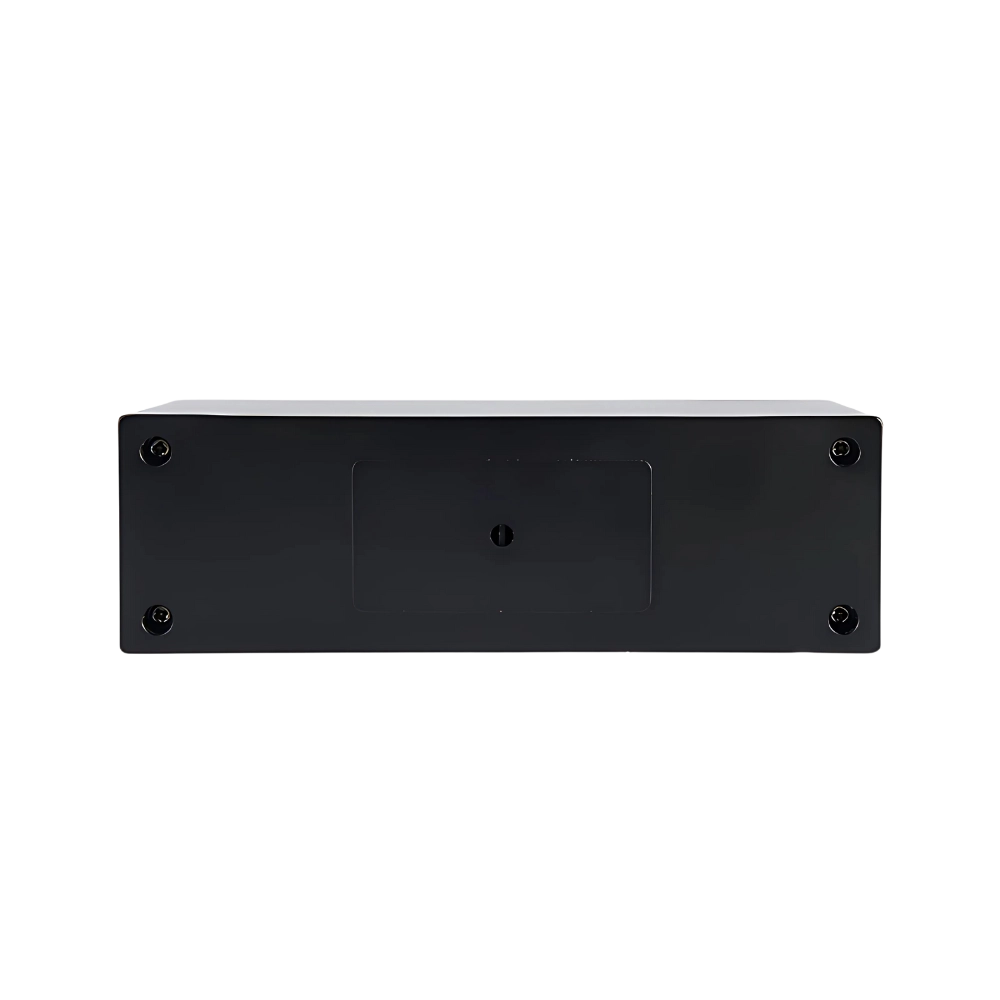

Gloss Meter NGSM-205
Gloss Meter NGSM-205 is capable of measuring gloss at three specific angles 20°, 60°, and 85°, used for assessing different surface finishes. It has a wide range from 0.1 to 2000 Gloss GU, offering versatility. This unit is designed to operate within a temperature range of 0°C to 40°C and can withstand humidity levels up to 85% RH. It comes with a built-in lithium-ion rechargeable battery, ensuring long-lasting power. Our meter features a clear, 4-digit backlit display, allowing easy reading of measurements.
| Display | 4 Digits backlit LCD |
| Measuring angle | 20°/60°/85° |
| Range | 0.1 to 2000 Gloss Units |
| Accuracy | ±1.5GU |
| Resolution | 0.1 |
| Repeatability | ±0.5GU |
| Measuring area | 7×14mm (Ellipse) |
| Data memorized | 56 groups |
| Temperature | 0 to 40°C |
| Humidity | <85% RH |
| Power supply | 3.7V lithium-ion rechargeable battery |
| Dimension | 140×45×75mm |
| Weight | 310g (including batteries) |
Gloss Meter NGSM-205 is used to measure the level of gloss or shine on a surface, ensuring the quality and consistency of finishes in various industries. It is commonly applied in automotive, paint, coatings, plastic, and furniture manufacturing to monitor and maintain surface appearance standards.
Main unit
USB data cable with software
Labnics Gloss Meters feature specific measuring angles to accommodate various surface types and gloss levels. They are designed for high accuracy and can be calibrated to ensure precise readings. These units can measure a broad range of gloss levels, from low-gloss matte finishes to high-gloss, mirror-like surfaces. They come equipped with a clear and easy-to-read LCD for convenient viewing of measurements. Our gloss meters include internal memory for storing data and facilitating easy access to past measurements.
