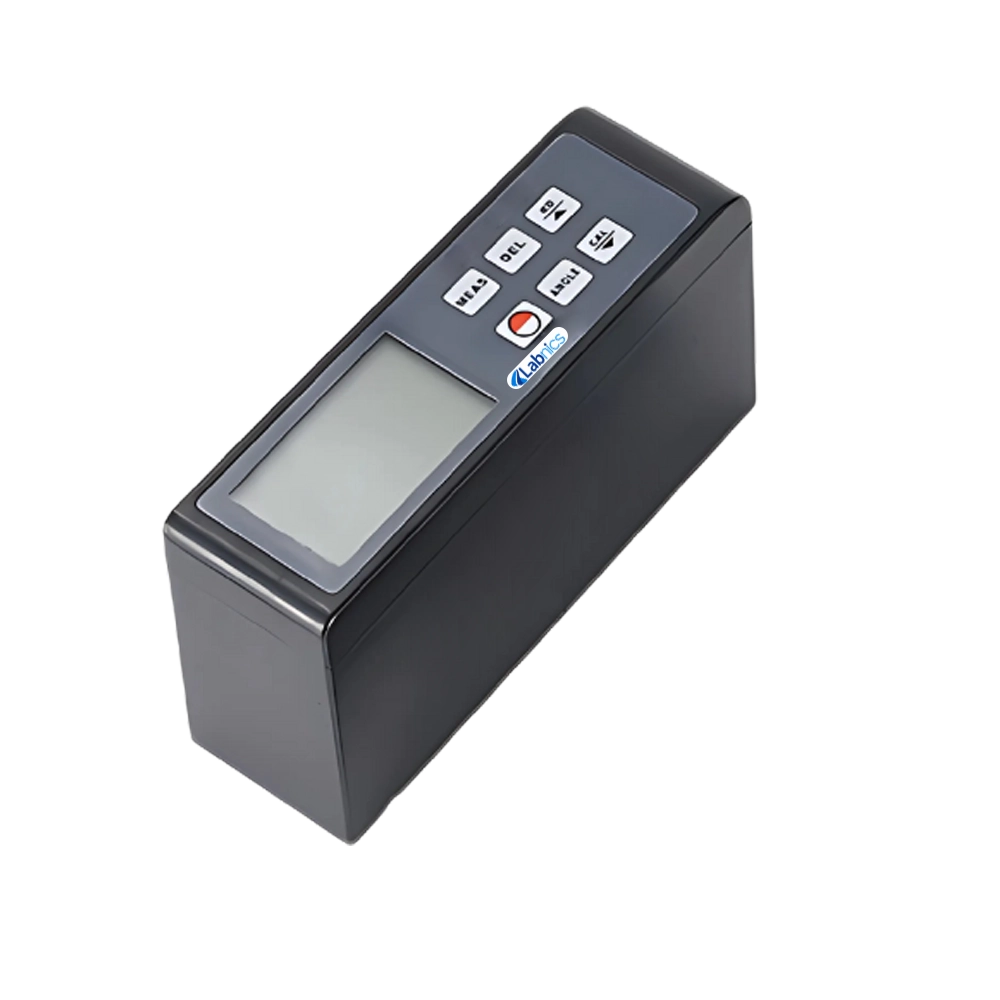

Gloss Meter NGSM-205 Catalog

Gloss Meter NGSM-205 is capable of measuring gloss at three specific angles 20Â°, 60Â°, and 85Â°, used for assessing different surface finishes. It has a wide range from 0.1 to 2000 Gloss GU, offering versatility. This unit is designed to operate within a temperature range of 0Â°C to 40Â°C and can withstand humidity levels up to 85% RH. It comes with a built-in lithium-ion rechargeable battery, ensuring long-lasting power. Our meter features a clear, 4-digit backlit display, allowing easy reading of measurements.

FEATURES

SPECIFICATIONS

Display	4 Digits backlit LCD
Measuring angle	20°/60°/85°
Range	0.1 to 2000 Gloss Units
Accuracy	±1.5GU
Resolution	0.1
Repeatability	±0.5GU
Measuring area	7×14mm (Ellipse)
Data memorized	56 groups
Temperature	0 to 40°C
Humidity	<85% RH
Power supply	3.7V lithium-ion rechargeable battery
Dimension	140×45×75mm
Weight	310g (including batteries)

APPLICATIONS

Gloss Meter NGSM-205 is used to measure the level of gloss or shine on a surface, ensuring the quality and consistency of finishes in various industries. It is commonly applied in automotive, paint, coatings, plastic, and furniture manufacturing to monitor and maintain surface appearance standards.

STANDARD ACCESSORIES

Main unit

Holder with calibration standard

Optical cleaning cloth

Carrying case

Operation Manual

OPTIONAL ACCESSORIES

USB data cable with software

Bluetooth data adapter with software
