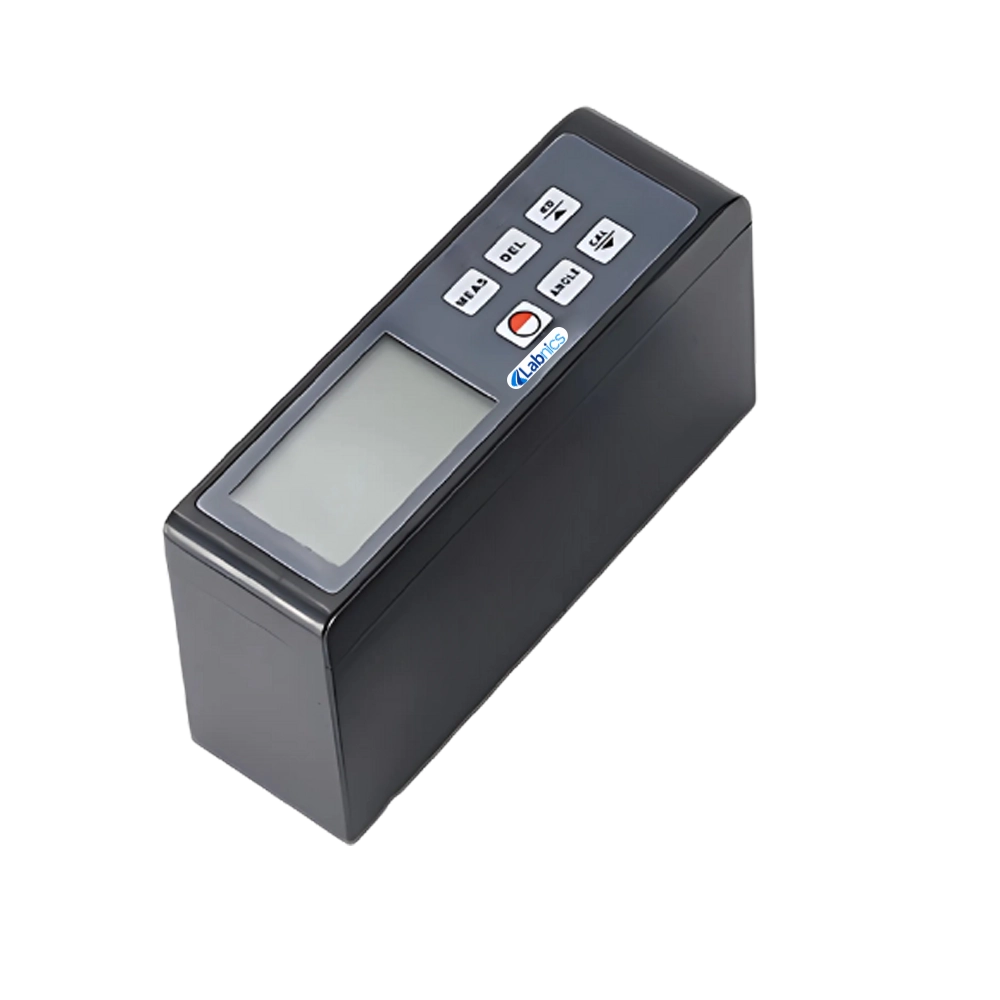

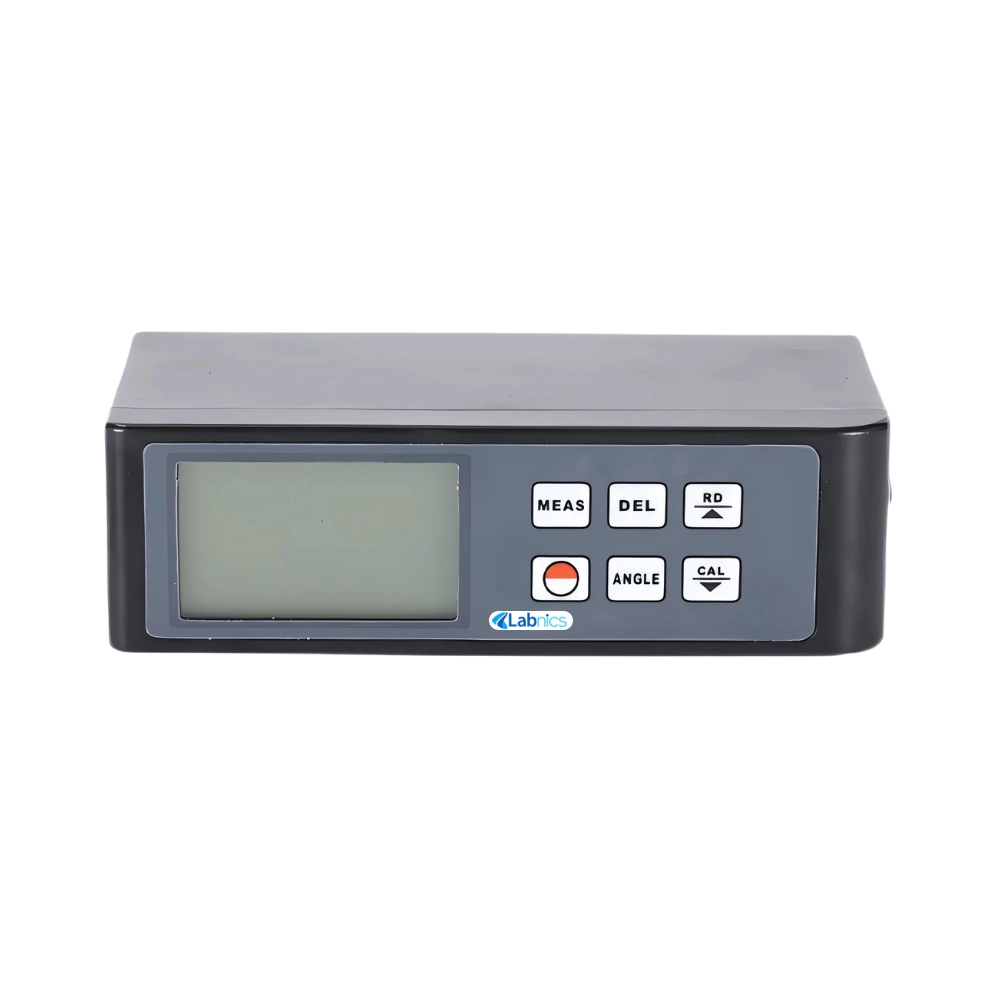

Gloss Meter NGSM-200

Gloss Meter NGSM-200

Gloss Meter NGSM-200 has a 60° measuring angle, ensuring accurate gloss readings. It covers a wide range from 0.1 to 200GU, suitable for various surfaces. This gloss meter features a 4-digit backlit LCD for clear visibility in low-light environments. It operates effectively within a temperature range of 0 to 40°C and humidity below 85% RH. Our unit includes an auto-calibration function, ensuring consistent accuracy and easy recalibration.


Catalog

Specifications

Display 4 Digits backlit LCD
Measuring angle 60°
Range 0.1 to 200 Gloss Units
Accuracy ±1.5GU
Resolution 0.1
Repeatability ±0.5GU
Measuring area 7×14mm (Ellipse)
Data memorized 254 groups
Temperature 0 to 40°C
Humidity <85% RH
Power supply 3.7V lithium-ion rechargeable battery
Dimension 140×45×75mm
Weight 305g (including battery)

Features

  • Stores up to 254 measurement groups
  • Lithium-ion rechargeable battery
  • RS-232 and Bluetooth data output
  • Meets international gloss standards
  • Robust construction for long-term use

Applications

  • Gloss Meter NGSM-200 is used to measure the gloss levels of various surfaces, ensuring consistent quality control and material finish. It is commonly applied in industries such as automotive, coatings, plastics, and paint manufacturing, as well as in laboratories for research and development.

Standard Accessories

Main unit
Holder with calibration standard
Optical cleaning cloth
Carrying case

Optional Accessories

RS-232C data cable with software
Bluetooth data adapter with software

Ask Expert

Related Models Of Gloss Meter

Labnics Gloss Meters feature specific measuring angles to accommodate various surface types and gloss levels. They are designed for high accuracy and can be calibrated to ensure precise readings. These units can measure a broad range of gloss levels, from low-gloss matte finishes to high-gloss, mirror-like surfaces. They come equipped with a clear and easy-to-read LCD for convenient viewing of measurements. Our gloss meters include internal memory for storing data and facilitating easy access to past measurements.

Gloss Meter NGSM-203

Display 4 Digits backlit LCD
Measuring angle 45°
Range 0.1 to 200 Gloss Units
Catalog

Gloss Meter NGSM-204

Display 4 Digits backlit LCD
Measuring angle 75°
Range 0.1 to 200 Gloss Units
Catalog

Gloss Meter NGSM-205

Display 4 Digits backlit LCD
Measuring angle 20°/60°/85°
Range 0.1 to 2000 Gloss Units
Catalog
Gloss Meter NGSM-206
Display 4 Digits backlit LCD
Measuring angle 20°/60°/85°
Range 0.1 to 200 Gloss Units
Catalog
Gloss Meter NGSM-100
Test angle 60°
Test light spot 9×15mm
Test range 0 to 1000GU
Catalog

Gloss Meter NGSM-201

Display 4 Digits backlit LCD
Measuring angle 20°/ 60°
Range 0.1 to 200 Gloss Units
Catalog

Gloss Meter NGSM-202

Display 4 Digits backlit LCD
Measuring angle 20°/60°/85°
Range 0.1 to 200 Gloss Units
Catalog

Gloss Meter NGSM-101

Test angle 60°
Test light spot 2×3mm
Test range 0 to 600GU
Catalog
Gloss Meter NGSM-102
Test angle 20°, 60°, 85°
Test light spot 20°: 10×10mm
60°: 9×15mm
85°: 5×38mm
Test range 20°: 0 to 2000GU
60°: 0 to 1000GU
85°: 0 to 160GU
Catalog
