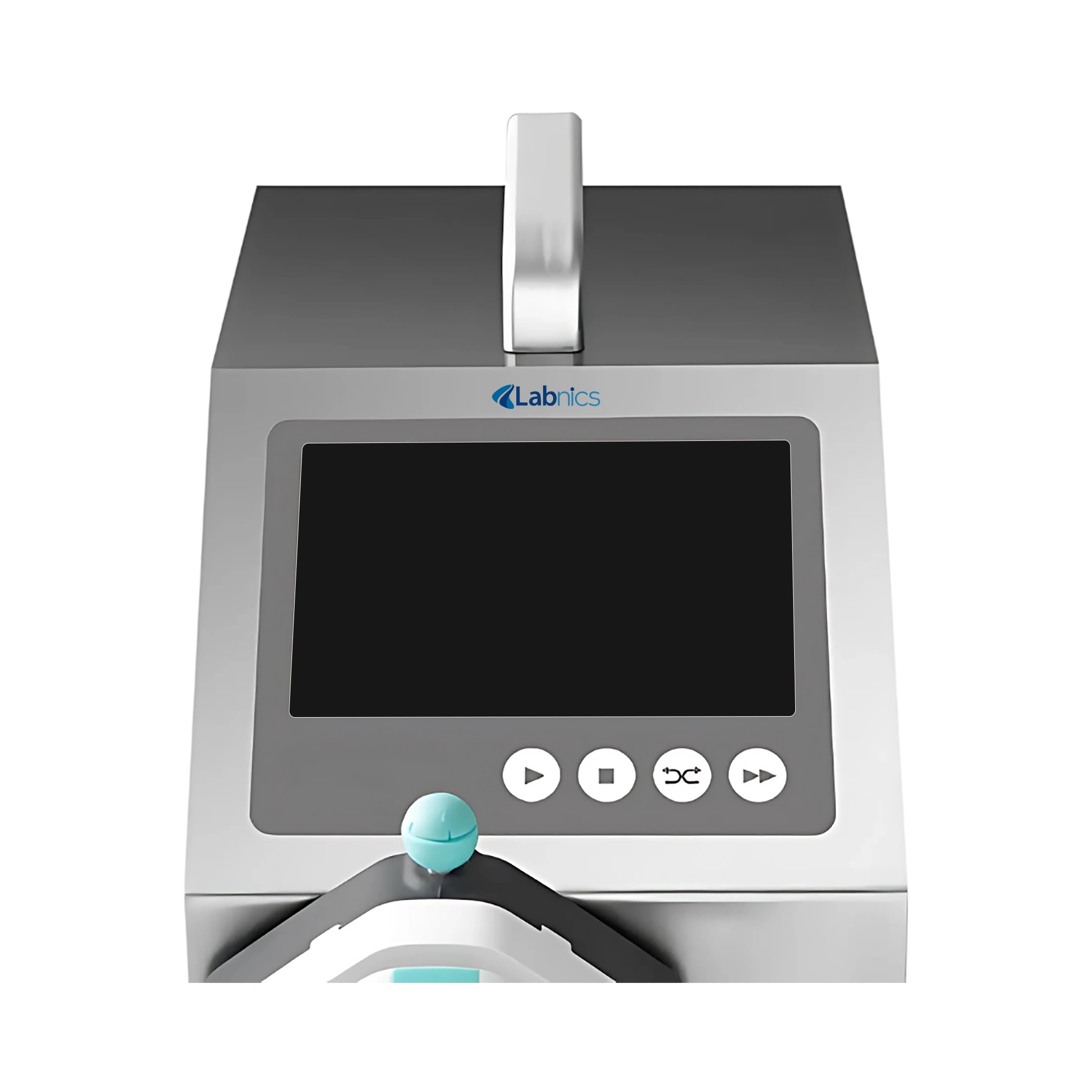

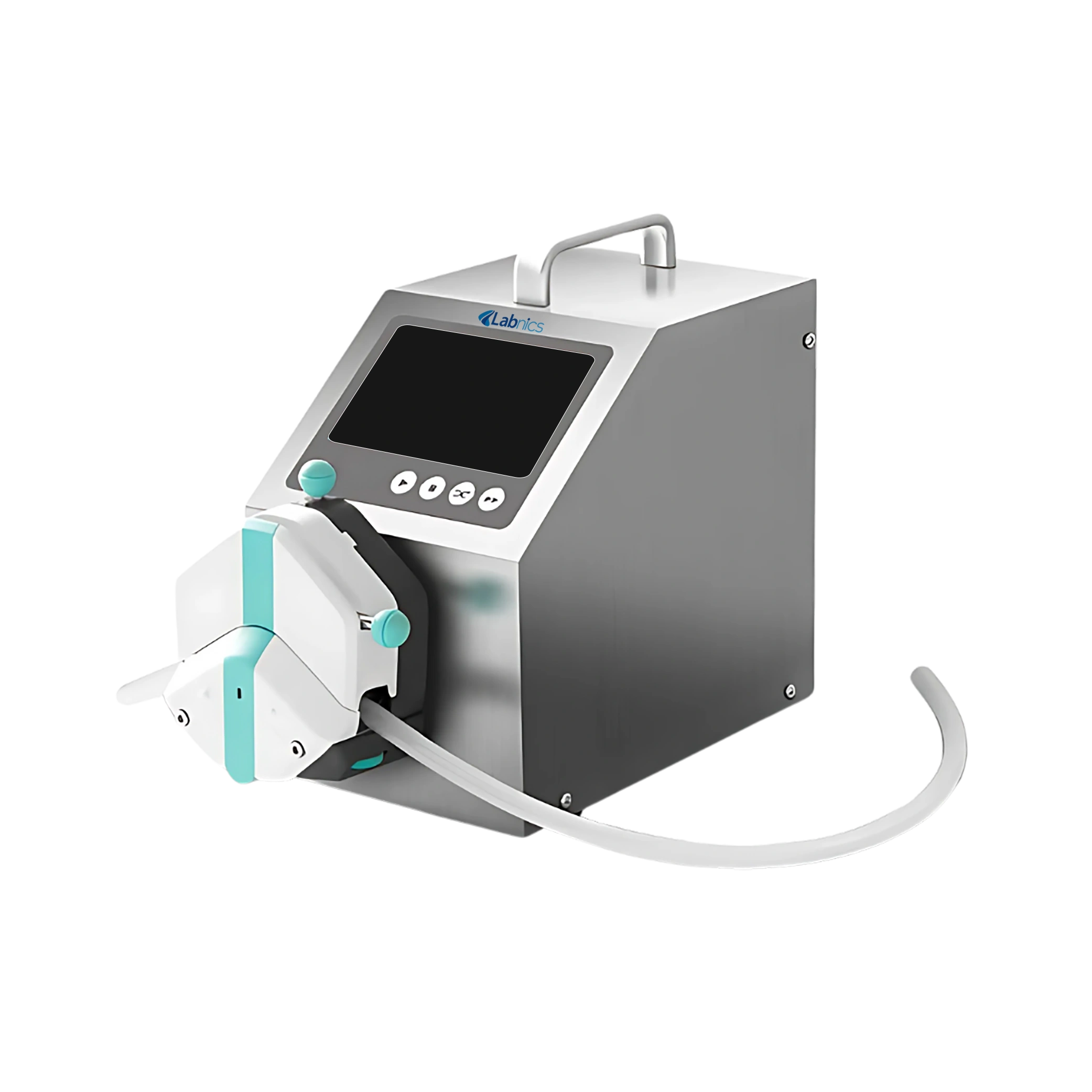

Intelligent Flow Peristaltic Pump NIFPP-704 supports precise flow control between 0.0053 and 3100 mL/min with a resolution of 0.01 mL. It features a stainless steel housing for lasting performance. This unit includes a touchscreen display for easy control and real-time monitoring. It has a triple-coated circuit board that protects against dust, moisture, and static. Our peristaltic pump comes with a metal lifting handle for convenient carrying and handling.
| Flow Range |
0.0053 to 3100 mL/min |
| Flow Resolution |
0.01 mL |
| Speed Range |
0.1 to 600 RPM |
| Speed Resolution |
0.01 RPM |
| Testing Time Range |
0.1s to 9999h |
| Display |
Industrial grade 4.3 inch |
| Temperature Range |
0 to 40°C |
| Relative Humidity |
<80% |
| Control Method |
Touch screen and Mechanical keypad |
| Keypad Lifespan |
300,000 times |
| Back Suction Angle |
0 to 360° |
| External Control |
0 to 5 V, 0 to 10 V, 4 to 20 mA |
| Output Interface |
Output motor working status (open-collector output) |
| Communication Interface |
RS232/RS485 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal |
Passive switch input (e.g., foot pedal) |
| Active Switch Signal |
Default 5V to 24V active input |
| Power Consumption |
<80 W |
| Power Supply |
AC 220V±10%, 50Hz/60Hz |
| Dimension |
223 × 152 × 231 mm |
| Weight |
5.02 kg |
Intelligent Flow Peristaltic Pump NIFPP-704 is ideal for precise liquid transfer in industrial production, pharmaceutical manufacturing, and fine chemical processing, ensuring reliable and efficient operation across various sectors.
FAQ for Intelligent Flow Peristaltic Pump NIFPP-704
1: What real-time information does the Intelligent Flow Peristaltic Pump NIFPP-704 display during operation?
The Intelligent Flow Peristaltic Pump NIFPP-704 features a 4.3-inch LCD screen that displays the transferring status, flow rate, parameter settings, and system configurations on the same screen for real-time monitoring and control.
2: What working modes are supported by the Intelligent Flow Peristaltic Pump NIFPP-704?
Our Intelligent Flow Peristaltic Pump NIFPP-704 supports three working modes: fixed volume metering, fixed time and volume, and timer-based start/stop to meet diverse dispensing and transferring requirements.
3: Why is the Intelligent Flow Peristaltic Pump NIFPP-704 suitable for pharmaceutical and industrial applications?
The Intelligent Flow Peristaltic Pump NIFPP-704 is constructed with 304 stainless steel housing that meets GMP standards. Its seamless welding design prevents liquid leakage, making it ideal for pharmaceutical and fine chemical industries.
4: How is the circuit board protected in the Intelligent Flow Peristaltic Pump NIFPP-704?
The Intelligent Flow Peristaltic Pump NIFPP-704 uses a three-layer protective paint coating on its circuit board to resist dust, moisture, static, and corrosion, ensuring stable performance in industrial environments.
5: Is the Intelligent Flow Peristaltic Pump NIFPP-704 easy to transport?
The Intelligent Flow Peristaltic Pump NIFPP-704 is equipped with a sturdy metal lifting handle designed for a comfortable grip, allowing users to transport the unit easily between workstations.
