Product Data Sheet · Laboratory Equipment

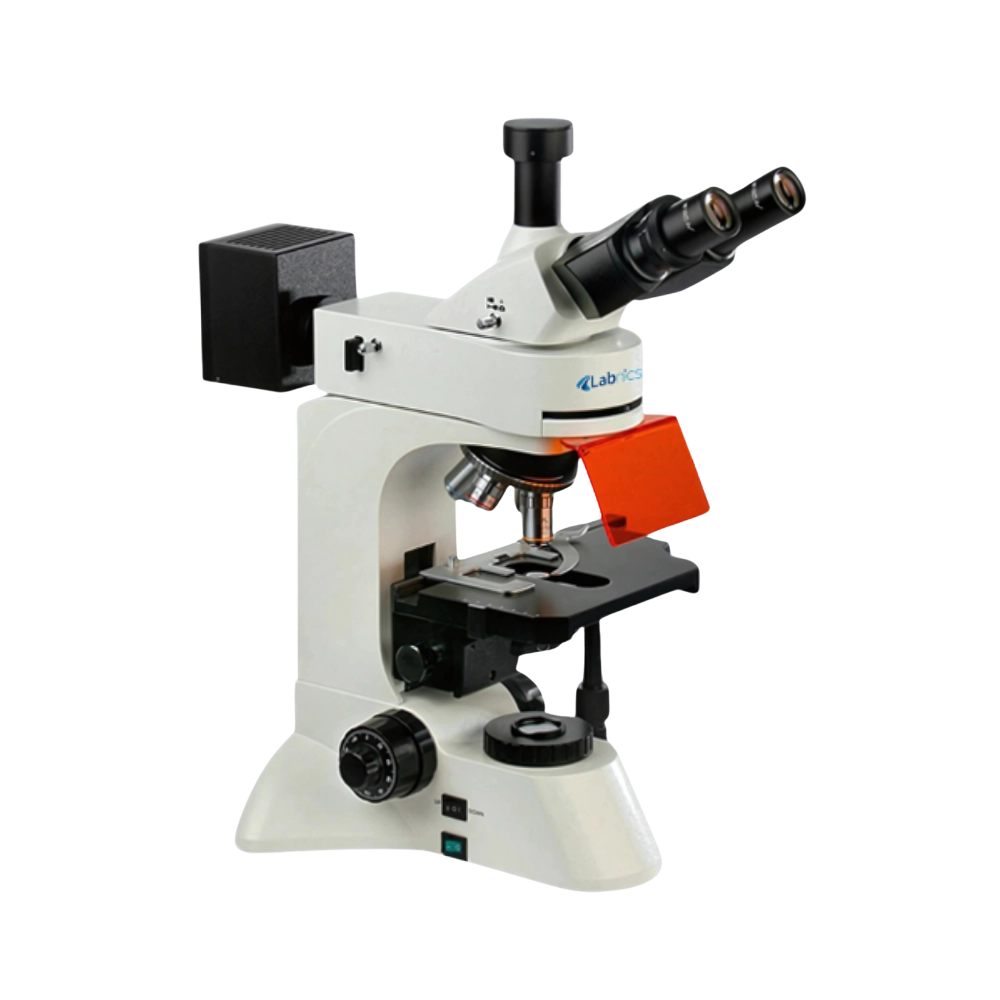

Fluorescence Microscope NFM-103 provides WF10× (Φ22mm) eyepieces positioned at a 30° inclination for user comfort. It offers camera connectivity for real-time imaging and accurate documentation. Our unit features a modular design with an advanced infinity optical system. It includes a double-layer mechanical stage for smooth and precise slide movement. This microscope uses high-brightness LED light sources for efficient and stable illumination.
| Eyepiece | WF10× (Φ22mm) |
|---|---|
| Infinity plan achromatic objectives | PL 4×/0.10: Work distance: 19.8 mm PL 10×/0.25: Work distance: 5.0 mm PLF L40×/0.85ε spring: Work distance: 0.42 mm (No magnification spherocromatic aberration) PL 100×/1.25 Spring, oil: Work distance: 0.36 mm |
| Eyepieces tube | Trinocular, Inclination of 30° |
| LED wave band | Green ( 475nm to 490nm) |
| Fluorescence filters | B (Blue) and G (Green) |
| Transmitted illumination filters | Blue filter and ground glass |
| Condenser | Abbe condenser NA. 1.25, rack & pinion adjustable |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing 2 μm |
| Nosepiece | Quadruple (Backward ball bearing inner locating) |
| Epi-fluorescent illumination system | 3W high brightness LED |
| Moving range | 75 × 50 mm |
| Dimension | 210 × 140 mm |
