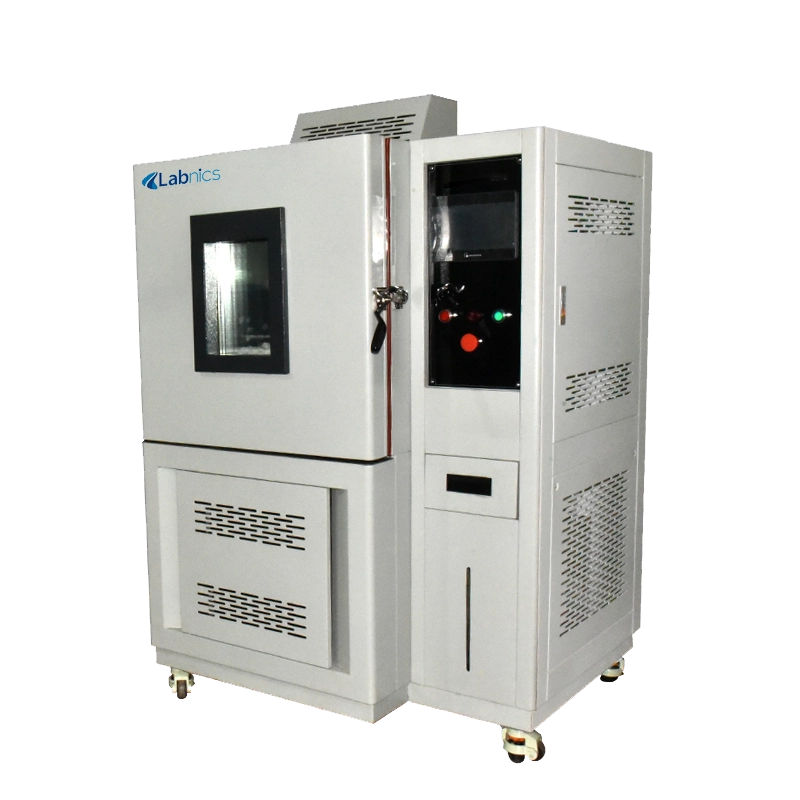

Environmental Test Chamber NETC-304

Environmental Test Chamber NETC-304

Environmental Test Chamber NETC-304

Environmental Test Chamber NETC-304 also known as climate chamber or climatic chamber is a controlled, artificial chamber that simulates or mimics environmental conditions such as temperature, humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the test’s sample performance.

Specifications

Capacity 408 L
Temperature range -70°C ~150°C
Humidity range 20%RH ~ 98%RH
Temperature fluctuation ± 0.5°C
Temperature accuracy ≤ 2.0°C
Humidity accuracy ± 2/3% RH (>75%RH); ± 5% RH (<75%RH)
Heating speed 3°C/min
Cooling speed 0.8°C-1.2°C/min
Display accuracy ≤ 2%
Load division value 0.01°C
No. of shelves 03
Internal material SS 304, 1.0 mm thick stainless-steel plate
External material Electrostatically sprayed 1.2 mm cold-rolled steel plate
Insulation material 103 mm thick fibre cotton
User interface USB connector
Working temperature +5°C~35°C
Power consumption 10 kW
Power supply AC 380/220 ±10V; 50Hz
Internal dimension 600 × 800 × 850 mm
Overall dimension 1100 × 1300 × 2000 mm
Weight 450 kg

Features

  • Space-saving design with quiet operation along with castors for mobility
  • PLC controller for test chamber
  • Multiple safety protection functions against leakage, short circuit, compressor and fan overload and over temperature
  • Wide-screen LCD programmable temperature controller
  • Real-time display of data, history graphs and data storage of up to 100days

Applications

Widely employed in medicine, pharma, food processing, food packaging, consumer goods and services, automotive, engineering, and construction industries.
