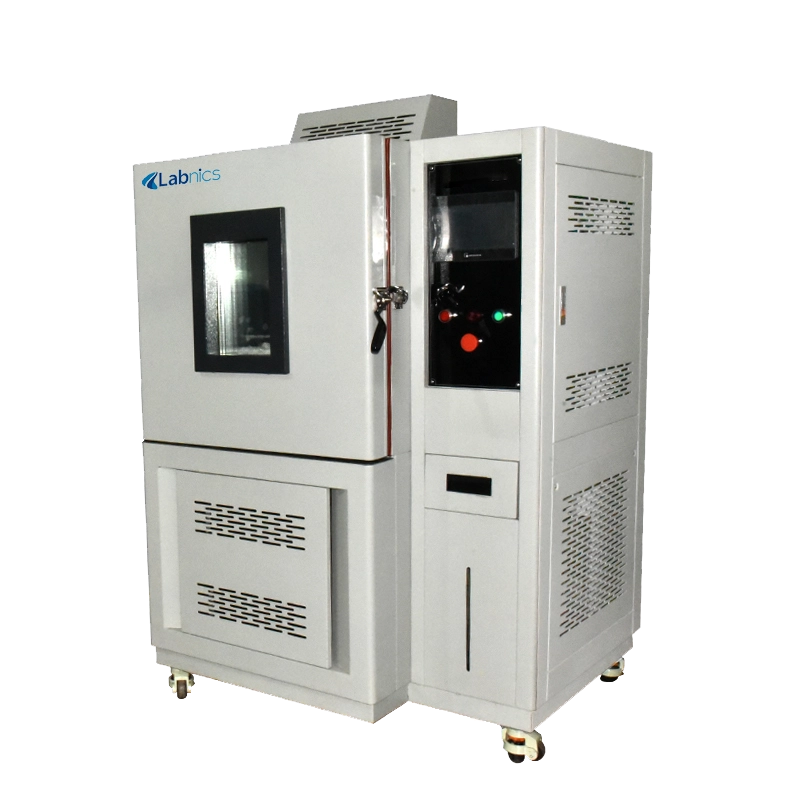

Environmental Test Chamber NETC-105
Environmental Test Chamber NETC-105 also known as climate chamber or climatic chamber is a controlled, artificial chamber that simulates or mimics environmental conditions such as temperature, humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the test’s sample performance.
Capacity | 500 L |
Temperature range | -40°C ~ 150°C |
Humidity range | 20%RH ~ 98%RH |
Temperature fluctuation | ± 0.5°C |
Temperature accuracy | ≤ 2.0°C |
Humidity accuracy | ± 2/3% RH (>75%RH); ± 5% RH (<75%RH) |
Heating speed | 3°C/min |
Cooling speed | 0.8°C-1.2°C/min |
Display accuracy | ≤ 2% |
Load division value | 0.01°C |
No. of shelves | 03 |
Internal material | SS 304, 1.0 mm thick stainless-steel plate |
External material | Electrostatically sprayed 1.2 mm cold-rolled steel plate |
Insulation material | 104 mm thick fibre cotton |
User interface | USB connector |
Working temperature | +5°C~35°C |
Power consumption | 9 kW |
Power supply | AC 380/220 ±10V; 50Hz |
Internal dimension | 700 × 800 × 900 mm |
Overall dimension | 1200 × 1300 × 2050 mm |
Weight | 490 kg |
Widely employed in medicine, pharma, food processing, food packaging, consumer goods and services, automotive, engineering, and construction industries.
Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
Temperature resolution ratio | 0.1 ˚C |
Temperature motion | +1 ˚C |
Temperature uniformity | +1.0 ˚C |
Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
Temperature resolution ratio | 0.1 ˚C |
Temperature motion | +1 ˚C |
Temperature uniformity | +1.0 ˚C |
Temperature range | Without illumination 0 to 65˚C; With illumination: 10-65 ˚C |
Temperature resolution ratio | 0.1 ˚C |
Temperature motion | +1 ˚C |
Temperature uniformity | +1.0 ˚C |
Capacity | 50 L |
Temperature range | (- 20 °C) to 150 °C |
Low type | I – 40 °C, II – 70 °C |
Environmental condition | 5 ℃ ~ + 40 ℃ ≤ 85 % RH |
Capacity | 100 L |
Temperature range | (-20) ℃ to 150 ℃, (-40) ℃ to 150 ℃, (-70 ) ℃ to 150 ℃ |
Temperature cooling rate | 1 ℃ / min |
Temperature heating rate | 3 ℃ / min |
Capacity | 80 L |
Temperature Range | -20 ℃ to +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Labnics Drug Test Chamber are engineered to ensure precise environmental conditions for the stability testing of pharmaceutical products. They feature a user-friendly interface with a lock function for secure and easy operation. Equipped with a high-quality compressor for failure-free continuous operation. They maintain precise humidity levels to simulate actual storage environments. Our chamber are constructed with high-quality materials for durability and longevity.
Volume | 500 L |
Temperature Range | 0 to 70 °C |
Temperature Resolution | 0.1 °C |
Temperature Uniformity | ≤ 0.5 °C |
