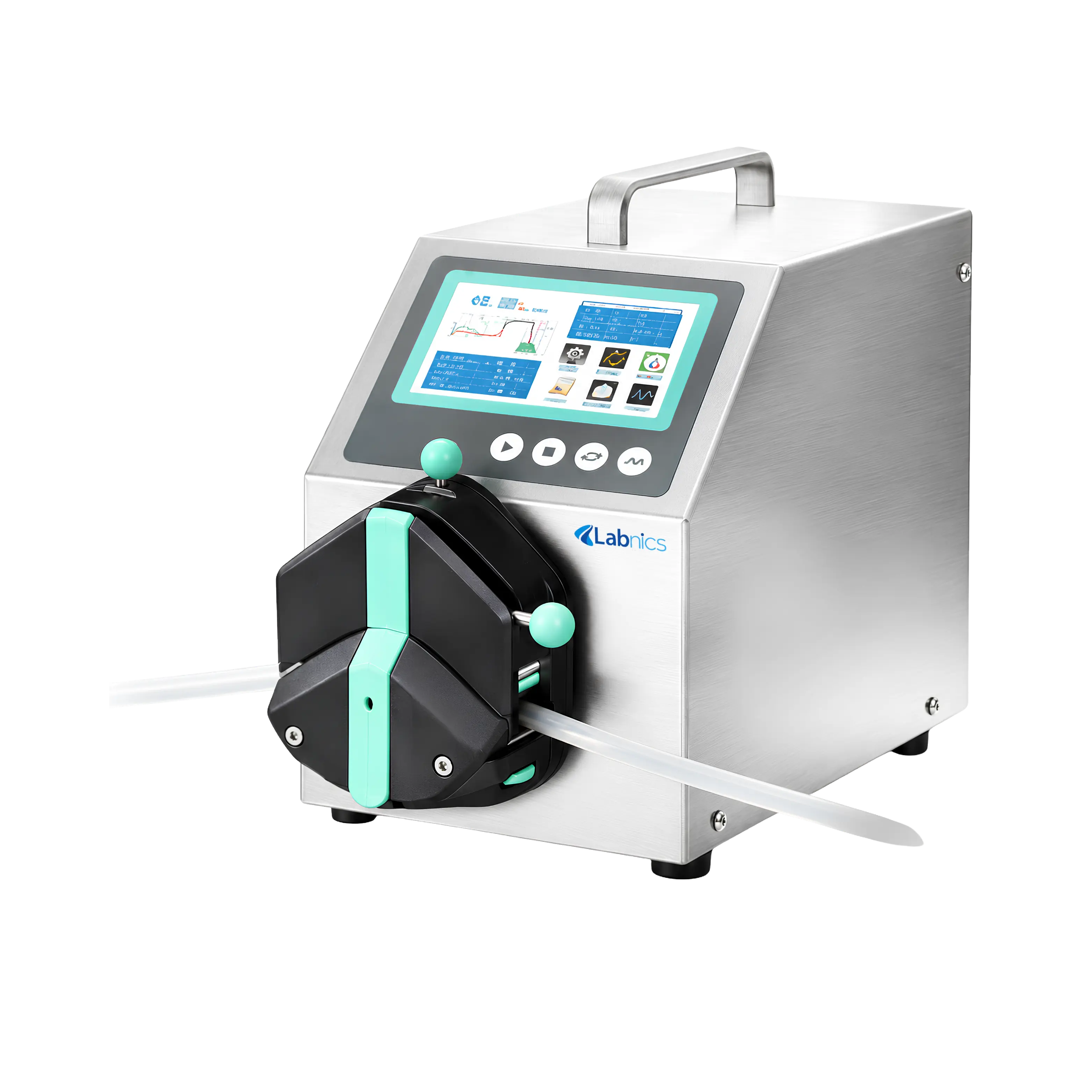

Dispensing Peristaltic Pump NDPP-205

---

$3,068.00

Buy Now Data Sheet

Specifications

Flow Rate Range (drive)	0.0053–3100 mL/min
Flow Rate Range (with EasyPump III)	0.0053–2580 mL/min
Filling Speed*	Up to 36 mL/s
Filling Accuracy / Repeatability*	Up to ±0.5%
Flow Rate Accuracy	< ±0.5%
Speed Range	0.1–600 rpm
Speed Resolution	0.01 rpm
Flow Rate Resolution	0.01 mL
Working Modes	Fixed volume, volume dispensing, speed dispensing, timed start/stop
Dispensing Volume	0.01–9999 mL
Volume Resolution	0.01 mL
Dispensing Time	0.1–9999 s
Pause Time	0.1–9999 s
Time Resolution	0.01 s
Repeat Number	1–9999 times (“0” for continuous dispensing)
Back Suction Angle	0–360°
Tubing configuration	1.6 mm wall tubing
Calibration	Intelligent calibration with online micro-adjustment during running
Motor Type	Stepper motor
Display	Industrial-grade 4.3
Control Method	Touch screen and mechanical keypad
Keypad Lifetime	300,000 operations
External Control Signal	0–5 V, 0–10 V, 4–20 mA (optional)
Start/Stop and Direction Signal	Passive switch signal (e.g. foot pedal switch); active switch signal 5–24 V
Communication Interface	RS232, RS485 with MODBUS protocol (RTU mode)
Output Interface	Motor working status (open-collector output)
Housing	ABS engineering plastic shell with UV spray coating
Circuit Board Protection	Three-layer coating: dust-proof, moisture-proof, anti-static, corrosion resistant
Power Supply	240 V AC, 50 Hz
Power Consumption	50 W (max < 80 W)
Operating Temperature	0–40°C
Relative Humidity	< 80%
Net Weight	4.20 kg
Product Dimensions (L × W × H)	219.6 × 152 × 211.6 mm
Overall Dimensions with Pump Head (L × W × H)	291 × 152 × 231 mm

Features

Multiple Working Modes — Fixed volume, dispensing and timed control
Intelligent Online Calibration — Adjusts flow without stopping
Flexible Operation — Hand control, foot switch and automatic cycling
Selectable Filling Modes — Braked stop, soft stop and suck-back
Replaceable Silicone Tubing — Suitable for repeated sterilisation
Filtration Compatibility — Supports inline bacteriological filtration

Applications

Pharmaceutical Industries	Fine Chemical Industries	Industrial Production	Sterile Liquid Filling
Dispenses pharmaceutical liquids in precise volumes with intelligent calibration and suck-back to prevent dripping	Transfers fine chemical solutions at set flow rates with timed start/stop and repeat dispensing control	Handles continuous liquid transfer in production lines with foot switch, automatic cycling and MODBUS connectivity	Fills sterile liquids through sterilisable silicone tubing with inline bacteriological filtration supp
