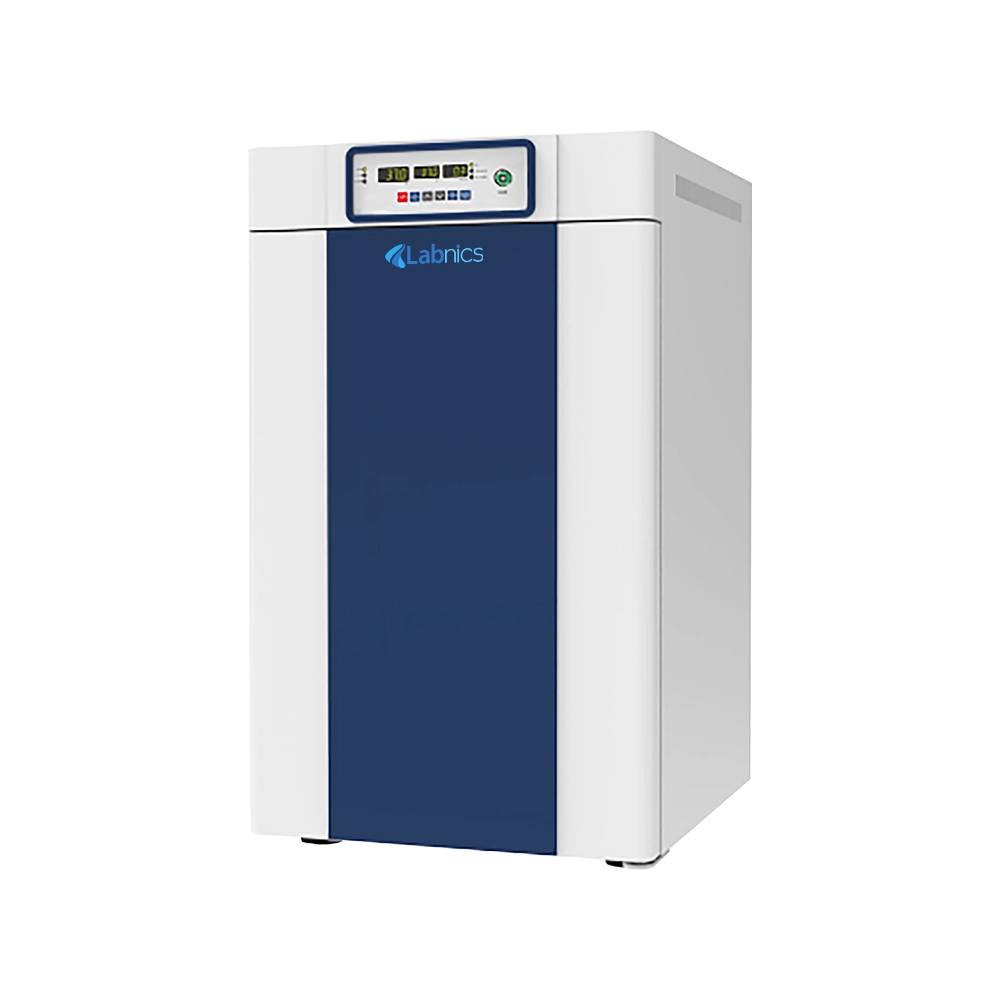

Tri Gas Incubator NTGI-100

Tri Gas Incubator NTGI-100

Tri Gas Incubator NTGI-100 offers a 180-liter capacity and operates effectively between ambient +5℃ to 60℃ temperatures. It integrates microprocessor PID control for efficient management of CO₂ levels, ensuring optimal conditions. Our incubator includes HEPA filtration for superior air quality and to control contamination. It uses a dual-beam IR CO₂ sensor for precise CO₂ detection across temperature and humidity changes.


Catalog

Specifications

Volume 180 L
Temperature Range Ambient +5℃ to 60℃
Temperature Accuracy ±0.1℃ (37℃)
Temperature Resolution 0.1℃
Temperature Control Digital PID
CO₂ Range 0% to 20%
CO₂ Accuracy ±0.1% (5% / 37℃)
CO₂ Resolution 0.001
CO₂ Sensor IR CO₂ Sensor
CO₂ Control Microprocessor
Inlet pressure range 0.6 to 0.7bar
O₂ Range 0.6 to 85%
O₂ Sensor Zirconium dioxide sensor
Display LED Display
Operating panel Individual 2-Channel Touch Button
Jacket type Dry Wall Type (six-side gradient heating design)
Chamber material Stainless Steel (304)
IP code IP20
Number of shelves 3 (max 8)
Power 230V, 50Hz
Chamber dimension 538 × 473 × 710 mm
Overall dimension 560 × 620 × 945 mm
Weight 78 kg

Features

  • Drywall with an air jacket minimizes heat loss
  • Buzzer alarms for CO₂ and temperature deviations
  • Overheat protection
  • Perforated stainless steel shelves for effective air circulation
  • Separate sensors for precise temperature control
  • Front door and frame heaters prevent condensation
  • Circulation fan for gentle convection of air and moisture

Applications

  • Tri Gas Incubator is used for precise environmental control in cultivating and experimenting with biological samples. It finds applications in laboratories and research facilities for controlled environments in cell culture, microbiology, tissue culture, and pharmaceutical testing.

Standard Accessories

Blue PVC Tube × 3
Shelf × 3
Power Cord × 1
485 Communication Joint × 1
Water Pan
HEPA (High-Efficiency Particulate Air Filter)

Optional Accessories

Holes for auxiliary monitoring

Ask Expert

Anaerobic Incubator

Labnics Anaerobic Incubator utilize deoxidization catalysts to maintain low-oxygen environments essential for anaerobic conditions. They include overheating alarms to ensure safe operation and prevent temperature fluctuations. These incubators integrate UV sterilizers that effectively prevent bacterial contamination, providing a sterile environment. Our units feature USB interfaces for extended data storage capabilities. They feature large color touch screens for intuitive operation.

Anaerobic Incubator NAC-100

Temperature Range RT +3~60°C
Temperature stability <±0.3°C
Temperature uniformity < ±0.1°C
Catalog

Anaerobic Incubator NAC-101

Temperature range RT +3 to 60℃
Temperature Uniformity < ±1℃
Temperature fluctuation < ±0.3℃
Catalog

Biochemical Incubator

Labnics Biochemical Incubator feature automatic control compressors for precise temperature regulation and consistent performance. Our units include backup temperature control for continuous operation during main control failure. They are crafted from stainless steel chambers with adjustable shelves for easy cleaning and maintenance. They include built-in leakage protection systems to enhance safety during operation. Our biochemical incubators include large LCDs for clear and easy monitoring of parameters.

Biochemical Incubator NBCI-100
Capacity 300 L
Temperature range 0~60 ℃
Display Resolution 0.1 ℃
Catalog
Biochemical Incubator NBCI-101
Capacity 250 L
Temperature Range 0 to 60 ℃
Temperature Fluctuation ±0.5 ℃
Catalog

Biochemical Incubator NBCI-102

Capacity 80 L
Temperature Range 0°C to 50°C
Temperature Accuracy 0.1°C
Catalog

BOD Incubator

Labnics BOD Incubator are crafted from stainless steel inner chambers and adjustable shelves for durability and flexible storage. They utilize advanced air-cooled compressors for efficient cooling, ensuring reliable performance. Our incubators are equipped with LCDs for precise temperature control and easy monitoring. These units include an over-temperature alarm for enhanced safety during operation. They employ CFC-free refrigerants, prioritizing environmental sustainability and regulatory compliance.

BOD Incubator NBI-100

Temp. range 0 to 65℃
Temp. Resolution Ratio 0.1℃
Temp. Uniformity ±1.5℃
Catalog

Constant Temperature Incubator

Labnics Constant Temperature Incubator uses air circulation for uniform heat distribution, ensuring consistent temperature conditions. They feature PID controllers for precise temperature regulation, ensuring optimal performance. Our incubators include safety features to prevent overheating, ensuring safe and reliable operation. They are equipped with interior glass doors for easy sample observation while maintaining internal conditions. These incubators are equipped with an LCD to monitor time and temperature parameters.

Constant Temperature Incubator NCTI-100
Volume 30 L
Air circulation Forced air convection
Temperature Range + 5°C – 120°C
Catalog
Constant Temperature Incubator NCTI-101
Volume 45 L
Air circulation Forced air convection
Temperature Range + 5°C – 120°C
Catalog

Constant Temperature Incubator NCTI-102

Volume 65 L
Air circulation Forced air convection
Temperature Range + 5°C – 120°C
Catalog

Hybridization Incubator

Labnics Hybridization Incubator utilizes a microcomputer controller for precise temperature regulation. These incubators feature interchangeable rocking and rotating motions, offering flexibility in handling various sample types. They include a shaker base with adjustable speed for optimal mixing during operation. Our incubators support a wide range of nucleic acid hybridization techniques, ensuring versatility.

Hybridization Incubator NHI-101

Sample capacity 6 hybrid tubes
Hybrid tube size 35 × 240 mm
Temperature range Ambient + 5°C - 100°C
Catalog
Hybridization Incubator NHI-102
Sample capacity 6 hybrid tubes
Hybrid tube size 35 × 240 mm
Temperature range Ambient + 5°C - 100°C
Catalog
