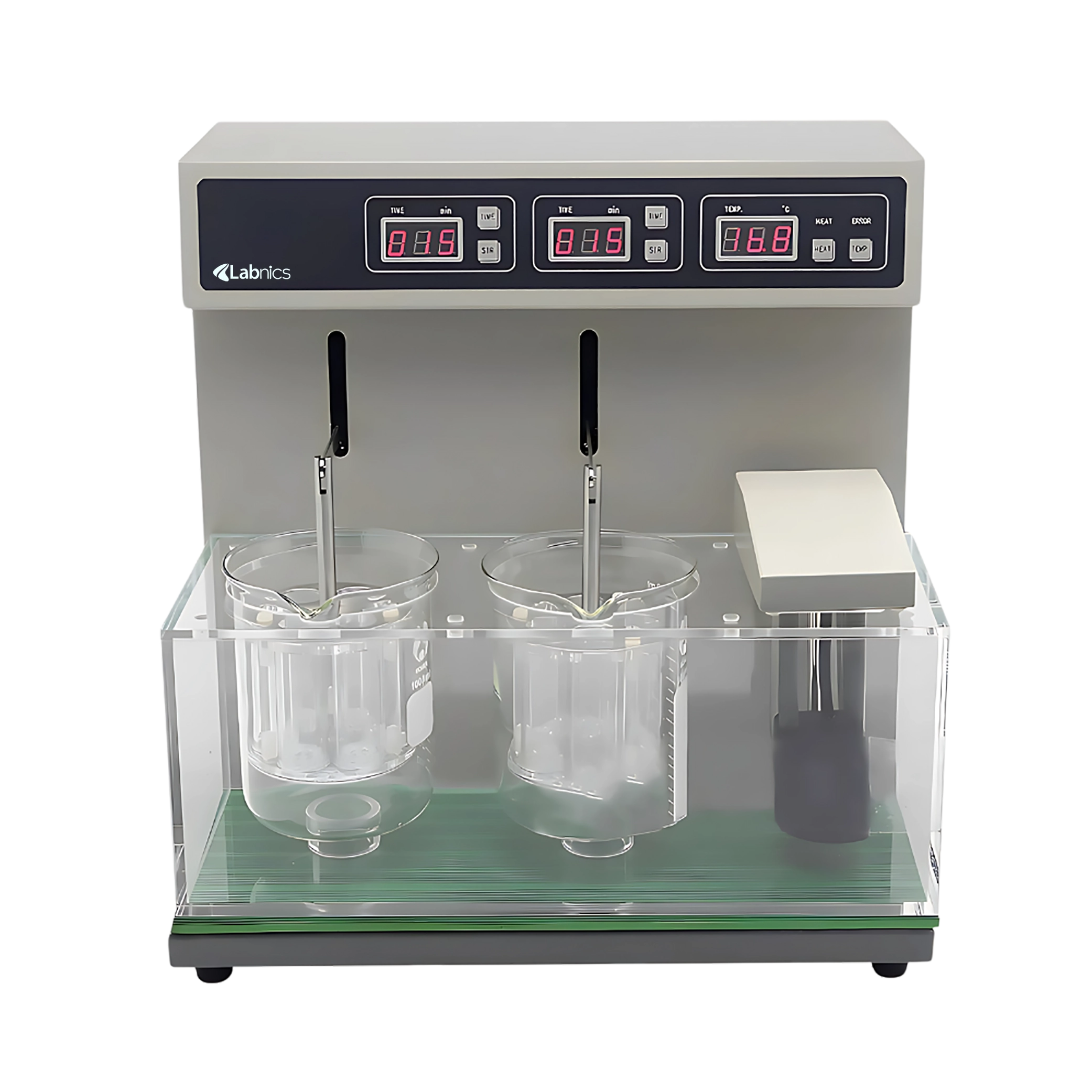

Disintegration Tester NDT-101
Disintegration Tester NDT-101 is a pharmaceutical testing instrument composed of a beaker vessel apparatus. It helps to determine the time taken for the invitro breakdown of any solid drug formulation within controlled conditions. It is equipped with an electronic sensor that monitors the temperature, time and frequency of the process. The microprocessor-controlled apparatus featured with an automation system for functions like auto diagnose and auto alarm.

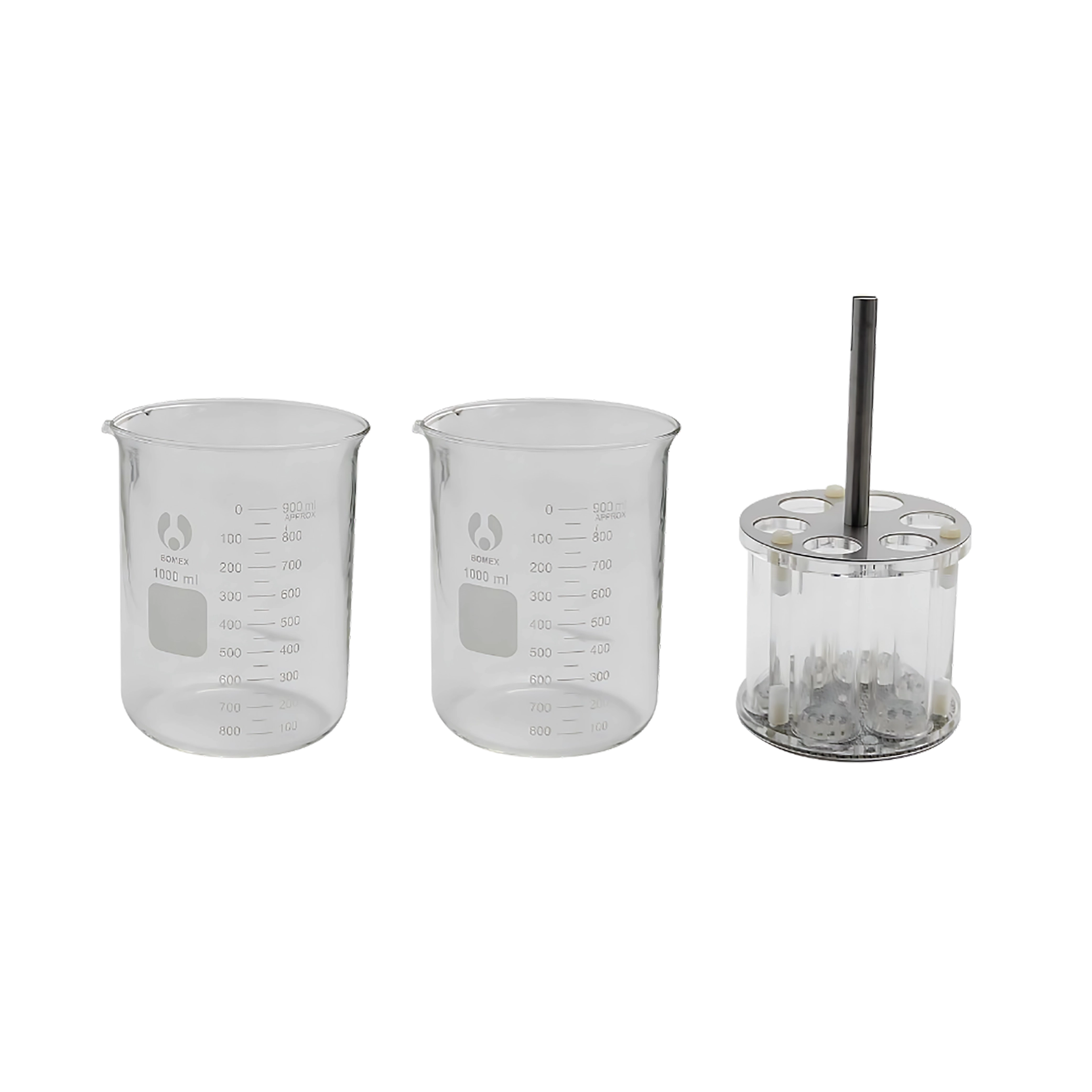

Beaker assembly | 2 |
Nacelle up and down frequency | 30 - 32 times/min |
Nacelle up and down range | 54-56 mm |
Automatic time range | 1-900 minutes |
Time accuracy | ± 0.5 minutes |
Beaker capacity | 1000 ml |
Controlling temperature range | Room temperature to 45 °C |
Accuracy of controlling temperature | ±0.5°C |
Power consumption | 600 W |
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
Dimension (W×D×H) | 400 x 300 x 420 mm |
Weight | 16 kg |
It is widely used for crucial assessment of the parameters to meet the quality control standards of Pharmacopeia in pharmaceutical industries. Also, in food and drug testing laboratories, Pharmacovigilance and Pharmacodynamics department in areas of clinical research, animal feed and pesticides testing laboratories etc.
