Digital Heating Mantle NDHM-206

Digital Heating Mantle NDHM-206

Digital Heating Mantle NDHM-206

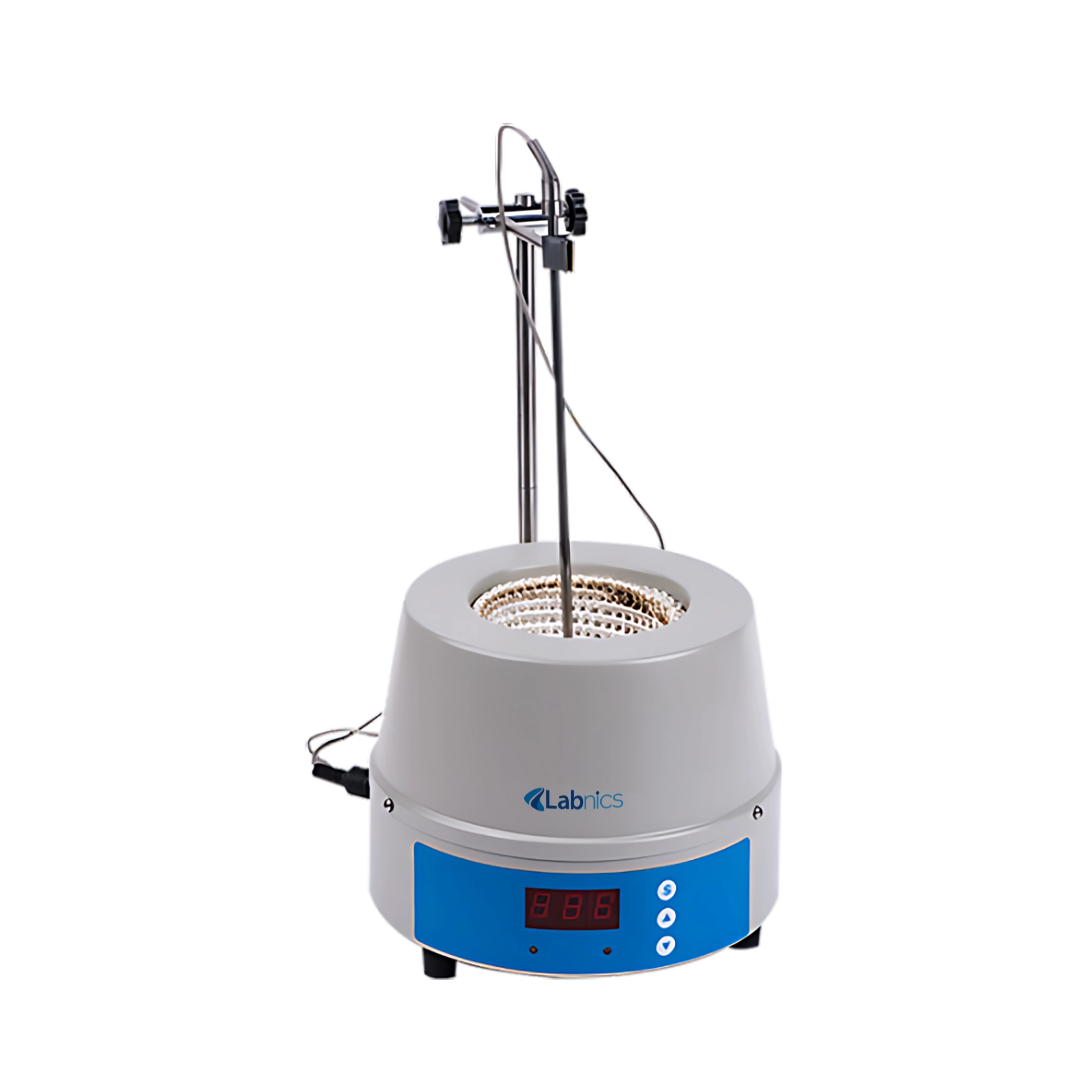

Digital Heating Mantle NDHM-206 is a compact laboratory equipment which is used to heat or temper a liquid by means of the heating elements present in the heating mantle. Equipped with PID temperature controller, it employs magnetic stirring with uniform heat distribution for round bottom flasks. The mantle is designed in a manner to securely hold flasks so that the top half of the flask is easily visible during operation.

Specifications
Capacity 3000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Speed 0 ~ 1400 rpm
Power 600 W
Heating element Nichrome wire
Working time Continuous
Exterior dimension φ 340 × 245 mm
Packaging dimension 365 × 365 × 295 mm
Power supply AC 110/220 V , 50/60 Hz
Net Weight 7.5 kg
Gross Weight 8 kg
Features
Applications

They are widely used for scientific experiments in across various laboratories for heating/ tempering liquid samples.

Buy Now

Digital Heating Mantle


Electric Heating Mantle NEHM-100

Capacity 50 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 80 W

Electric Heating Mantle NEHM-101

Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 100 W
Electric Heating Mantle NEHM-102
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 150 W
Electric Heating Mantle NEHM-103
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 250 W

Electric Heating Mantle NEHM-104

Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 350 W

Electric Heating Mantle NEHM-105

Capacity 2000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 450 W

Electric Heating Mantle NEHM-106

Capacity 3000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 600 W
Electric Heating Mantle NEHM-107
Capacity 5000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 800 W
Electric Heating Mantle NEHM-108
Capacity 10000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 1200 W

Electric Heating Mantle NEHM-109

Capacity 20000 ml
Heating mode Surface heating conduction
Maximum temperature 380 °C
Power 2500 W

Multi-Position Heating Mantle NMHM-100

No. of slots 2
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-101
No. of slots 2
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-102
No. of slots 2
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-103

No. of slots 2
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-104

No. of slots 4
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-105

No. of slots 4
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-106
No. of slots 4
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-107
No. of slots 4
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-108

No. of slots 6
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-109

No. of slots 6
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-110

No. of slots 6
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-111
No. of slots 6
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-200
No. of slots 2
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-201

No. of slots 2
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-202

No. of slots 2
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-203

No. of slots 2
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-204
No. of slots 4
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-205
No. of slots 4
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-206

No. of slots 4
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-207

No. of slots 4
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-208

No. of slots 6
Capacity 100 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-209
No. of slots 6
Capacity 250 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
Multi-Position Heating Mantle NMHM-210
No. of slots 6
Capacity 500 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C

Multi-Position Heating Mantle NMHM-211

No. of slots 6
Capacity 1000 ml
Heating mode Surface heating conduction
Maximum temperature 450 °C
