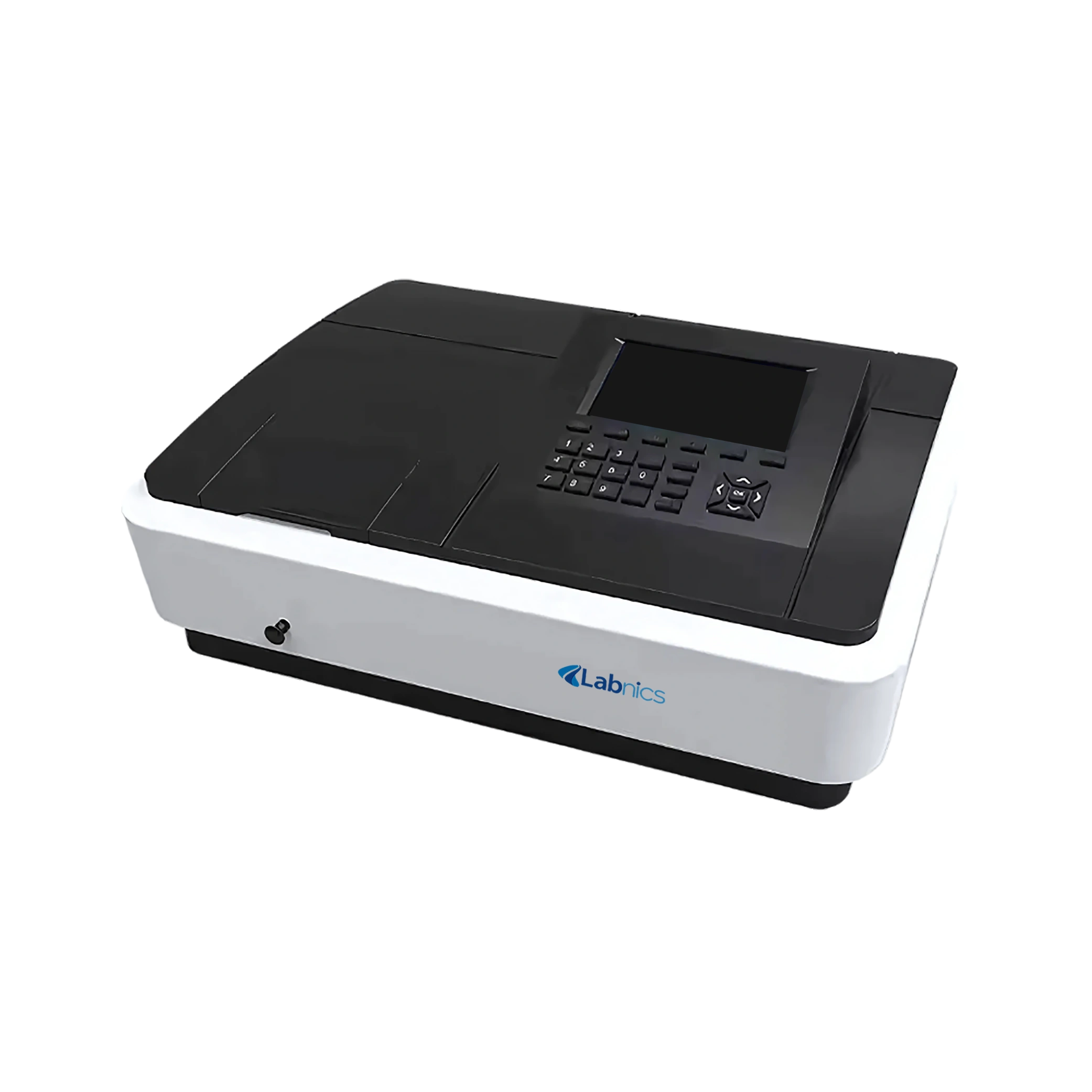

Single Beam UV-Vis Spectrophotometer NSUVS-301 covers a broad wavelength range from 190 to 1100 nm. It features a narrow slit width of 1 nm for precise measurements. This unit supports multiple working modes to meet different testing needs. It uses a high-efficiency holographic grating with 1200 lines/mm for improved wavelength separation. Our spectrophotometer comes with a large color LCD screen and soft, durable silicone buttons for easy operation.
0.2%T (0 to 100%T), ±0.002A (0 to 0.5A), ±0.004A (0.5 to 1A)
Photometric repeatability
≤0.15%T (0 to 100%T), 0.001A (0 to 0.5A), 0.002A (0.5 to 1A)
Stray light
≤0.03%T at 220nm,360nm
Stability
±0.002A/h at 500nm
Baseline flatness
±0.002A (200 to 1000nm)
Noise
0.0003A at 500nm
Working mode
T, A, C, E
Wavelength setting
Automatic
Scanning speed
High, medium, and low (up to 3000 nm)
Detector
Solid silicon photodiode
Light source
Tungsten halogen/deuterium lamp
Display
7-inch LCD screen
Keyword control
Silicone button
Data output
RS232, USB(A), USB(B)
Processor
Cortex_M3, 120Mhz
Packaging dimension
790×660×370 mm
Weight
28 kg
Features
Fast data processing
Long lamp lifespan
USB data output
High sensitivity detector
Stable optical system
Large sample chamber
Easy lamp replacement
Applications
Single Beam UV-Vis Spectrophotometer NSUVS-301 is used to measure the absorbance and transmittance of light in samples for accurate analysis. It is applied in laboratories, research centers, and quality control in industries like pharmaceuticals, environmental testing, and food safety.
Standard Accessories
Glass cuvettes (10mm)- 4pcs
Quartz cuvettes (10mm)- 2pcs
Power cable
4-position 1 cm cell holder
USB
Ask Expert
FAQ for Single Beam UV-Vis Spectrophotometer NSUVS-301
1: Can the Single Beam UV-Vis Spectrophotometer NSUVS-301 connect to other devices?
The Single Beam UV-Vis Spectrophotometer NSUVS-301 offers multiple ports, including RS232 and USB for printer connection, data transfer, and PC communication. This ensures smooth integration into your existing lab setup and convenient printing or exporting of results.
2: How easy is the Single Beam UV-Vis Spectrophotometer NSUVS-301 to operate?
The large 7-inch color LCD screen, combined with soft silicone buttons, offers an intuitive and comfortable user experience. You can view scanning curves and charts directly on the screen without requiring a computer.
3: Can the Single Beam UV-Vis Spectrophotometer NSUVS-301 store and export data?
Yes, our Single Beam UV-Vis Spectrophotometer NSUVS-301 supports USB storage and outputs data in multiple formats, such as Excel and TXT, making it easy to transfer and analyze results on your computer. This flexibility simplifies data management without needing extra software.
Labnics Single Beam UV-Vis Spectrophotometer provides precise wavelength control for accurate and reliable analytical results. They are equipped with digital displays for clear and accurate viewing of measurement results. These units have a compact and lightweight design for easy placement and portability. They offer USB connectivity for convenient data transfer and integration with external devices. Our spectrophotometers offer a wide absorbance range for reliable analysis of varying sample concentrations.
