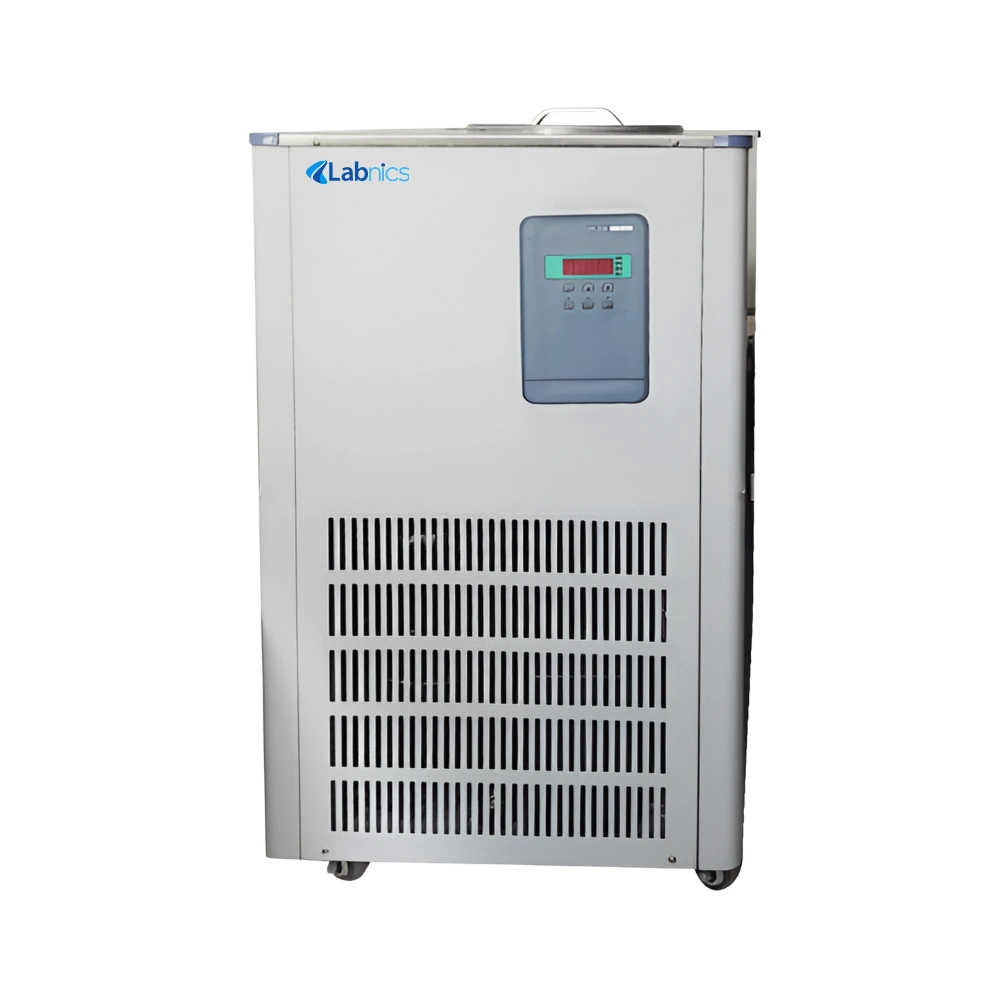

Recirculating Chiller NRC-301 supports a temperature range from -30°C to RT, making it suitable for low-temperature applications. It features a heat exchange area of 39㎡, ensuring efficient thermal transfer. This unit comes with a powerful 7P compressor that delivers reliable cooling performance. It uses a PT100 temperature sensor to provide high-precision temperature readings. Our chiller includes an LCD screen with key-based operation for simple and intuitive control.
$7,587.00
| Tank capacity | About 98L |
| Temperature range | -30°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 30 to 50L/min |
| Lifting head | 10 to 12M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 39㎡ |
| Air volume | 6800m³/h |
| Refrigerant | R22 |

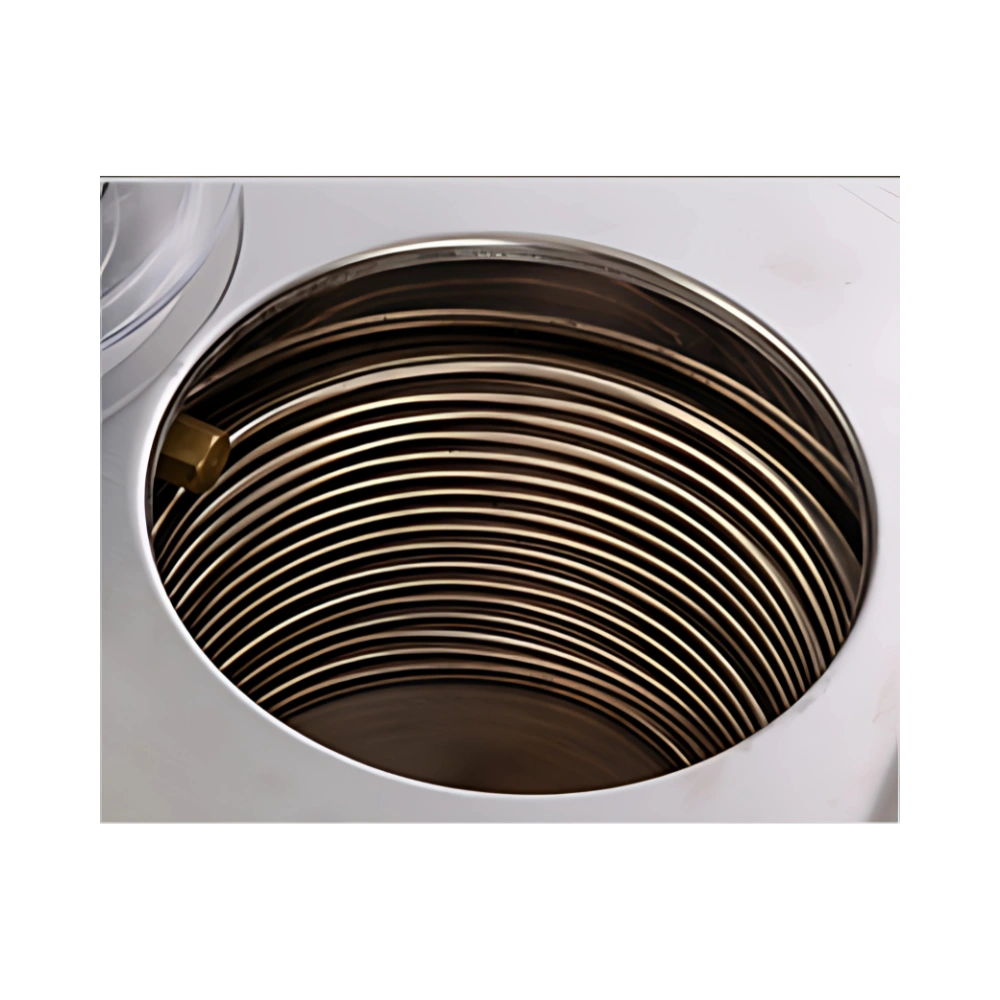

| Condensing coil | Φ19 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 7P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating, phase sequence, phase loss protection |
| Compressor power | 5145W |
| Cooling capacity | 13944W |
| Total power consumption | 5785W |
| Outer loop interface | Φ19mm |
| Tank dimension | Φ500×500 mm |
| Product dimension | 845×1100×1365 mm |
| Packaging dimension | 1190×880×1540 mm |
| Weight | 230 kg |
| Packaging weight | 270 kg |
Microcomputer temperature control
Adjustable flow circulation
Anticorrosive body design
R22 refrigerant use
External loop interface
Closed-loop refrigeration system
Air-cooled compressor unit
Recirculating Chiller NRC-301 is used to provide precise and efficient low-temperature cooling for chemical reactions, sample preservation, and equipment protection. It is commonly used in laboratories, pharmaceutical production, chemical processing units, and research facilities.
1: Is the Recirculating Chiller NRC-301 suitable for use in tough environments?
Our Recirculating Chiller performs efficiently even under water-scarce or high-temperature conditions. The cold-plate anticorrosion design adds durability for long-term use in various settings.
2: What materials are used in construction?
The Recirculating Chiller has a cold-plate body with an anticorrosion spray finish for long-term durability. This makes it resistant to chemical exposure and moisture, extending its service life.
3: Does the Recirculating Chiller NRC-301 require regular maintenance?
The Recirculating Chiller requires minimal routine maintenance like checking refrigerant levels and cleaning filters. Proper upkeep ensures consistent performance and extends equipment lifespan.
4: How noisy is the Recirculating Chiller NRC-301 during operation?
Our Recirculating Chiller operates quietly due to its closed-loop air-cooled compressor design. This makes it suitable for noise-sensitive lab or industrial environments.
5: What parts need regular cleaning?
It’s important to clean the air filters, condenser fins, and outer surfaces regularly. This prevents overheating and helps maintain efficient airflow and cooling performance.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
