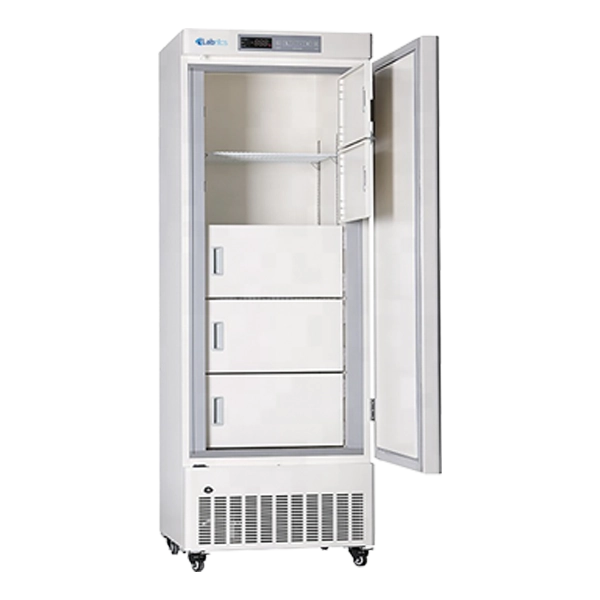

Deep Freezer NDF-102

Deep Freezer NDF-102 is an ergonomically designed upright cold storage system with a low-temperature range of -10^oC to -25^oC . It is a microprocessor-controlled system that enables effective and safe storage of medical and pharmaceutical vaccines, blood plasma, serum and many other biological materials etc. It is compartmentalized with an inner door for each cabinet that prevents loss of cooling temperature and maintains uniform temperature stability. It is equipped with a visual and audible alarm system, ensuring the safety of the equipment against power or thermostat failure.

---

Get Quote Catalog

Specifications

Capacity (L)	328 L
Cooling method	Direct Cooling
Defrost	Manual
Refrigerant	R290
Power consumption(kWh/24h)	3
Noise（db)	46
Ambient temperature（°C）	10~32 °C
Temperature range(°C)	(-10℃ ~ -25℃)
Power Supply (V/Hz)	187~242/50~60; 115/60
Power (W)	280W
Current (A)	1.4 A
External Dimensions (W×D×H)	690×680×1900 mm
Internal Dimensions (W×D×H)	508×455×1393mm
Net weight	104 kg

Features

• Embedded handle design
• High Definition Digital display
• Secured Digital door lock setting with password for authorized access only
• Chemically stable, CFC-free, hence environmentally safe refrigerant
• Visual and audible alarm system for temperature fluctuations, sensor error, door ajar, and thermostat failure etc
• Easy maintenance of memory functions of standard working cycle in spite of any sensor failure

Applications

• It is widely used in scientific research institutes, Cell culture laboratories, blood banks, and in areas like Clinical research, Biomedical and biotechnology based industries.

Standard Accessories

Accessories No	Name
1	4 x Caster
2	Remote alarm port

Optional Accessories

Accessories No	Name
1	Test hole
