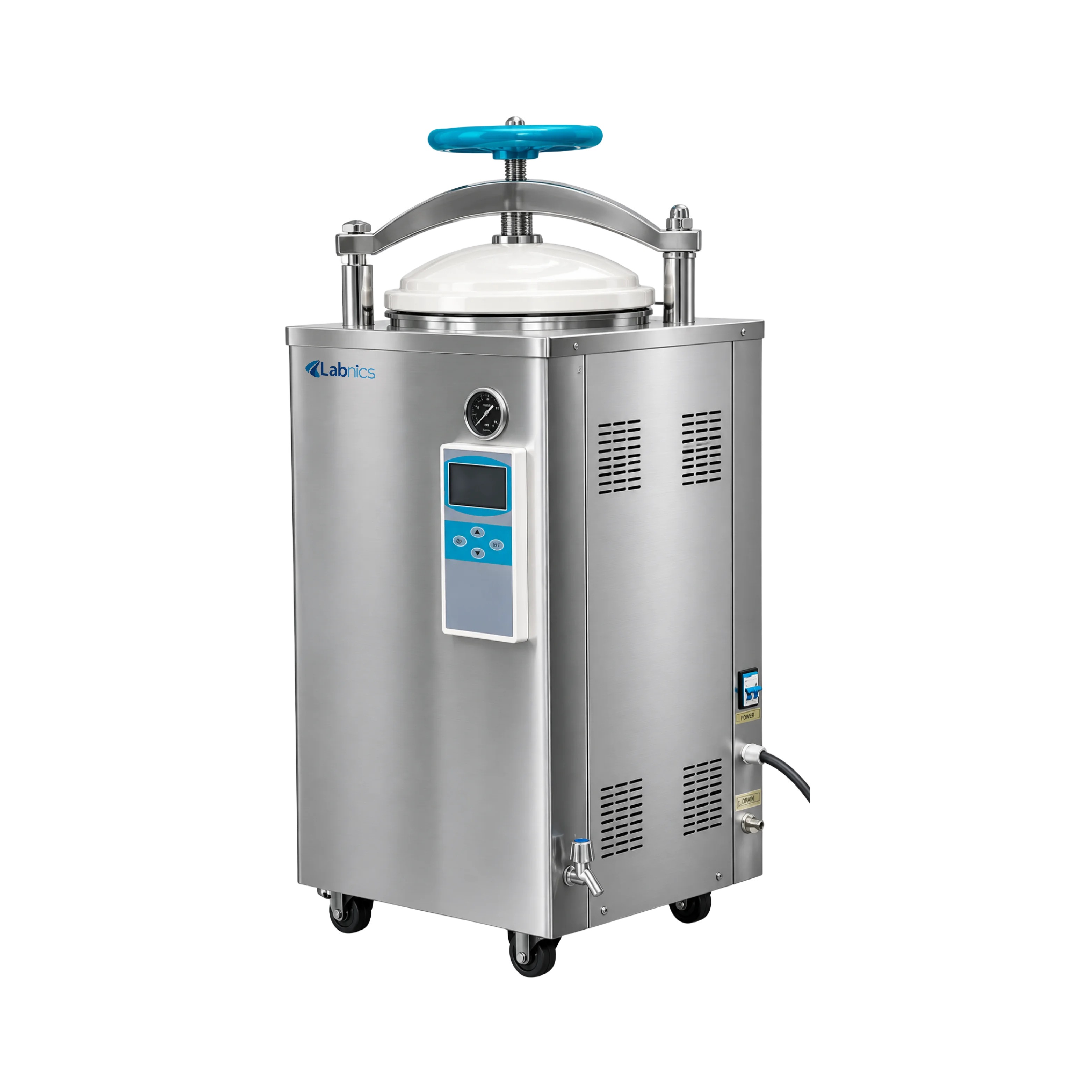

Vertical Autoclave NVA-100
Vertical Autoclave NVA-100 is a vertical pressure steam sterilizer with an automatic pressure-temperature controller. It functions with a combination of high temperatures and pressure to decontaminate and sterilize biological waste, culture media, instruments and lab ware. The whole body is a highly durable stainless steel with an installed electric heater to bring about effective sterilization. It is user-friendly and works with low-energy consumption.
| Capacity | 35 L |
| Body | 304 Stainless Steel |
| Door | Wheel-type, Quick-open door |
| Chamber Volume | ∮ 318 × 450 mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Maximum Working Pressure | 0.23MPa |
| Heat Fluctuation | ≤ ± 1°C |
| Timer Range | 0-99 min / 0-99 hour 59 min |
| Temperature adjust range | 105°C - 134°C |
| Power | 2.5 kW/ AC220V, 50Hz |
| Display | LED display |
| Overall Dimension | 480 × 460 × 850 mm |
| Packing Dimension | 570 × 550 × 970 mm |
| Net Weight | 42 kg |
| Gross Weight | 56 kg |
Employed for sterilization in microbiological, pharmaceutical, clinical and hospital labs.
| Accessories No | Name |
| 1 | Pressure gauge |
| 2 | Water level controller |
| 3 | Heating element |
| 4 | Wire baskets |
| 5 | Silicon gasket for the lid |
| 6 | Soft tube |
| 6 | Spanner |
| 6 | Power cord |
Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.
Labnics Horizontal Autoclave includes safety features such as over-temperature and pressure protection. They offer automatic-controlled functions for smooth and efficient sterilization operations. These autoclaves have a drying option for the complete drying of items after the process. They include an automatic shutdown control after sterilization for safety. Our units are equipped with LED displays for clear and easy monitoring.
| Capacity | 150 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 440 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 200 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 515 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 280 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 600 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 400 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1100 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 500 L |
| Body | 304 Stainless Steel |
| Chamber Volume | ∮ 700 × 1300 mm |
| Working Pressure | 0.22 Mpa |
| Capacity | 150 L |
| Body | Stainless Steel |
| Type | Pressure Steam Sterilization |
| Chamber Volume | Φ 440 × 1000 mm |
Labnics Tabletop Autoclave offers an automatic pressure-temperature control system for optimal sterilization conditions. They have an automatic shutdown mechanism that activates after the sterilization cycle. These autoclaves include a safety lock function for secure closure during operation. Our units feature a durable construction that ensures long-lasting and reliable performance. They have a user-friendly interface with digital displays and touch-type controls for easy handling.
| Capacity | 20 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 420 mm |
| Capacity | 24 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 250 × 520 mm |
| Capacity | 35 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 300 × 500 mm |
| Capacity | 50 L |
| Body | 304 Stainless-steel |
| Type | Front loading |
| Chamber volume | ∮ 340 × 550 mm |
| Capacity | 45L |
| Working Temperature | 134℃ |
| Working Pressure | 0.22 Mpa |
| Maximum Temperature | 139℃ |
| Capacity | 8L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 12L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 18L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
| Capacity | 23L |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Design temperature | 139°C |
Labnics Portable Autoclaves offers a range of capacities to suit various sterilization needs. They feature a fully stainless-steel design for enhanced durability. These autoclaves include an LED display for easy monitoring of the working status. Our units offer a quick-opening door with a hand-wheel structure for smooth operation. They ensure safe operation with automatic shut-off and a beep sound after sterilization.
| Capacity | 18 L |
| Chamber Volume | ∮ 280 × 260 mm |
| Working Pressure | 0.14 to 0.16 Mpa |
| Working Temperature | 126 °C |
| Capacity | 24 L |
| Chamber Volume | ∮ 280 × 390 mm |
| Working Pressure | 0.14 to 0.16 Mpa |
| Working Temperature | 126 °C |
Labnics Cassette Autoclave features stainless steel construction providing durability and corrosion resistance. They have user-friendly controls that allow for easy and intuitive operation. They include adjustable temperature settings for precise control. These autoclaves include alarms and interlocks for enhanced safety and reliability. Our units provide optimal performance with minimal maintenance.
| Chamber volume | 6 L |
| Sterilization temperature | 115 ℃ to 135 ℃ (Selectable) |
| Ambient temperature | 5 to 40 ℃ |
| Working pressure | 42 kPa to 212 kPa |
Labnics Vacuum Autoclave includes automatic systems for water supply and steam injection, enhancing operational efficiency. They have a lifting door with removable racks for easy access and efficient loading. They feature alarms to indicate high temperature and pressure conditions for enhanced safety. These Vacuum Autoclaves include sensors for monitoring operational parameters for safe and efficient operation. Our units are equipped with a touchscreen control system that simplifies operation.
| Capacity | 250 L |
| Working Pressure | 0.00 to 3.50 bar |
| Working Temperature | 100℃ to 135℃ |
| Holding Time | 05 min to 30 min |
Labnics Pulse Vacuum Autoclaves employ high-temperature steam and a pulsating vacuum for effective sterilization. They ensure uniform conditions with precise temperature and pressure controls. These units are made from durable, corrosion-resistant materials for long-lasting performance. They feature self-diagnostic mechanisms that continuously monitor for errors or malfunctions. Our pulse vacuum autoclaves include an easy-to-read digital display that provides real-time data on the sterilization process.
| Capacity | 1200L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 1500L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 2000L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 1000L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 2500L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 3000L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 4000L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 250L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 360L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 600L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
| Capacity | 800L |
| Pressure of inner chamber | -0.1 to 0.3Mpa |
| Pressure of jacket | 0.3Mpa |
| Designed temperature | 150°C |
