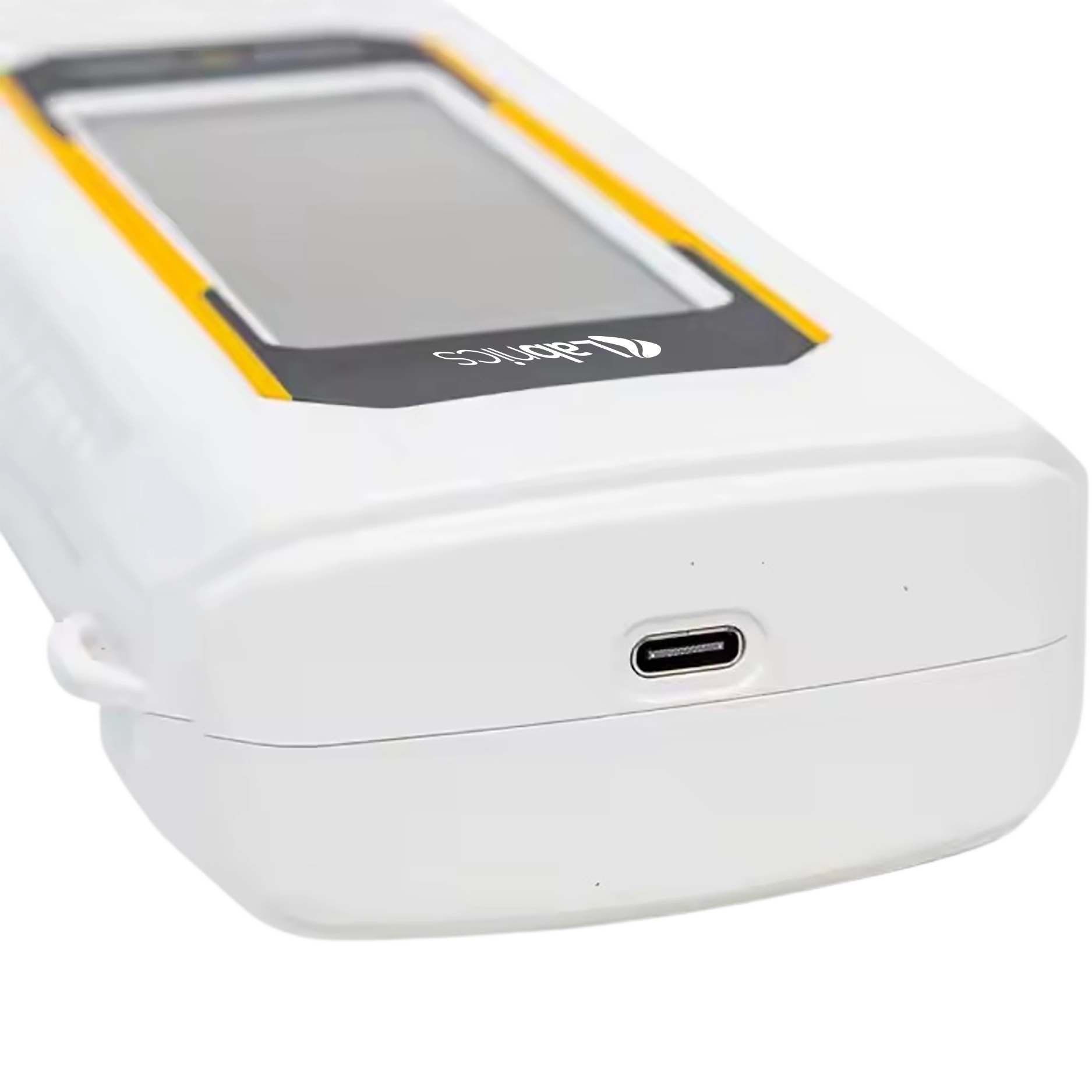

Portable Grain Hardness Meter NGHM-100 offers a 50 kg maximum load capacity for accurate grain texture evaluation. It features an adjustable screen and energy-efficient display for convenient field operation. This handheld unit enables real-time peak detection using advanced sensor technology. It supports internal data logging for streamlined result tracking and management. Our hardness meter ensures reliable testing across lab and field environments with extended battery support.
$1,475.00
| Maximum Load Value | 50 kg / 500 N |
| Measurement Type | Non-destructive force measurement |
| Resolution | 0.01 N |
| Measurement Accuracy | ±0.1% FS |
| Measurement Units | kg, N, lb, kPa |
| Storage Capacity | Over 10,000 entries |
| Data Grouping | Supports ≤200 groups, 96 entries per group |
| Display Orientation | Rotatable screen |
| Battery Life | 12-hour continuous use per charge |
| Alerts | Overload and low battery audible warnings |
| Connectivity | Bluetooth sync to mobile app |
| Multi-Platform Access | Compatible with device, PC, mobile, cloud |
| Data Features | Save/search/delete by time, ID, location |
| Screen Features | Adjustable brightness, backlight, auto-shutdown |
| Units Switching | Instant toggle between kg, N, lb, kPa |
| Power Supply | AC100 to 240 V, 50/60 Hz |
| Dimensions (L×W×H) | 340× 85× 49 mm |
| Weight | 1 Kg |
Portable Grain Hardness Meter NGHM-100 enables evaluation of grain texture and small agricultural materials through accurate force measurement. It is suitable for research centers, agricultural institutes, quality control labs, and seed processing facilities.
1: What types of materials can be tested using the Portable Grain Hardness Meter NGHM-100?
Portable Grain Hardness Meter can test grains like rice, corn, and wheat, as well as seeds, pills, nuts, and snacks. It accommodates a wide range of agricultural and horticultural materials without damaging the samples. This versatility makes it ideal for quality assurance in various sectors.
2: How does the Portable Grain Hardness Meter NGHM-100 support accurate testing?
Our Portable Grain Hardness Meter uses advanced sensor technology for precise and repeatable force measurement. It operates with high accuracy and a real-time peak detection function for dependable results. The non-destructive method preserves the tested material throughout.
3: Is the device capable of storing large test data sets?
Yes, the Portable Grain Hardness Meter stores over 10,000 results with group-based entry tracking. It supports batch analysis with max, min, and average values for each group. Records can be searched and managed by time, ID, or sample location.
4: How does Labnics Portable Grain Hardness Meter NGHM-100 ensure user convenience in data handling?
Labnics Portable Grain Hardness Meter features Bluetooth connectivity for wireless transfer to mobile apps. Data can be uploaded to cloud platforms or reviewed on computers and smart devices. This multi-platform support simplifies storage, access, and archiving.
5: What features make it suitable for field as well as lab testing?
Our Portable Grain Hardness Meter combines compact size, battery-powered operation, and an adjustable display screen. It delivers consistent performance regardless of the testing environment. The ergonomic design ensures ease of use during both on-site and lab applications.
6: What measurement technology is used in Grain Hardness Meters?
Grain Hardness Meters typically use precision load cells paired with digital force sensors to capture real-time and peak values. This technology ensures high accuracy, repeatability, and reliable evaluation of grain and seed firmness. They provide consistent measurements across a range of test samples and conditions.
7: How do Labnics Grain Hardness Meters support long-term use?
Labnics Grain Hardness Meters are built with rugged construction, efficient electronics, and stable measurement systems. They feature auto-shutdown functions, low-power alerts, and long-life batteries for extended testing sessions. These meters are suited for continuous use in demanding environments.
8: Do Grain Hardness Meters support multi-unit conversions?
Yes, Grain Hardness Meters typically allow users to switch between multiple units such as kg, N, lb, or kPa. This makes them adaptable for different standards across regions or institutions. Unit flexibility enhances compatibility with diverse testing protocols.
9: What makes our Grain Hardness Meters user-friendly?
Our Grain Hardness Meters are equipped with digital interfaces, adjustable displays, and intuitive menu navigation. They require minimal setup and reduce operator workload during repetitive testing. Their ergonomic design improves handling and overall user efficiency.
