Temperature Data Logger NTDL-200

Temperature Data Logger NTDL-200

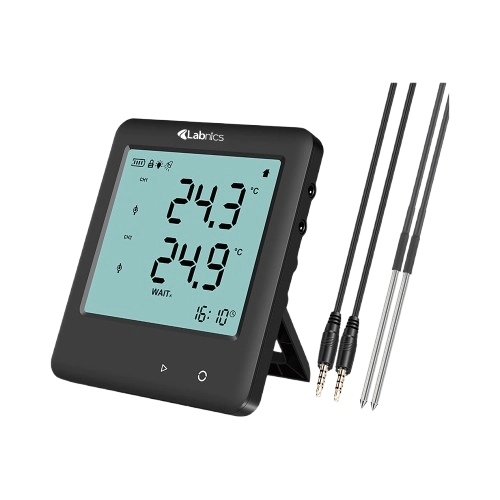

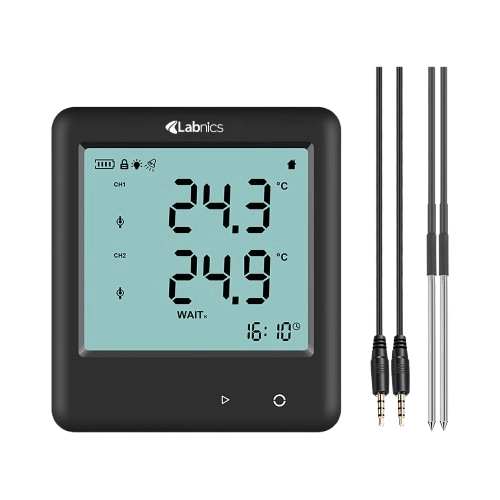

Temperature Data Logger NTDL-200 uses an external probe to measure temperature within a wide range of -40°C to +125°C. It is equipped with a large 3.9-inch dot matrix LCD screen featuring a backlight for clear visibility. This unit supports exceed-limit alarms to alert users when temperature thresholds are crossed. It is built with durable ABS material for long-lasting performance. Our data logger includes a massive storage capacity, allowing extensive data recording.


$913.00

Catalog

Specifications

Temperature range -40°C to +125°C
Temperature accuracy ±0.3°C (-10°C to +65°C)
±0.6°C (Others)
Temperature resolution 0.1°C
Operating temperature -30°C to +65°C
Storage temperature -30°C to +65°C (No battery)
Probe type External
Unit °C, °F
Response time(t90) 5 mins
LCD refresh interval 5 secs
Display refresh interval 5 secs
Storage 25920 or 500000 measurement data
Display Dot matrix LCD
Bluetooth and APP Not supported
Protection class IP20
Battery life About 1 year
Power supply 3 pcs 1.5V AAA alkaline battery
USB 5V/2A
Material ABS
Dimension 108×96×20mm
Weight About 120g (No battery)

Features

  • Multiple file formats
  • Touch-sensitive buttons
  • Calibration supported
  • Low battery protection
  • Power failure memory
  • Multi-power supply
  • Compact and portable

Applications

  • Temperature Data Logger NTDL-200 is used to monitor and record temperature accurately to ensure optimal conditions and prevent damage or loss. It is commonly applied in agricultural greenhouses, breeding facilities, museums, laboratories, hospitals, production and transportation chains, quality inspection sites, warehouses, and home or office environments.

Ask Expert

FAQ for Temperature Data Logger NTDL-200

1: What happens if the battery runs out or power is lost?

The Temperature Data Logger has a data protection feature that keeps all your logged readings safe, even during a power failure or battery change.

2: How much data can this Temperature Data Logger NTDL-200 store?

The Temperature Data Logger supports a huge storage capacity of up to 500,000 readings, which means you do not have to worry about running out of memory during long-term monitoring.

3: What is the response time of the temperature readings?

The Temperature Data Logger has a response time (t90) of about 5 minutes, which is fast enough for most monitoring scenarios where temperature changes gradually.

4: Can I use different types of probes with Temperature Data Logger NTDL-200?

Yes, it supports multiple external probe types, allowing you to choose based on your specific application or installation environment.

5: How often does the Temperature Data Logger NTDL-200 need maintenance?

The data logger requires minimal maintenance—just periodic battery replacement and occasional cleaning of the probe and screen to ensure proper operation.

6: Do data loggers require regular maintenance?

Periodic maintenance is essential for ensuring accurate readings and prolonging the life of the data logger. Routine tasks such as cleaning, calibration checks, and battery replacement help maintain optimal performance. Regular upkeep ensures the device operates reliably and efficiently over time.

7: How much data can the Data Logger store?

The data loggers offer high storage capacity, allowing them to hold thousands of readings internally. This ensures long-term data recording without frequent downloads. Some models also support external memory for extended logging needs.

8: Do these Data Logger support external sensors or probes?

Yes, several data logger models are compatible with both internal sensors and external probes. This allows users to adapt the device to different environments and measurement requirements with ease.

9: Are these Data Loggers suitable for harsh environments?

Absolutely. These data loggers are built with rugged, durable designs to handle tough environments. They perform reliably in extreme temperatures, high humidity, and outdoor conditions.


Temperature Data Logger NTDL-200

Temperature Data Logger NTDL-200

Related Models Of Data Logger

Labnics Data Loggers capture data at set intervals without the need for manual intervention. They support both internal and external probes for versatile measurement options. These units offer high storage capacity, allowing large volumes of data to be stored internally or on external memory. They enable real-time monitoring for live data viewing and immediate analysis. Our data loggers are built to withstand harsh environmental conditions, ensuring reliable performance.
