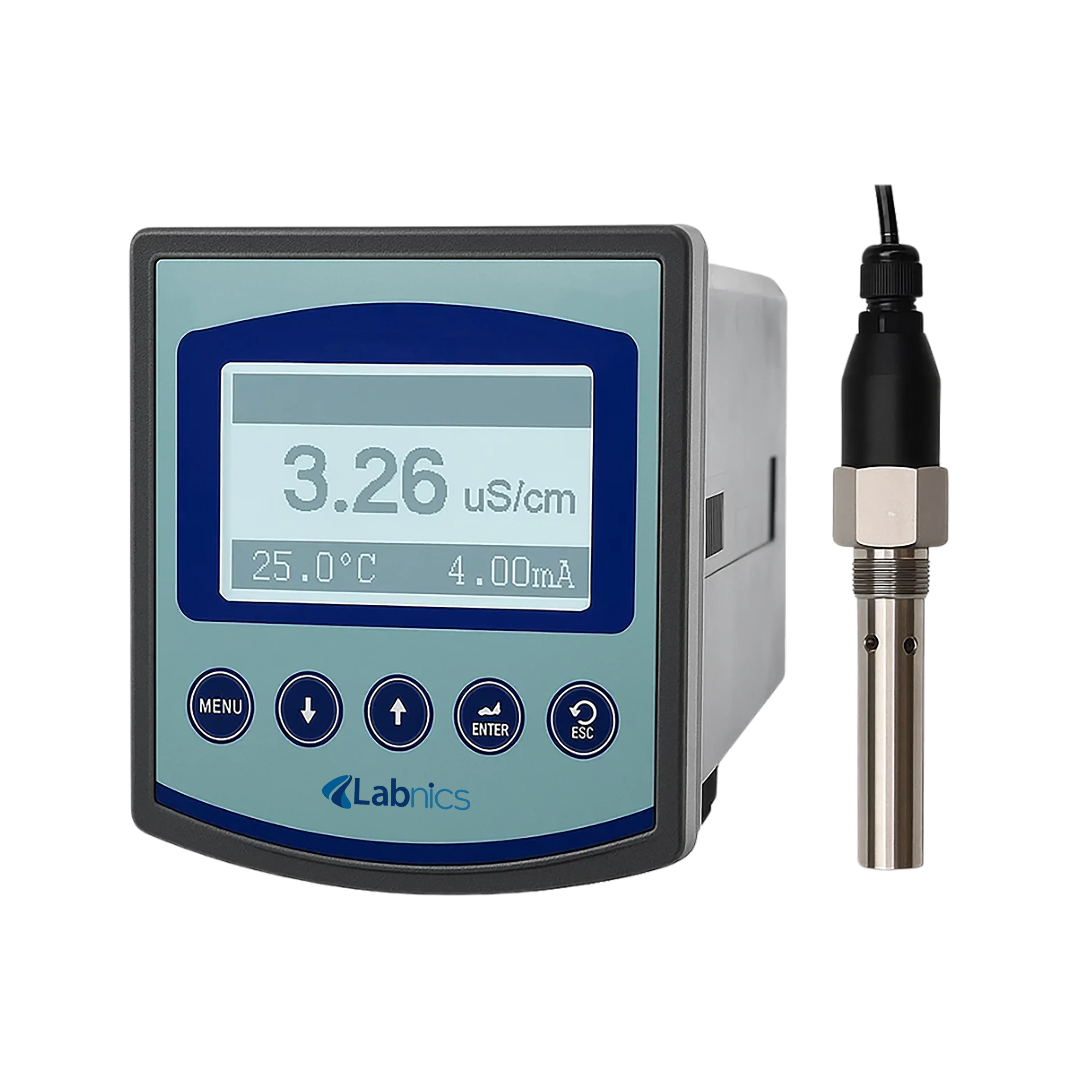

Conductivity Controller Analyzer NCCA-100 is used to measure electrolytic conductivity (EC), a widely used analytical parameter for water purity analysis, control of chemical processes and in industrial wastewater applications. Using high-performance CPU chip and SMT chip technology to complete conductivity / TDS and temperature measurement, temperature compensation, automatic range conversion, high precision, good repeatability.
Specifications
| Model no | NCCA-100 |
| Measuring range | k= 1 0~2000μS/cm |
| Resolution | 0.01μS/cm , 0.1μS/cm , 1μS/cm , 0.01mS/cm 0.1mS/cm |
| Accuracy | ± 2.0 %(FS) |
| Single output | RS485 and 4~20mA |
| Working conditions | 0~60°C |
| Pressure | 4 bar |
| Working voltage | AC220V±10%, 50/60Hz or DC24V |
| Electrode cable | 10M |
| Installation | Panel installation |
Features
Applications
Ask Expert
| Measurement range | 0 to 4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5days |
| Measuring range | 0 to 4000 mg/L |
| Measuring error | ±10% |
| Resolution | 2 mg/L |
| Measurement range | 0-4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5 days |
| High COD Range | 20 to 10000mg/L |
| Low COD Range | 2 to 150mg/L |
| Accuracy for COD < 50mg/L | ≤ ±5% |
| Digestion capacity | 9 vials |
| Vial volume | Maximum 10ml |
| Vial dimension | ф16 × 100 mm |
| Digestion capacity | 16 samples per run |
| Vial capacity | 19 ml |
| Vial dimension | Ф16×145 mm |
Labnics Portable Conductivity Meters provide accurate and reliable conductivity measurements for various applications. They feature automatic and manual temperature compensation for accurate readings. These units offer data storage and USB transfer for efficient record management. They come with a high-brightness backlit display for clear visibility in any environment. These meters have an auto power-off function to conserve battery life and extend usage time.
| Conductivity specifications:- Conductivity range | 0.000µS/cm ~ 1000mS/cm |
| Conductivity resolution | 0.001µS/cm |
| Conductivity accuracy | ± 1.0% (FS) |
.png "Portable Conductivity Meter NCM-200")
| Measurement Range | 0 to 400 mS/cm |
| Resolution | 0.001 μS/cm to 0.1 mS/cm |
| Indication Error | ±0.5% F.S |
.png "Portable Conductivity Meter NCM-201")
| Conductivity range | 0.000 μS/cm to 500 mS/cm |
| Conductivity resolution | 0.001 μS/cm minimum, various range selection |
| Conductivity accuracy | ±1.0% FS |
| Dissolved Oxygen Range | 0.00-20.00mg/L |
| Dissolved Accuracy | ±0.2mg/L |
| Dissolved Resolution | 0.01 mg/L |
