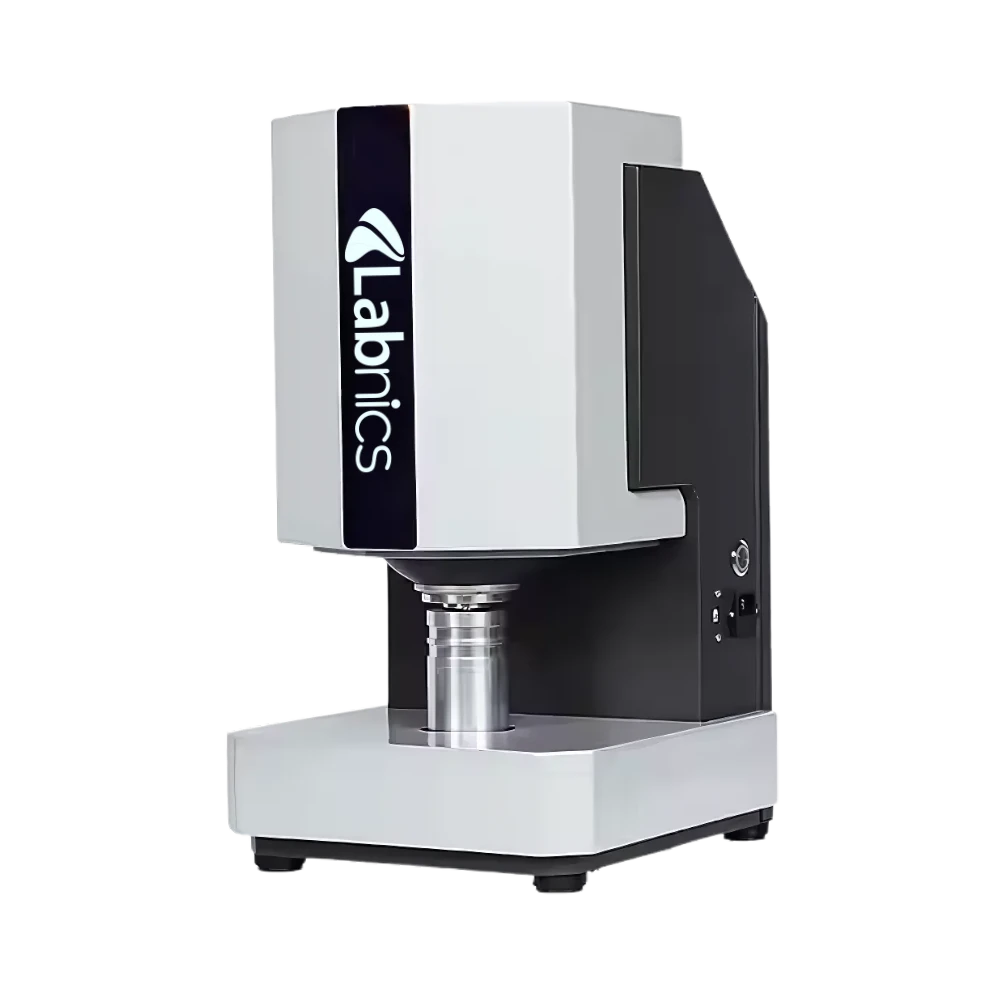

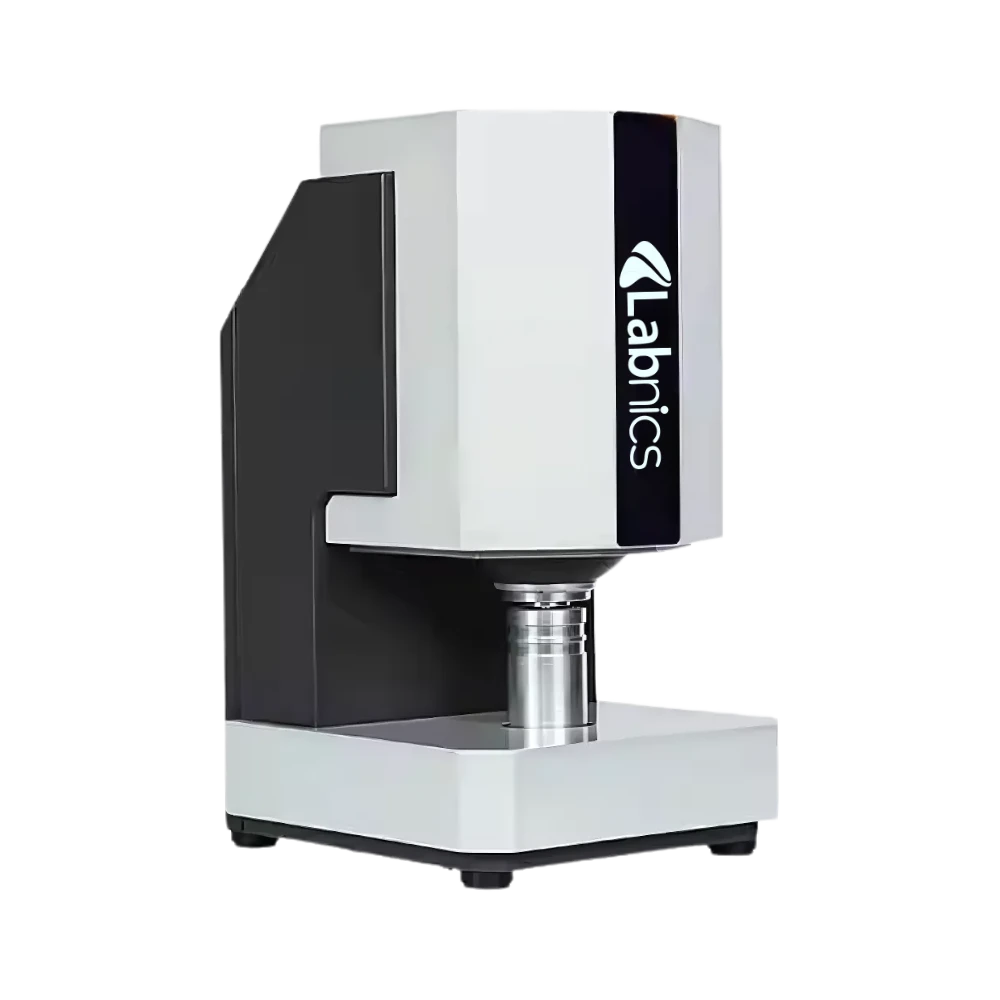

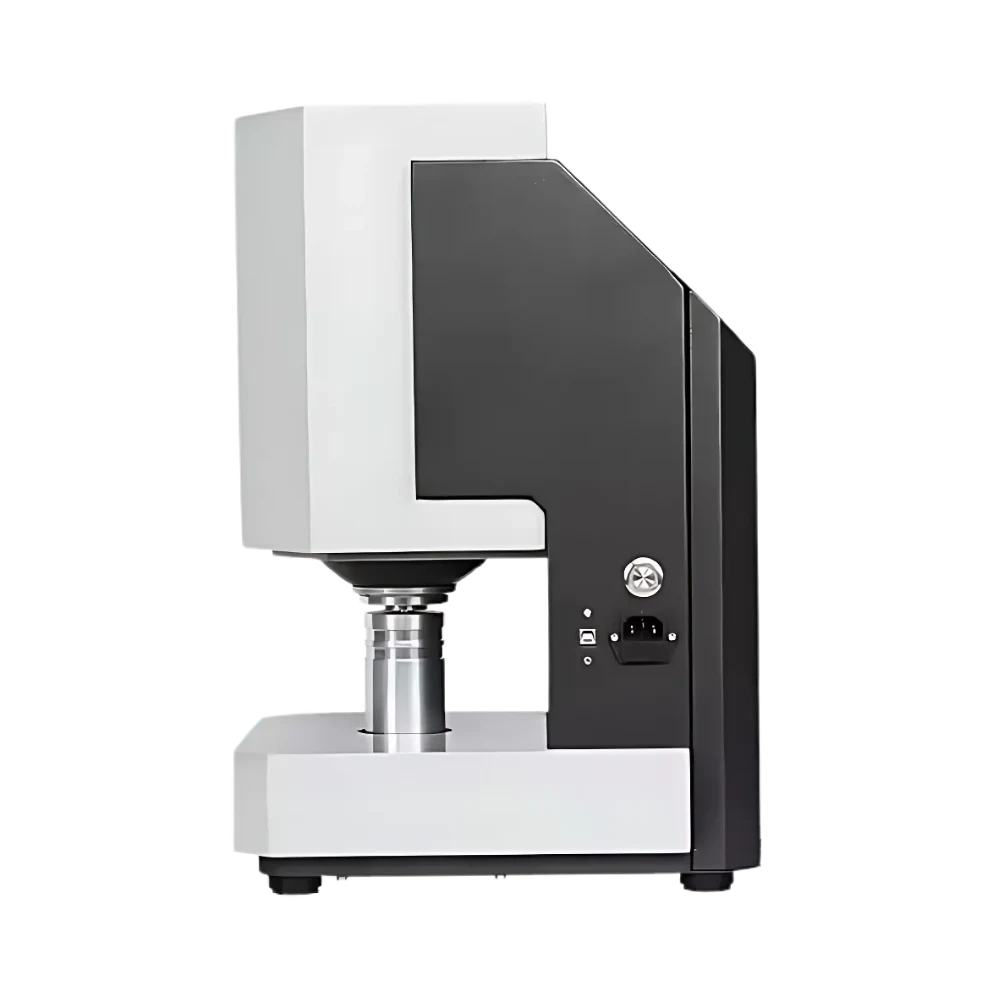

Colour Spectrophotometer NCS-200

Name: Colour Spectrophotometer NCS-200
Brand: Fison
SKU: NCS-200
Rating: 4.8 (886 reviews)

Colour Spectrophotometer NCS-200 offers a wavelength range of 400 to 700 nm, ensuring stable performance. It uses a double-beam geometry and a pulsed xenon lamp for precise results. This meter features a measuring area, and a 128-cell photoarray receiver for reliable spectral data collection. It includes UV cut-off filters and provides fast measurement within seconds. Our unit has a 7-inch touchscreen for user-friendly operation.

$27,125.00

Data Sheet

Specifications

Wavelength range	400 to 700 nm
Measuring range	0 to 200%
Working temperature	10 to 35℃
Humidity	≤85％
Geometric conditions	Double beam (d/0)
Light source	Pulsed Xenon lamp, D65 and C light source correction
Measuring area	Φ28 mm
Test aperture	Φ 34 mm
Measuring area error	0.3%
Spectral bandwidth	10nm
Receiver	128 cell photoarray
Measurement time	4 to 20 seconds
Repeatability	≤0.05 CIELAB (ΔE*)
Reproducibility	≤0.30 CIELAB (ΔE*)
Visual angle	2°,10°
Spectral data interval	10nm
UV cut-off filter	395, 420nm
Communication interface	USB2.0,WIFI (2.4G)
Display	7 inch IPS HD screen, 1024×600 resolution
Power Supply	Power Supply AC (100 to 240) V, (50/60)Hz, 50W
Removable touchscreen	225×170×120mm
Dimensions (L×W×H)	310×340×540mm
Net weight	23.5kg

Features

High-performance processor

Advanced optical components

Precision UV radiation control

Multiple communication options

Dual operation modes

Applications

Colour Spectrophotometer NCS-200 enables precise color and brightness measurement to ensure quality control. It is used in color science laboratories and materials testing labs.
