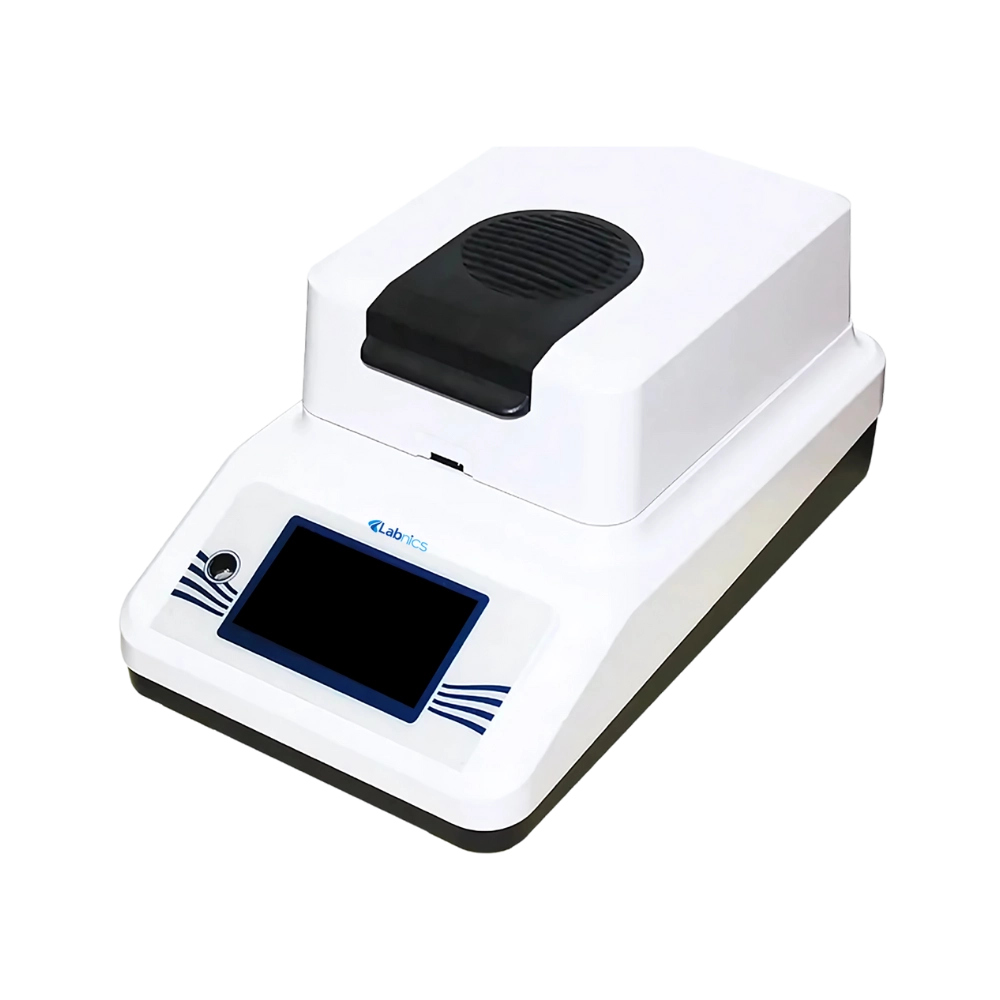

Halogen Moisture Analyzer NHMA-202 offers precise moisture analysis with a 50 g capacity and 5 mg readability. It features a 4.3-inch colour touch screen for easy operation. It includes auto and timing test modes for flexible analysis. It has a compact and lightweight design that ensures easy handling and portability. This unit also provides PC connectivity for efficient data management.
Specifications
| Capacity | 50 g |
| Readability | 5 mg |
| Repeatability | 0.003 |
| Heat Up Time | 1 to 99 minutes |
| Calibration mode | External calibration |
| Pan Size | 90 mm |
| Heating Temperature | 50°C to 160°C |
| Ambient Temperature | 10°C to 30°C |
| Ambient Humidity | Up to 75% |
| Heating Source | Halogen Lamp |
| Heating Time | 30 minutes |
| Internal Dimension | 210 × 340 × 180 mm |
| External Dimension | 380 × 530 × 340 mm |
| Net weight | 3 Kg |
| Gross weight | 5 Kg |
