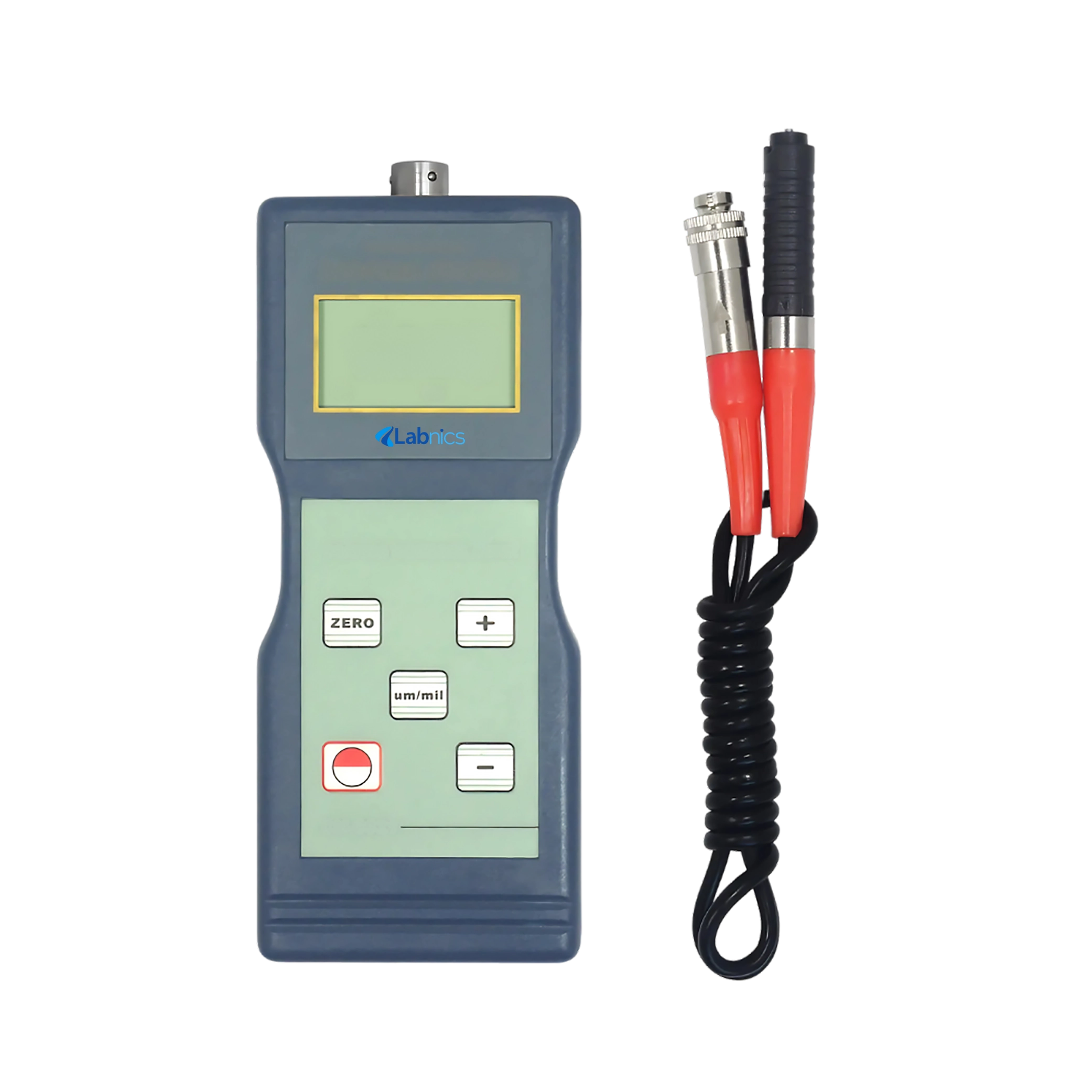

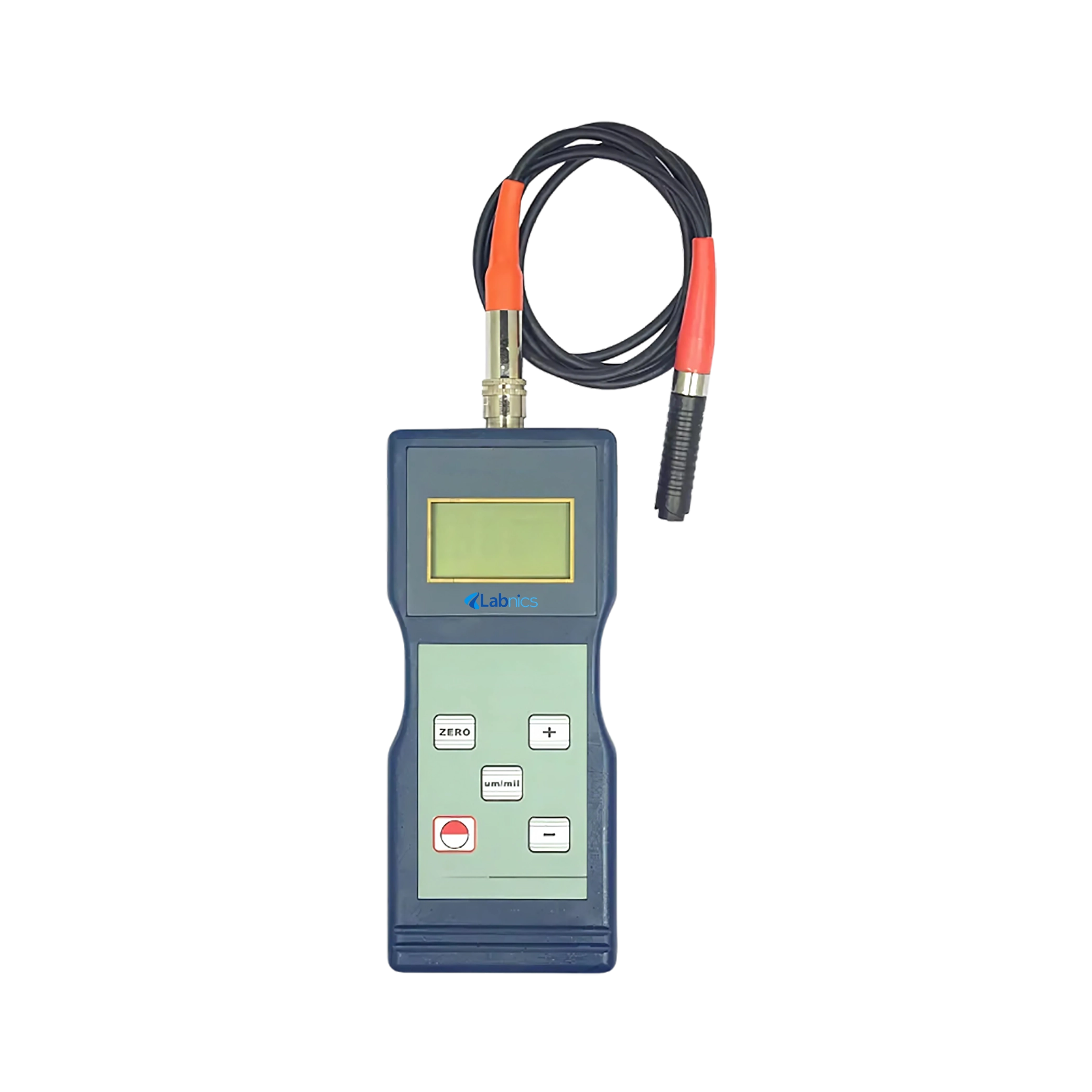

Coating Thickness Gauge NCTG-200 features a wide measuring range of 0 to 1000 μm and resolution settings of 0.1 μm. It includes manual or automatic power-off functionality. This unit offers the option to switch between metric and imperial units. It provides alerts with a buzzing sound to guide the operation process. Our coating thickness gauge ensures stable performance with enhanced flexibility.
$1,250.00
Specifications
| Measuring Range | 0 to 1000 μm |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Working Principle | F Magnetic Induction |
| Minimum Radius Workpiece | 1.5 mm (convex)/ 2.5 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Operating Temperature | 0 to 50°C |
| Humidity | ≤80% RH |
| Battery Indicator | Low Battery Indicator |

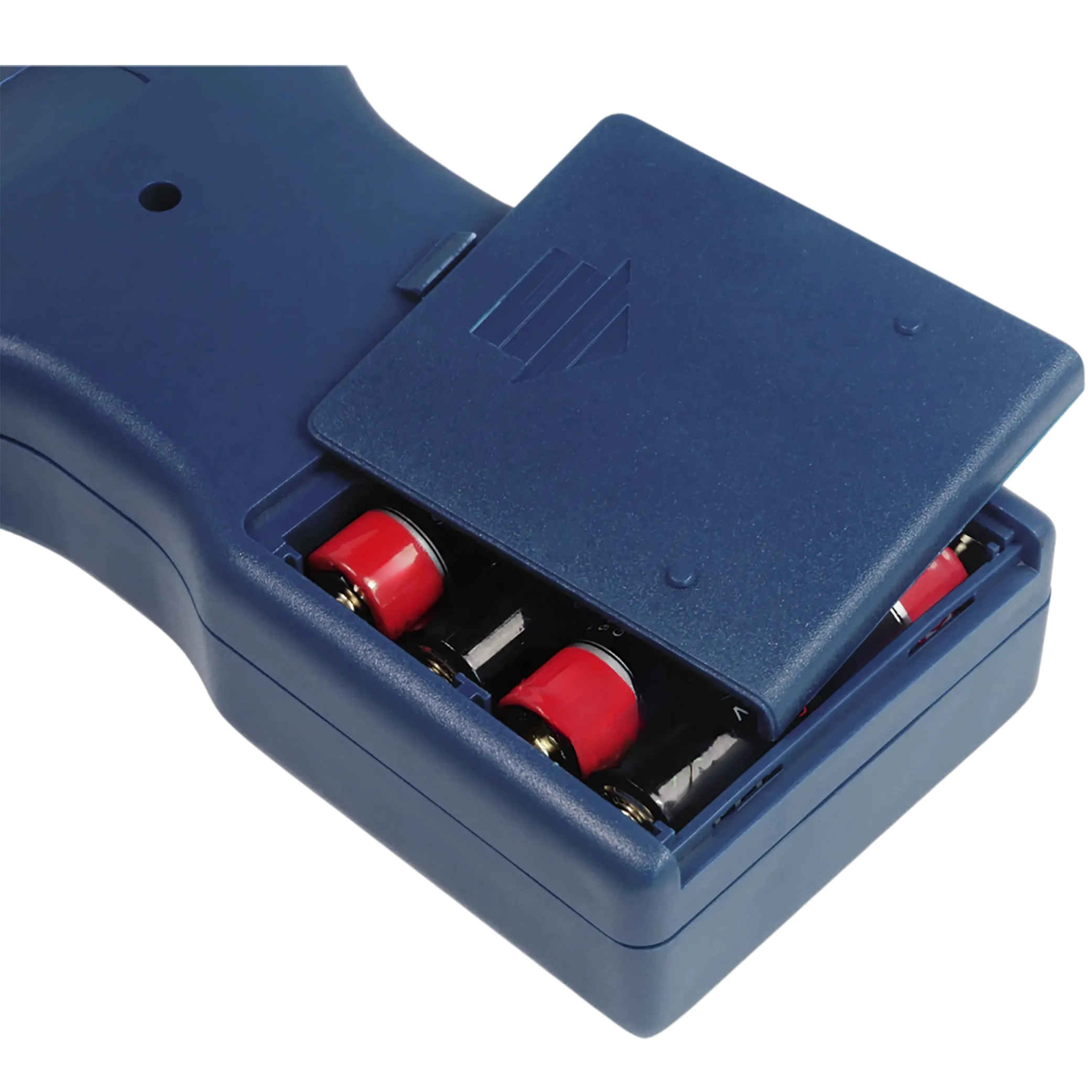

| Power Supply | 4 × 1.5V AA (UM-3) Battery |
| Dimensions | 161 × 69 × 32 mm |
| Weight | 210 g |
Features
Applications
Standard Accessories

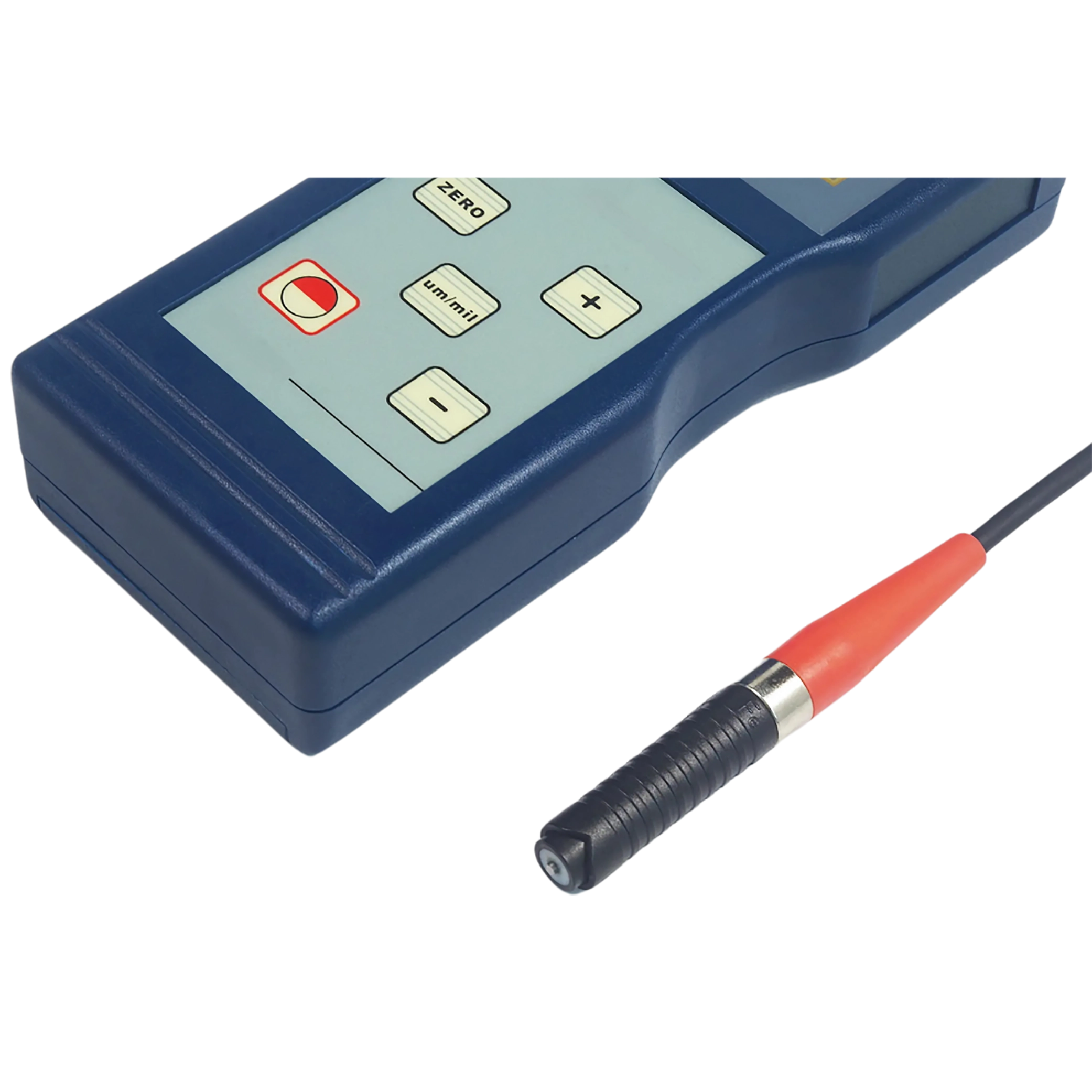

F type probe × 1 pc
F Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-200
1: What should I do if the Coating Thickness Gauge provides inconsistent readings?
Check that the Coating Thickness Gauge probe is clean, the surface is smooth, and the correct probe and mode are selected. Recalibration may be necessary for consistent results.
2: Does the Coating Thickness Gauge NCTG-200 retain calibration values after use?
Yes, the Coating Thickness Gauge automatically saves the last calibration value and detects the substrate type, reducing setup time for repeated measurements.
3: How can I maintain my Coating Thickness Gauge for long-term use?
To ensure durability, store the Coating Thickness Gauge in a dry place, avoid physical impacts, clean the probe regularly, and follow routine calibration procedures.
4: Does the Coating Thickness Gauge NCTG-200 support both metric and imperial units?
Yes, the Coating Thickness Gauge allows users to switch between metric and imperial units to match measurement preferences or regional standards.
5: Does the Coating Thickness Gauge provide any feedback during operation?
The Coating Thickness Gauge features an audible buzzing reminder during operation, helping users confirm successful measurements and improving usability in noisy environments.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
