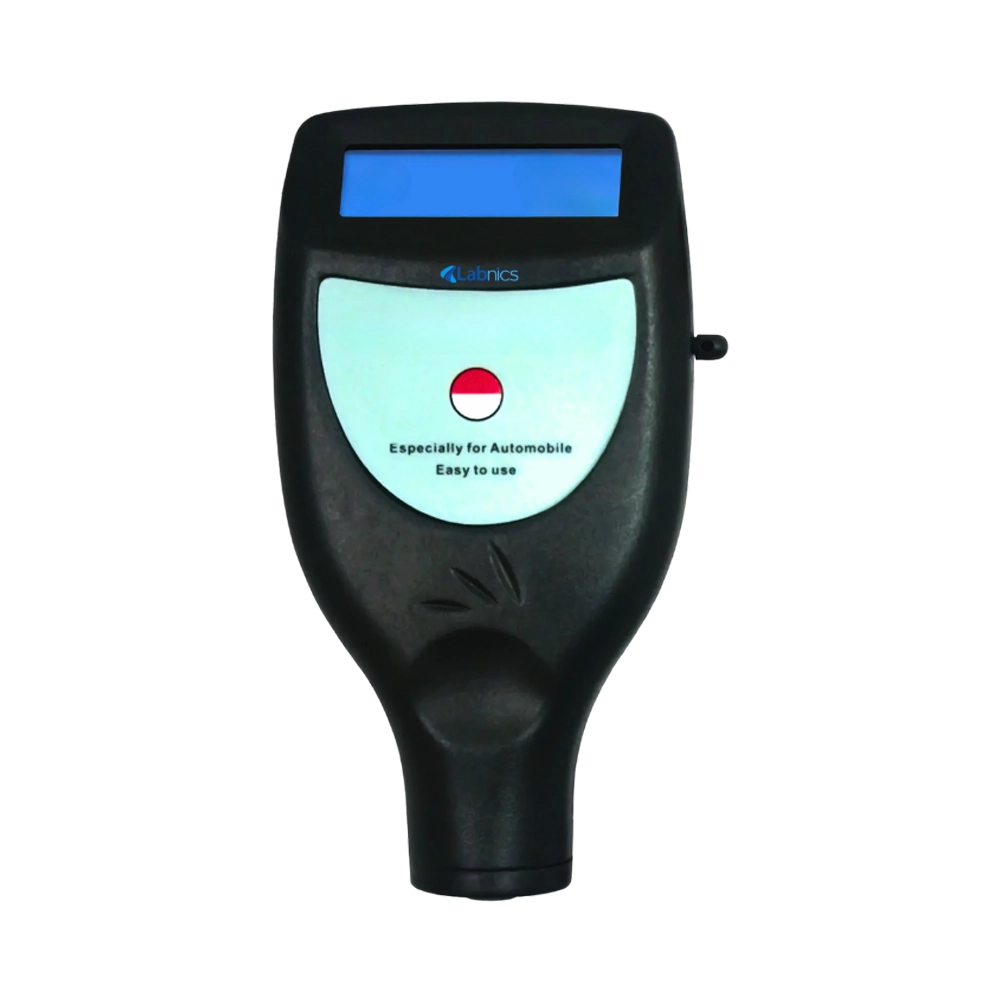

Coating Thickness Gauge NCTG-106 has a resolution of 0.1 μm and an accuracy range of ±1 to 3%. It automatically powers off or allows manual shutdown to enhance efficiency. This device offers integral probe options for improved stability and ease of use. It features automatic storage of calibration values for efficient operation. Our coating thickness gauge provides both single and continuous modes for different testing applications.
$1,525.00
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | F Magnetic Induction, NF Type Eddy Current |
| Minimum Radius Workpiece | F type: 1.5 mm (convex)/ 25 mm (concave) NF type: 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 81 g |
Bluetooth data transfer
Digital display
Compact and lightweight design
Buzzer alerts
Auto-detects substrate material
Coating Thickness Gauge NCTG-106 is used across manufacturing, metal processing, and chemical industries. It is ideal for quality control, coating inspections, and laboratory testing.
F type probe × 1 pc
NF type probe × 1 pc
F Calibration base × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
1: How can I maintain the accuracy of my Coating Thickness Gauge over time?
To keep your Coating Thickness Gauge accurate, regularly clean the probe, avoid exposing it to harsh conditions, and perform routine calibration according to usage frequency.
2: How does the Coating Thickness Gauge NCTG-106 assist users during operation?
The Coating Thickness Gauge features a buzzing reminder system that guides users through the measurement process, confirming actions and minimizing operational errors.
3: Does the Coating Thickness Gauge support data transfer for analysis?
Yes, the Coating Thickness Gauge includes RS-232 and Bluetooth output options, allowing users to connect to a PC for data recording and in-depth analysis.
4: How does the Coating Thickness Gauge handle multiple measurement modes?
The Coating Thickness Gauge allows users to switch between single and continuous measurement modes, making it adaptable for both spot checks and scanning across larger surfaces.
5: Can the Coating Thickness Gauge NCTG-106 be used in a laboratory setting?
Yes, the Coating Thickness Gauge is suitable for both laboratory and field use due to its portability, precision, and flexible probe compatibility.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
