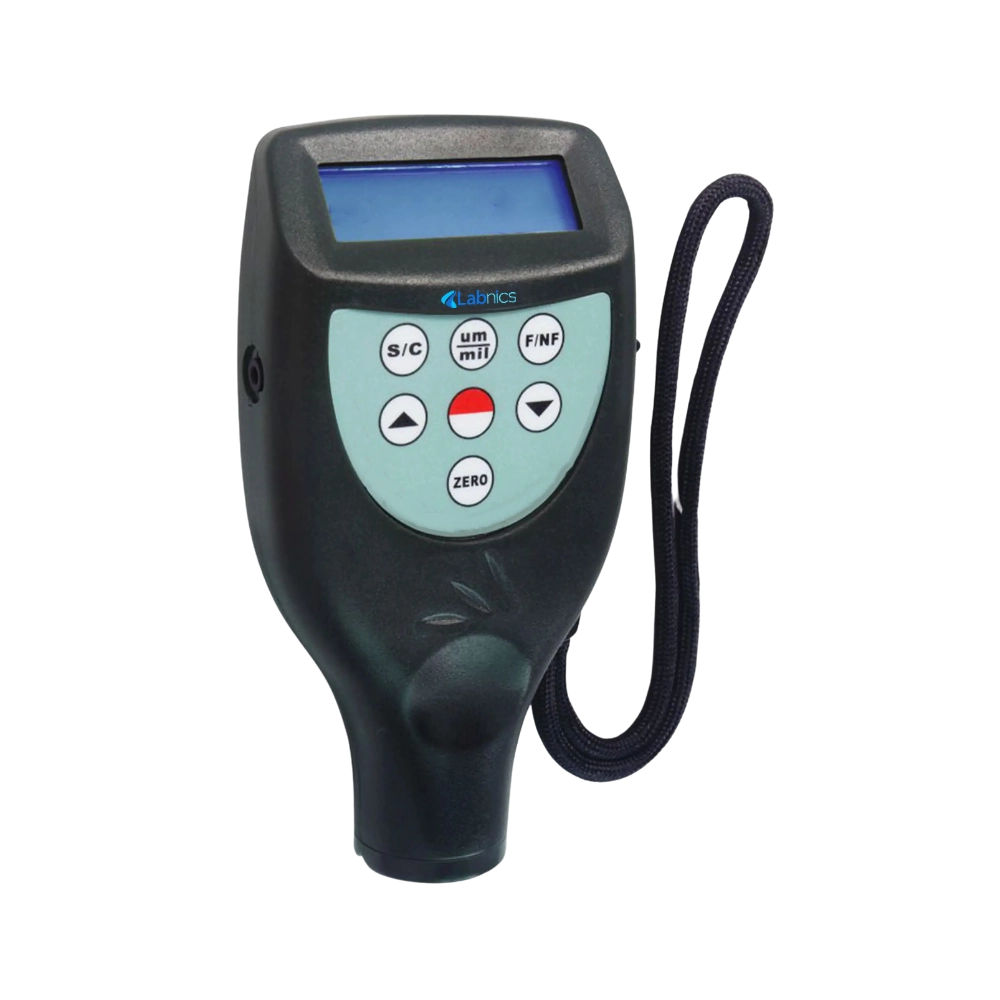

Coating Thickness Gauge NCTG-103 is capable of functioning under temperatures from 0 to 50°C and relative humidity under 80%. It features an integral probe design for enhanced measurement stability. This device offers Bluetooth data transfer for wireless communication. It has a compact and lightweight design for convenient use. Our coating thickness gauge provides buzzer alerts to provide operational feedback.
$1,475.00
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | F Magnetic Induction, NF Type Eddy Current |
| Minimum Radius Workpiece | F type: 1.5 mm (convex)/ 25 mm (concave) NF type: 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Power Supply | 4 × 1.5V AAA (UM-4) Battery |
| Dimensions | 126 x 250 x 65 mm |
| Packaging Dimension | 248 x 206 x 52mm |
| Net Weight | 2 Kg |
| Gross Weight | 3 Kg |
Automatic power-off function
Automatic storage of calibration values
Digital display
User-friendly operation
Single and continuous measurement mode
Coating Thickness Gauge NCTG-103 is used in manufacturing, metal processing, and quality inspection. It is suitable for coatings on iron, aluminium, brass, and stainless steel surfaces.
F type probe × 1 pc
NF type probe × 1 pc
F Calibration base × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
1: How does the Coating Thickness Gauge NCTG-103 ensure accurate readings?
This coating thickness gauge includes automatic calibration value memory, substrate recognition, and a buzzer alert system that confirms successful readings and helps maintain precision during use.
2: Is it possible to connect the Coating Thickness Gauge to a computer or other devices?
Yes, the coating thickness gauge provides RS-232 output for PC connection and also offers Bluetooth data output for convenient wireless data transfer.
3: What power-saving features does the Coating Thickness Gauge NCTG-103 include?
The coating thickness gauge is designed with both manual and automatic power-off functions to conserve energy when the device is not in use.
4: Can the Coating Thickness Gauge measure both magnetic and non-magnetic substrates?
Yes, this coating thickness gauge supports both Magnetic Induction and Eddy Current principles, allowing it to measure coatings on ferromagnetic and non-magnetic metal substrates accurately.
5: Can I use the Coating Thickness Gauge for underwater or wet surface measurements?
No, the coating thickness gauge is not waterproof and should only be used on dry surfaces unless it specifically states otherwise in the user manual.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
