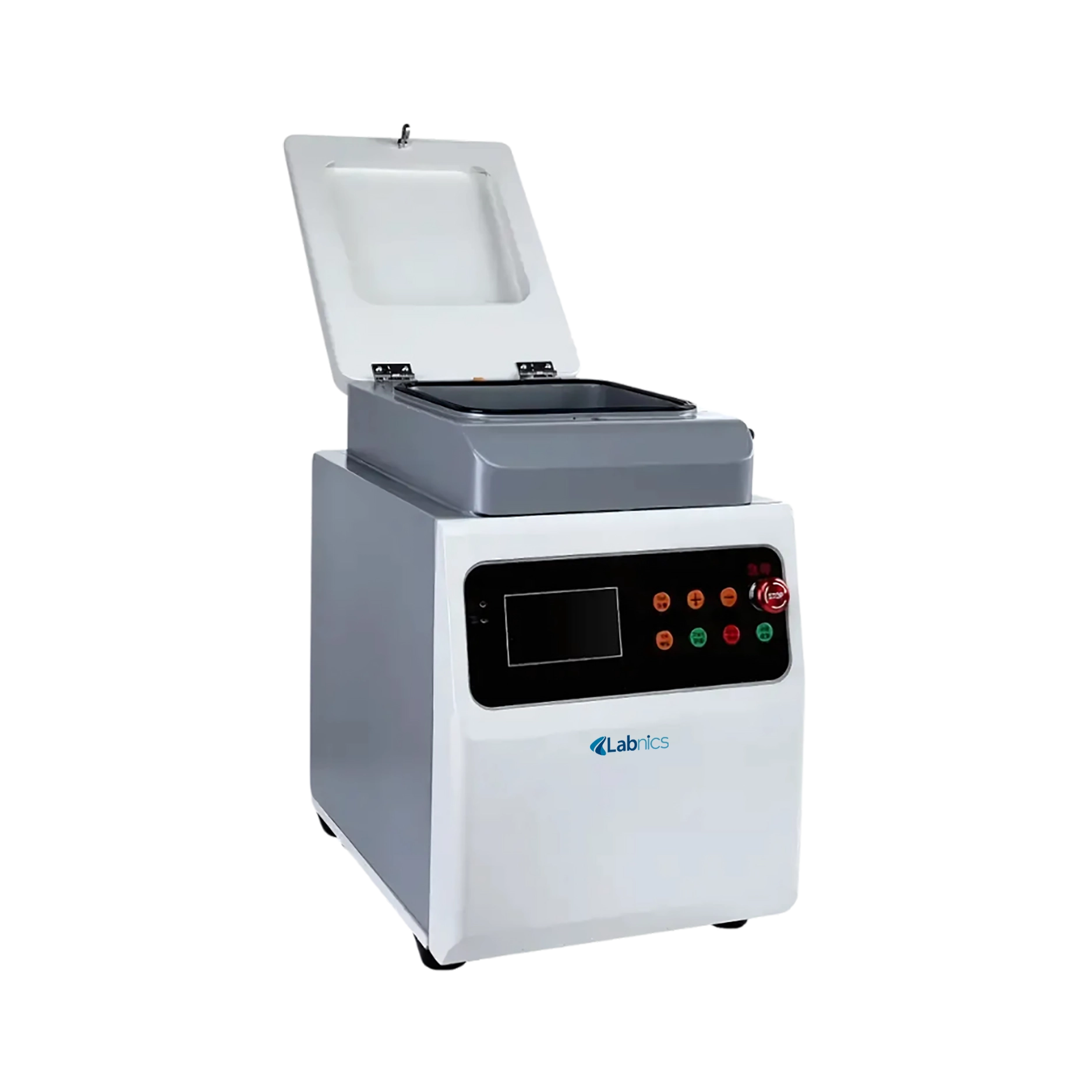

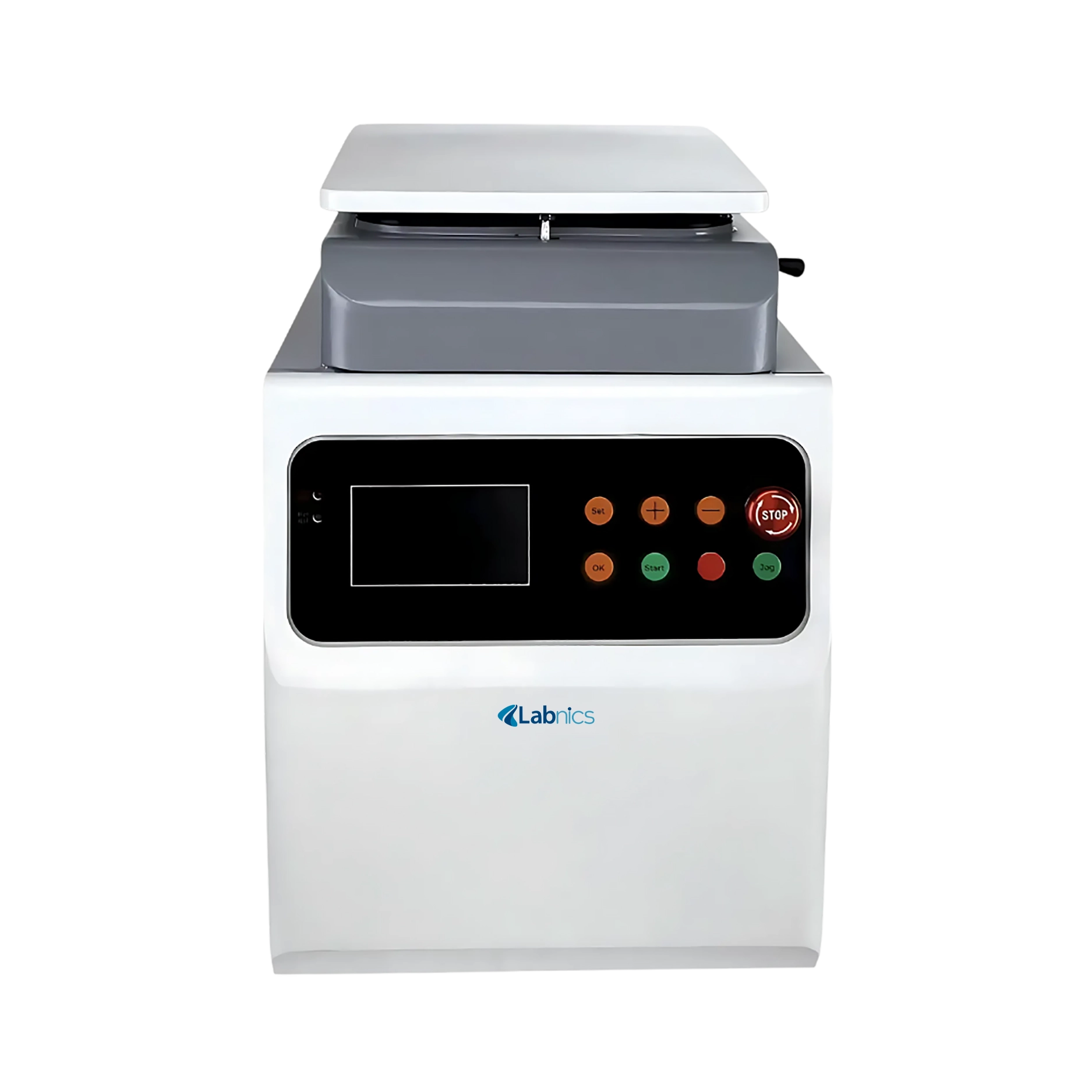

High Throughput Tissue Grinder NHTG-202

High Throughput Tissue Grinder NHTG-202 is designed to accelerate and decelerate within 2 seconds for enhanced efficiency. It is equipped with an anti-slip foot pad to ensure stable placement. This unit provides customizable settings for flexible and precise process control. It features an LCD display for clear and easy monitoring of processing settings. Our tissue grinder includes a built-in controller for precise grinding adjustment.

---

$3,988.00

Buy Now Catalog

Specifications

Sample handling capacity	48 × (0.2 to 0.5 ml) 48 × 2 ml 24 × 2 ml 16 × 5 ml 12 × 5 ml 8 × (7 to 15 ml) 4 × 25 ml 2 × 50 ml
Vibration frequency range	10 to 70 Hz/min
Grinding method	Dry, wet, cryogenic grinding
Final Particle Size	Approximately 5 µm
Noise level	<65 dB
Timer range	0 seconds to 99 minutes
Acceleration Time	Within 2 seconds
Deceleration Time	Within 2 seconds
Grinding tool material	Alloy steel, PTFE
Grinding ball material	Alloy steel, Chromium, Zirconium oxide, Tungsten carbide, Silica
Grinding ball size	0.1 to 30 mm
Power supply	220 V / 50 Hz, 2 phases
Dimension	280 × 400 × 530 mm
Weight	40 kg

Features

• Vertical oscillating motion
• Safety lock protection
• Shockproof design
• Durable construction
• Advanced grinding technology

Applications

• Our High Throughput Tissue Grinder is suitable for efficient sample preparation in molecular biology, pharmaceuticals, and material science, supporting DNA, RNA, and protein extraction with high precision.

Optional Accessories

PE/PTFE square adapter × 1 set

Metal adapter × 1 set
