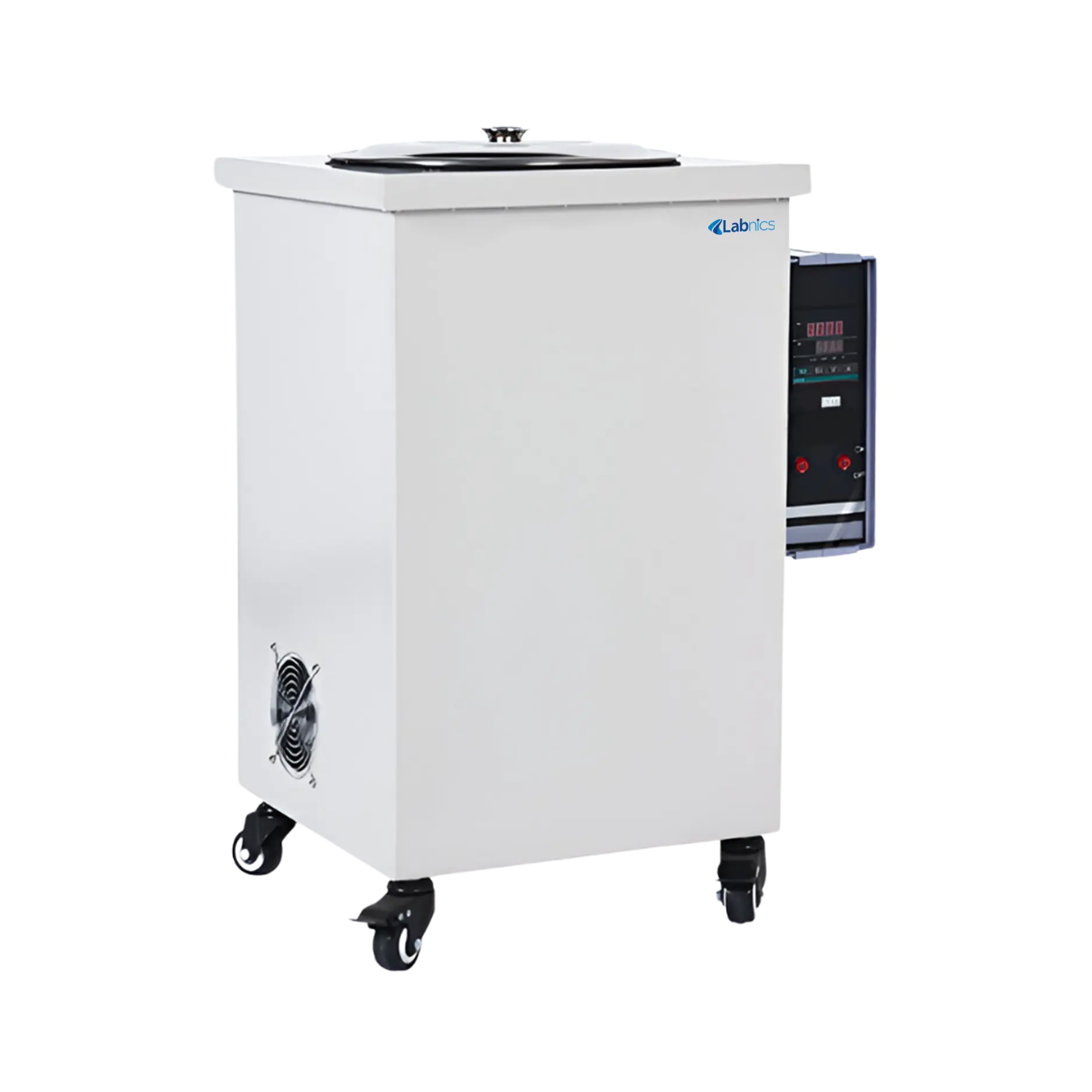

Circulating Oil/Water Bath NOWB-103

Circulating Oil/Water Bath NOWB-103

Circulating Oil/Water Bath NOWB-103 is designed to hold a liquid storage capacity of 100 liters, suitable for various applications. It maintains a pressure of 1.45 MPa with a flow rate of 35 liters per minute to ensure steady circulation. This unit includes a digital display for easy and intuitive control. It uses PID technology to ensure precise temperature regulation and reduce fluctuations. Our bath has a vertical design with a trundle base for convenient mobility and placement.


$2,863.00

Catalog

Specifications

Liquid storage capacity 100L
No-load maximum temperature 200°C
Pressure 1.45MPa
Flow rate 35L/min
Temperature control range Water bath: RT to 99°C
Oil bath: RT to 250°C
Optional configuration Explosion-proof motors and electrical
Heating power 9kW
Power supply AC220V 50/60Hz
AC380V 50/60Hz
Liner size 500×500mm
Overall dimension 900×700×950mm

Features

  • Insulated heat preservation
  • Magnetic pump system
  • External circulation loop
  • Contactless relay control
  • Immersed heating tube
  • Easy maintenance design

Applications

  • Circulating Oil/Water Bath NOWB-103 is used for precise temperature control in drying, concentration, distillation, and dipping processes. It is commonly applied in biological, medical, environmental, biochemical, and educational research laboratories.

Ask Expert

FAQ for Circulating Oil/Water Bath NOWB-103

1: How precise is the temperature control?

The Circulating Oil/Water Bath uses advanced PID control technology to maintain highly accurate temperature regulation. This means temperature fluctuations are minimal, providing stable and reliable heating for sensitive applications.

2: Is the Circulating Oil/Water Bath NOWB-103 easy to operate?

Yes, our Circulating Oil/Water Bath features a digital display temperature control system that makes setting and monitoring temperatures straightforward. The user-friendly interface helps you manage operations without requiring technical expertise.

3: What kind of liquids can be used with this Circulating Oil/Water Bath NOWB-103?

Our Circulating Oil/Water Bath supports both water and oil as circulating liquids, with temperature ranges suitable for each—up to 99°C for water baths and up to 250°C for oil baths. This versatility allows it to cater to a wide range of experimental requirements.

4: What safety features does the Circulating Oil/Water Bath NOWB-103 include?

The Circulating Oil/Water Bath is equipped with an insulated shell and a sealed magnetic pump, preventing leaks and ensuring safe operation. It also offers optional explosion-proof motors for use in hazardous environments.

5: What maintenance does the Circulating Oil/Water Bath require?

Maintenance is minimal, mainly involving regular cleaning of the stainless-steel liner and checking the magnetic pump for smooth operation. Its durable construction ensures long-lasting performance with little downtime.

6: Are different sizes or capacities available?

Yes, the Circulating Oil/Water Bath is available in multiple capacities to suit various laboratory requirements. This makes it easier to choose the right size based on your workload.

7: Can the Circulating Oil/Water Bath be used for external circulation?

Some models support external circulation connections, allowing the bath to regulate temperature in other connected equipment. This adds more functionality for advanced setups.

8: How is maintenance handled for these Circulating Oil/Water Baths?

Routine maintenance includes checking fluid levels, cleaning the inner chamber, and inspecting circulation pumps. Most units are designed for easy maintenance with accessible components.

9: What type of fluids are recommended for use?

Distilled water is recommended for water baths to prevent mineral buildup. For oil baths, high-quality heat transfer oils compatible with the temperature range should be used.


Circulating Oil/Water Bath NOWB-103

Circulating Oil/Water Bath NOWB-103


Related Models Of Circulating Oil/Water Bath

Labnics Circulating Oil/Water Baths support both oil and water for versatile heating applications. They feature a digital PID controller that ensures precise temperature regulation. These units maintain uniform temperature distribution through a powerful circulation system. They offer a user-friendly interface with a clear digital display and intuitive controls. Our baths are built with a durable stainless steel inner chamber that resists corrosion and thermal stress.
