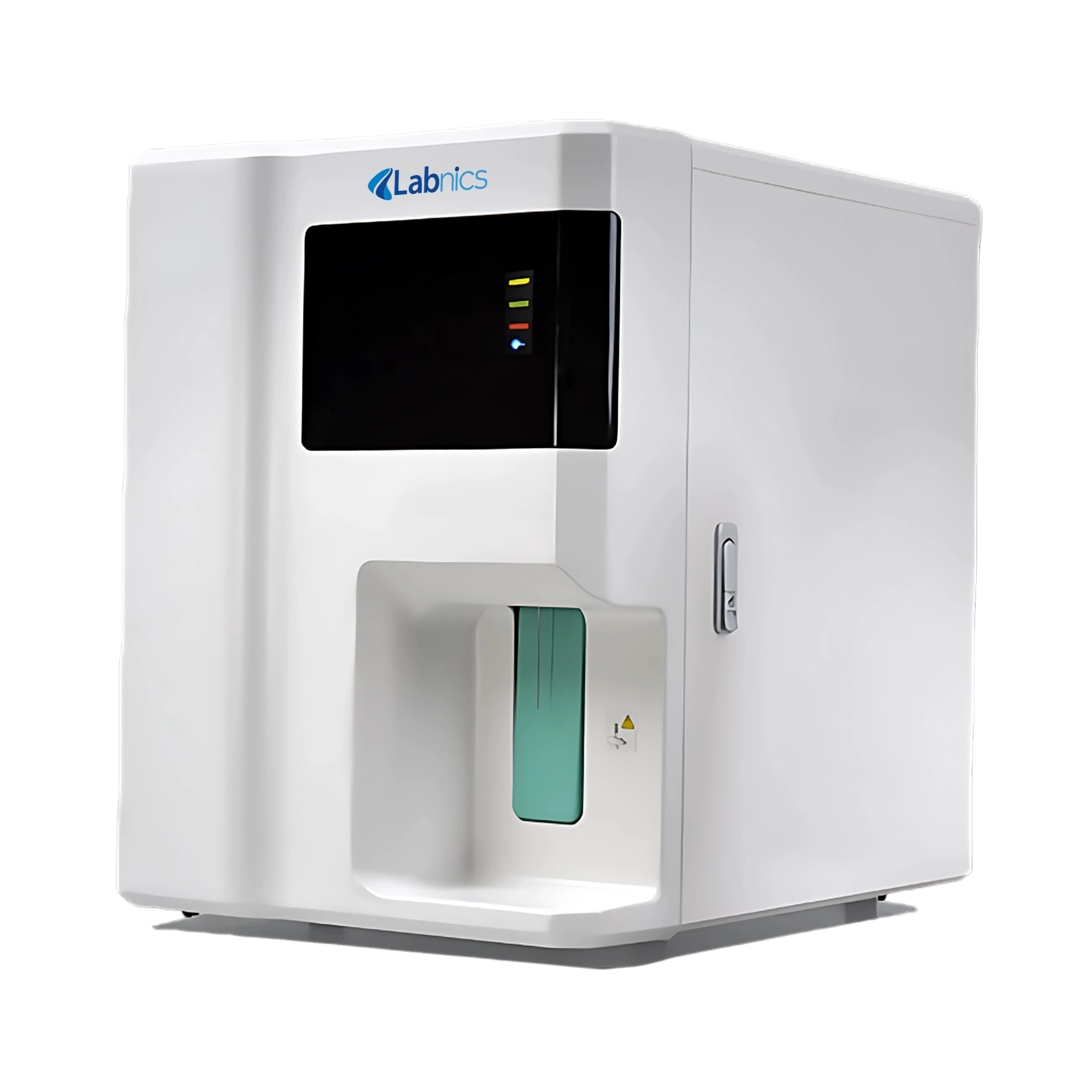

Automatic Hematology Analyzer NAHA-202

Automatic Hematology Analyzer NAHA-202 can analyze 60 samples per hour and comprises 28 parameters with 2 histograms and 2 scattergrams. Generates 3-D Topographic Maps for WBC analysis. Utilizes an Integral Titanium Incubation System. Incorporates Laser Scatter Technology and ensures Constant Linear Sheath Flow. Samples can be sorted by sample number, patient name, type, time frame, etc.

---

Get Quote Catalog

Specifications

Sample Volume	20μL
Throughput	60 samples/hour
Parameters	Regular parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, ROW-SD, ROW-CV, PL T, POW, MPV, PCT, P-LCR, NEU#, NEU%, LYM#, LYM%, MON#, MON%, EOS#, EOS%, BAS#, BAS% Research parameters: ALY#, ALY%, IG#, IG%, along with 2 histograms and 2 scattergrams
Principle	WBC/RBC/PLT: Electrical impedance method HGB: colorimetric method WBC 5-diff: laser scattering method
Sample Mode	Whole blood, Pre-diluted blood mode
Test Mode	CBC+5 different CBC QC and calibration Multiple QC rules such as L-J, X-B
Technology	Laser Scatter Technology and Constant Linear Sheath Flow
Performance	Item Linear range Carryover CV WBC 1.0 to 99.9×10⁹ /L ≤ 0.5% ≤ 2.0% RBC 0. 3 to 7.0×10¹² /L ≤ 0.5% ≤ 1.5% HGB 20 to 240 g/L ≤ 0.5% ≤ 1.5% PLT 20 to 999×10⁹ /L ≤ 1% ≤ 4%
Reagents	Cyanide-Free reagents
Operating Temperature	15 ℃ to 30 ℃
Operating Humidity	30% to 85%
Display	External
Printer	External
Data storage	100,000 results
Data interface	LIS interface
Power Supply	110V/220V, 50Hz/60Hz
Dimensions (L× W × H)	460 × 570 × 610 mm
Weight	53 Kg

Features

• Laser Scatter Technology
• Flow Cytometry Technology
• Utilizes Cyanide-Free Reagents
• Auto and manual calibration functions
• Multi-print format options including self-defined formats
• Calculates Mean, CV, and SD values
• Multiple warning system
• Provides statistics for Sample, QC, and Calibration

Applications

• Automatic Hematology Analyzer can analyze blood samples quickly and accurately. These analyzers are crucial in medical diagnostics, providing essential information about a patient's blood composition, including cell counts and morphology.
