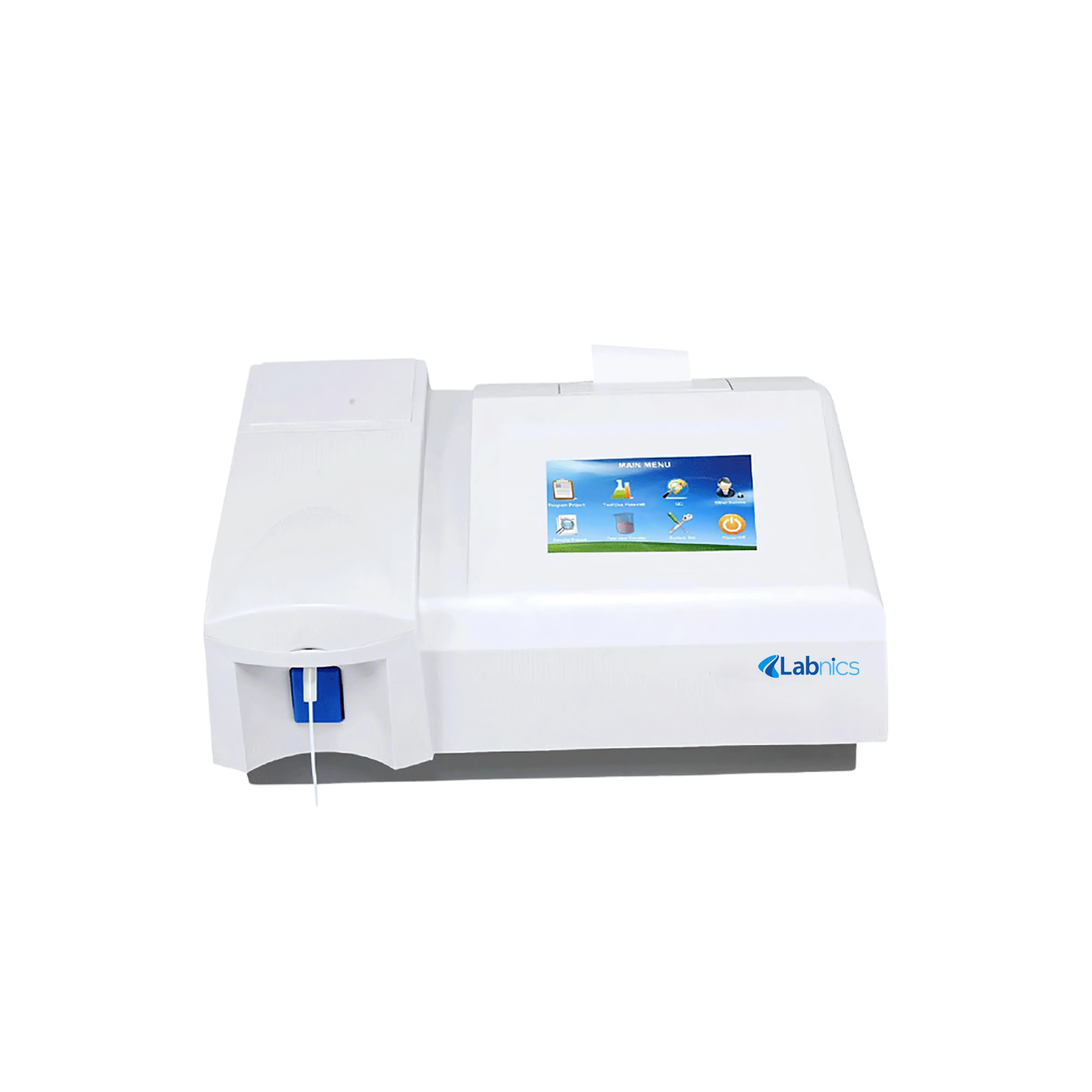

Semi-Automatic Chemistry Analyzer NSCA-200

---

$2,100.00

Buy Now Catalog

Specifications

Sample capacity	0 to 3000µL (500 µL recommended)
Wavelength	5 standard filters (340nm, 405nm, 505nm, 560nm, 630 nm) and 3 free positions
Wavelength accuracy	±2 nm, width ≤ 10nm
Absorbance range	0 to 4.500 Abs
Absorbance accuracy	outside 0.0001 Abs, inside 0.00001 Ab
Carry over	< 1%
Repeatability	< 1%
Temperature range	0 to 40°C
Incubator temperature	37°C, 30°C, 25°C
Temperature accuracy	±0.1°C
Humidity	≤ 80%
Test mode	Kinetic, End point, Two-point, Absorbance
Quality control curve	X̅, SD, CV%, L-J
Flow cell	32 µL quartz glass, 10 mm
Heating source	Philips 6V 10W halogen lamp
Display	5 inches color LCD, touchscreen
CPU	ARM series high-speed micro CPU
Data storage	≥10,000
Printer	Internal thermal printer
Interface	RS232
Power supply	100 to 240VAC，50 to 60Hz，
Overall dimension	340×270×160mm
Weight	5kg

Features

• Real-time curve display for analysis
• High accuracy with minimal carryover
• Stores up to 10,000 results
• RS232 interface for PC connectivity
• Temperature control for incubation
• Built-in thermal printer for results
• Compact design for easy installation

Applications

• Semi-Automatic Chemistry Analyzer NSCA-200 measures and analyzes the chemical composition of substances. It is commonly used in clinical laboratories, pharmaceutical research facilities, hospitals, environmental testing laboratories, the food and beverage industry, biotechnology companies, and forensic science labs.

Test Parameters

Liver function	ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, Nh3
Renal function	BUN, CRE, UA, URE, CO2-CP, γ-G
Lipids	T-CHO, TG, HDL-C, LDL-C
Cardiac function	CK, CK-MB, LDH
Immune proteins	IGA, IGG, IGM, C3
Others	GLU, HGB, AMS
