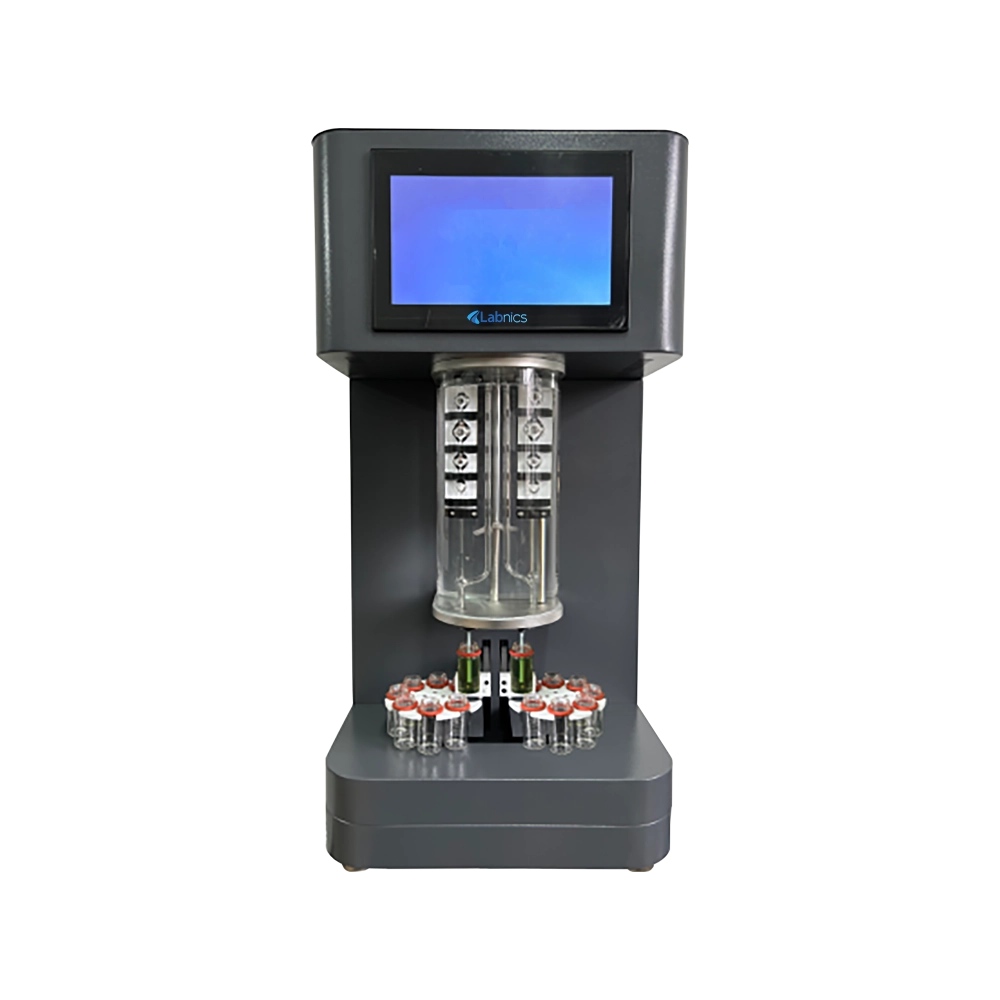

Automatic Kinematic Viscometer NAKV-100
Automatic Kinematic Viscometer NAKV-100 sets the standard for viscosity determination with a range from 0.3 to 5000 mm²/s. Utilizing cutting-edge 32-bit microprocessor technology, it ensures precise measurements. Its intuitive 10-inch color touchscreen simplifies operation. Streamline your workflow with automatic sample handling, temperature control, and extraction. Experience efficiency with automated timing, calculation, printing, cleaning, and drying features. It complies with standards like GB/T 265, ASTM D445/D446, and ISO 3104 / IP71.
Temperature control range | Room temperature + 5 ℃ to 100 ℃ |
Temperature control accuracy | ± 0.01 ℃ |
Time accuracy | ± 0.01% (not greater than ± 0.01% for 60 minutes) |
Viscosity range | 0.3 to 5000 mm²/s |
Number of viscosity pipes | 2 |
Number of sample disks | 8 samples × 2 turntables |
Sample bottle volume | 20 ml |
Time range | 0.01 s to 999.99 s |
Temperature sensor | PT100 platinum resistor |
Rated power | 1200 W |
01 Box Packaging dimension | 750 × 550 × 1000 mm |
02 Box Packaging dimension | 600 × 500 × 600 mm |
01 Box Gross weight | 50 Kg |
02 Box Gross weight | 30 Kg |
Automatic Kinematic Viscometer is widely used across industries like chemicals, pharmaceuticals, petroleum, food and beverages, cosmetics, etc.
Printer
Laptop
500 ml Viscosity Reference standard
Polyethylene sample cups
