Product Data Sheet · Laboratory Equipment

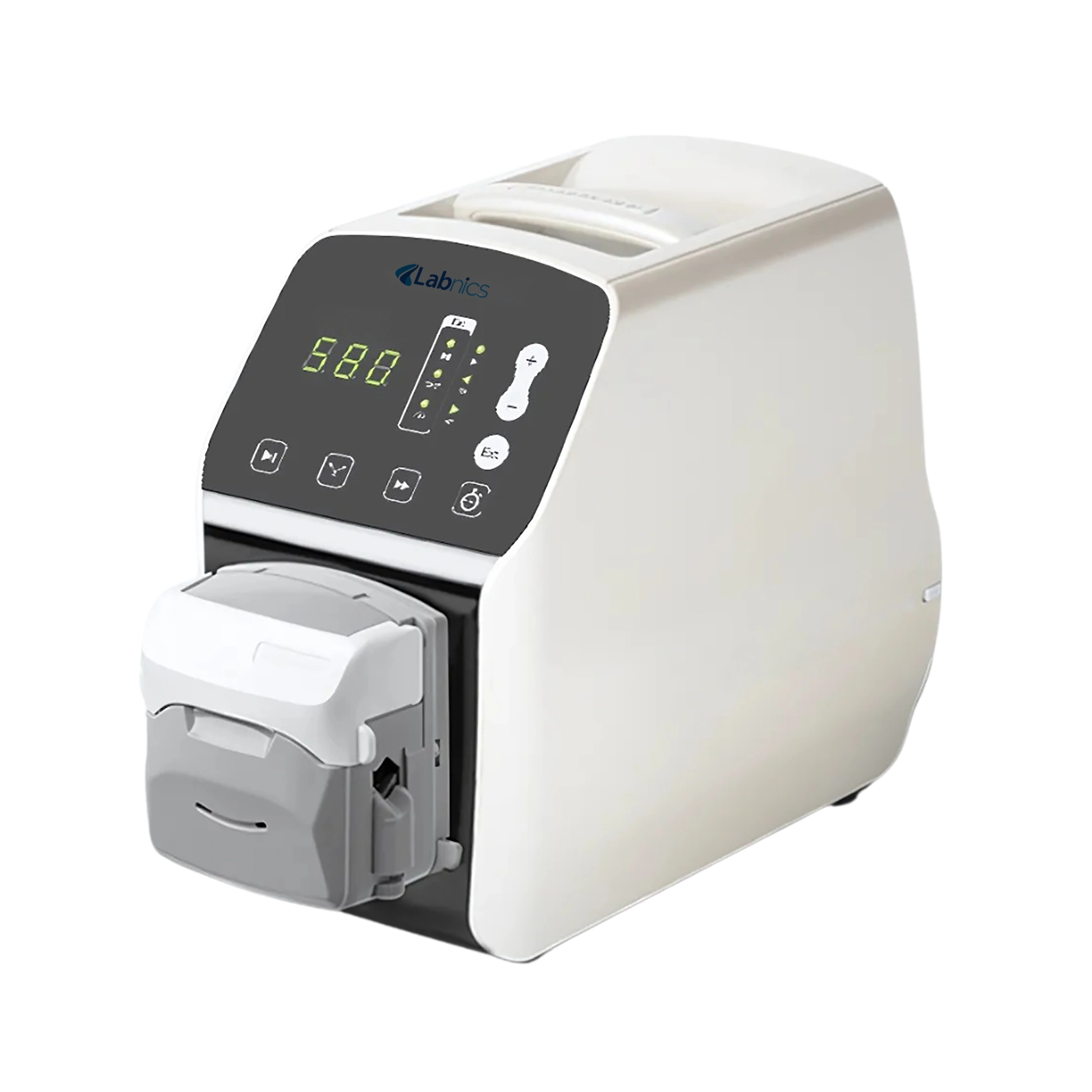

Standard Peristaltic Pump NSPP-201 offers variable speed control from 0.1 to 350 RPM and a testing time range of 0.5 to 999 seconds. It has an embedded handle with a comfortable grip for easy portability. Our peristaltic pump has a full-speed button for quick filling and emptying functions. It features a 3-digit LED display for motor speed indication. This unit comes with a UV spray coating for added surface protection.
| Flow Range | 0.0079 to 1766.31 mL/min |
|---|---|
| Speed Range | 0.1 to 350 RPM |
| Speed Resolution | 0.1 RPM (100 RPM), 1 RPM (100 to 600 RPM) |
| Testing Time Range | 0.5s to 999s |
| Motor type | Closed-loop stepper motor |
| Temperature Range | 0 to 40°C |
| Relative Humidity | <80% |
| Control Method | Mechanical Keypad |
| Keypad Lifespan | 300,000 times |
| Back Suction Angle | 0 to 360° |
| External Control | 0 to 5 V, 0 to 10 V, 4 to 20 mA |
| Communication Interface | RS232/RS485 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal | Passive switch input (e.g., foot pedal) |
| Active Switch Signal | Default 5V to 24V active input |
| Power Consumption | <80 W |
| Power Supply | AC 220V±10%, 50Hz/60Hz |
| Dimension | 259 × 157 × 237 mm |
| Weight | 4.40 kg |
Silicone tubing (2 meters)
Operation manual × 1 pc
Power cable × 1 pc
