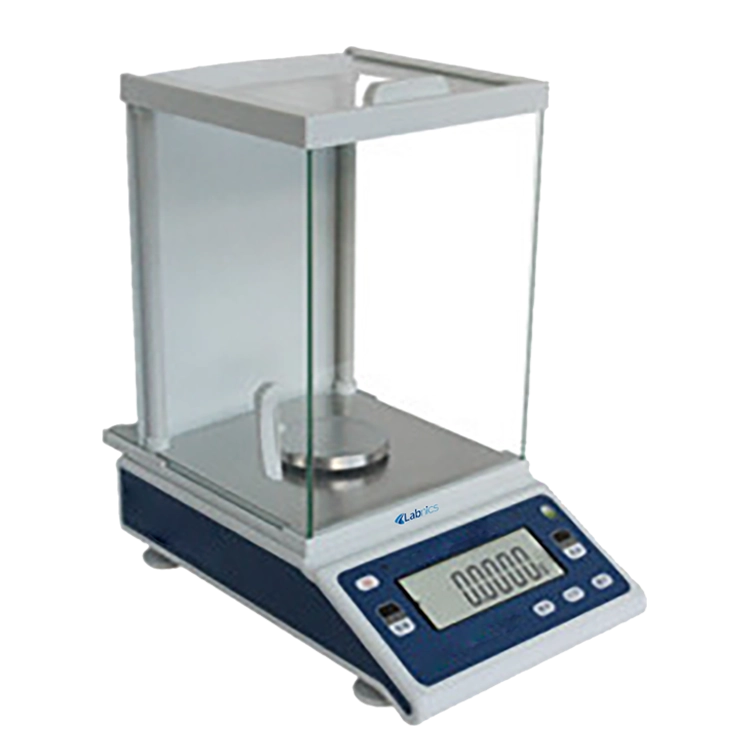

Analytical Balance NAB-100
Analytical Balance NAB-100 is a type of electromagnetic balance designed for precise measurement of mass. The glass shield ensures the accuracy of the electronic balance by retaining the resistance against the irregular air flow and dust particles. It provides RS232 interface for easy transmission and memory storage of weighing data and to display it to monitor or print it.
| Maximum Capacity | 0-100 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Power | 220-240V 50HZ / 110-120V 60HZ |
| External Dimensions | 350 × 210 × 350 mm |
| Packing Dimensions | 390 × 300 × 450 mm |
| Weight | 8.5 kg |
It is widely used for weighing of samples, precipitates or biological specimens of relatively smaller quantities. It is useful in areas like Organic and analytical chemistry labs, Preparatory labs of Biotechnology, Microbiology, Forensic sciences, Bioanalytical and Nutraceutical testing laboratories, and Bioorganic divisions etc.
| Accessories No | Name |
| 1 | Calibration weight box 200 g F1 class |
| 2 | RS232 |
| Accessories No | Name |
| 1 | Printer (dot-matrix printer, thermal printer) |
| Maximum Capacity | 0-16 kg |
| Readability | 0.1g |
| Repeatability | ≤ 0.1 g |
| Display dimensions(L×W) | 110×30 mm |
| Max capacity | 1100/g |
| Weight | 500/g |
| Resolution | 0.01g |
| Weighing Pan size | Φ130mm, 160×160mm |
| Maximum Capacity | 1000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 2000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 3100 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.02g |
| Linearity | 0.02g |
| Maximum Capacity | 4000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.04g |
| Maximum Capacity | 5000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.05g |
| Maximum Capacity | 0-100g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-200g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-300g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-500g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-600 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Capacity [Max] | 6.2 g | ||||
| Readability [d] | 0.001 mg（1μg） | ||||
| Tare range | -6.2 g | ||||
| linearity deviation |
|
| Capacity | 6100 g |
| Minimum weighing | 0.1 g |
| Stable time | ≤ 2 s |
| Repeatability | ± 0.2 g |
| Weighing Capacity | 400 g |
| Repeatability | ≤ 0.002 g |
| Readability | 0.001 g |
| Linearity | ≤ 0.002 g |
| Capacity | 50 Kg |
| Accuracy | 1 g |
| Speed | 1 s |
| Value stable time | 2 s |
| Capacity | 50 kg |
| Accuracy | 1 g |
| Speed | 1 s |
| Value stable time | 2 s |
| Capacity | 15000 g |
| Readability | 0.1 g |
| Repeatability | 0.2 g |
| Linearity | 0.2 g |
| Capacity | 30 Kg |
| Readability | 0.1 g |
| Repeatability | 0.2 g |
| Linearity | 0.2 g |
| Square Pan Dimensions(L×W) | 400×500 mm |
| Capacity | 250 kg |
| Display (L×W) | 110×30 mm |
| Readability | 10 g |
| Capacity | 300 to 600 kg |
| Resolution | 1/30,000 |
| Readability | 50 g |
| Repeatability (Sd) | ± 50d scale interface analog |
| Capacity | 2000 g |
| Division | 0.1 g |
| Beams | 10 g × 0.1 g<br/> 200 g × 10 g |
| Pan diameter | 150 mm |
