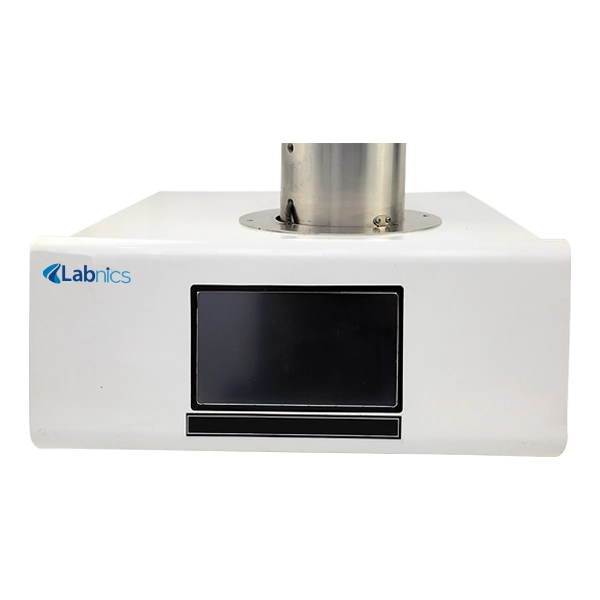

Simultaneous Thermal Analyzer NSTA-100 is a real-time analyzer that combines Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) analysis simultaneously which is ideally suited for both research and routine applications. Enabled with highly sensitive horizontal balance system, it offers highest precision and measures microgram-level weight changes. It is highly suitable when characterizing inorganics, analyzing polymers, or testing oils along with reliable results and simple data interpretation
Temperature range | Room temperature ~ 1350°C |
Temperature resolution | 0.1°C |
Temperature fluctuation | ± 0.1°C |
Heating rate | 1~80°C / min |
Cooling time | 15 mins from 1000°C – 100°C |
Balance range | 1mg ~ 2mg, can be increased up to 30g |
Balance sensitivity | 0.01 mg |
Heat holding time | 0 ~ 300 min |
User interface | USB |
Software | Auto Record TG curve |
Power supply | AC220V±10% 50/60HZ |
Dimension (L×W×H) | 489 × 400 × 343 mm |
Weight | 60 kg |
