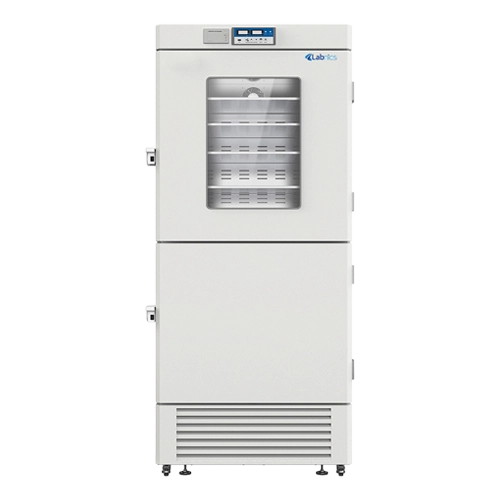

Laboratory Refrigerator Freezer NLRF-201

Laboratory Refrigerator Freezer NLRF-201 is an upright cold storage system with combined top refrigerator and bottom freezer. It is a microprocessor-controlled system that enables effective and safe storage of medicines and chemicals, immunological kits, laboratory media and many other biological materials, etc. It is equipped with a visual and audible alarm system for and loss in sensor activity or power failure that prevents loss of temperature sensitive cryogenic samples.

---

Get Quote Catalog

Specifications

Capacity (L)	Refrigerator:323 L Freezer:196 L
Cooling method	Refrigerator: Forced air cooling Freezer: Direct cooling
Defrost	Refrigerator: Automatic Freezer: Manual
Refrigerant	R600a
Power consumption(kWh/24h)	3.76
Ambient temperature（°C）	10～32℃
Temperature range(°C)	Refrigerator:2℃～8℃ Freezer:-10℃～-26℃
Voltage/frequency(V/Hz)	220V/50Hz
Power (W)	382 W
Current (A)	2.54 A
External size(W×D×H)	910 × 740 × 1972 mm
Internal size(W×D×H)	Refrigerator: 750 × 610 × 740mm Freezer : 650 × 560 × 565mm
Net weight	186 kg

Features

• It is made up of stainless steel material with sprayed steel coat outer body
• It is featured with LED digital display to monitor temperature control system
• External door handle and padlock to prevent unauthorized access to the system
• Chemically stable, CFC-free, hence environmentally safe refrigerant
• Visual and audible alarm system for temperature fluctuations, power failure, sensor error, door ajar, and thermostat failure etc
• Easy maintenance of memory functions of standard working cycle in spite of any sensor failure

Applications

• It is widely used in scientific research institutes, Cell culture laboratories, blood banks, and in areas like Clinical research, Biomedical and biotechnology based industries.

Standard Accessories

Accessories No	Name
1	4 × Caster with brakes
2	Remote alarm port
3	USB port

Optional Accessories

Accessories No	Name
1	Printer
2	RS485,RS232
3	Remote alarm contact
