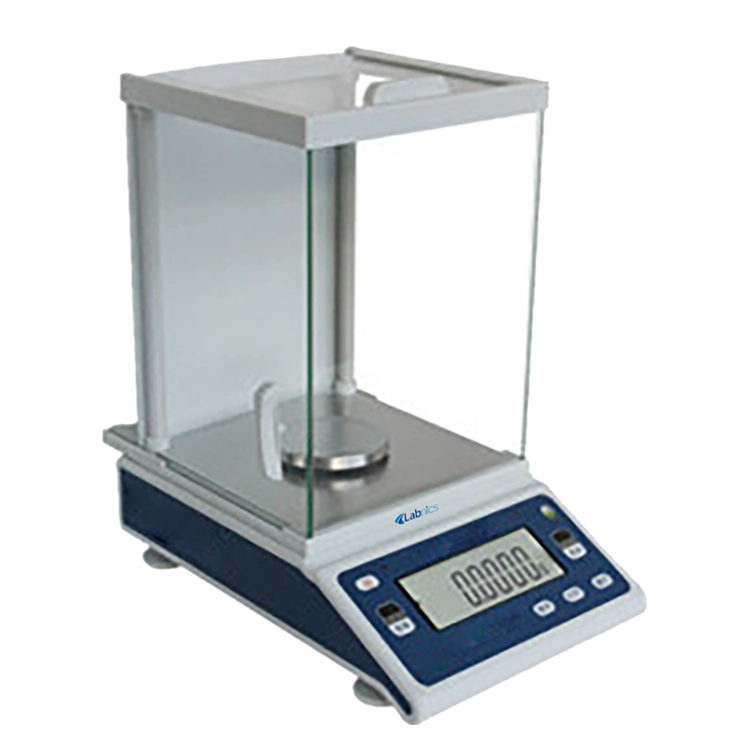

Analytical Balance NAB-101
Analytical Balance NAB-101 is an electromagnetic weighing balances for exact estimation of mass. The glass shield guarantees the precision of the electronic equalization by holding the obstruction against the unpredictable wind current and residue particles. It is featured with zero tracking function that enables stability despite of the drift in environmental conditions.
| Maximum Capacity | 0-110 g |
| Readability | 0.1mg |
| Repeatability | ≤ 0.0002 g |
| Pan Diameter | ϕ 80 mm |
| Power | 220-240V 50HZ / 110-120V 60HZ |
| External Dimensions | 350 × 210 × 350 mm |
| Packing Dimensions | 390 × 300 × 450 mm |
| Weight | 8.5 kg |
It is widely used for weighing of samples, precipitates or biological specimens of relatively smaller quantities. It is useful in areas like Organic and analytical chemistry labs, Preparatory labs of Biotechnology, Microbiology, Forensic sciences, Bioanalytical and Nutraceutical testing laboratories, and Bioorganic divisions etc.
| Accessories No | Name |
| 1 | Calibration weight box 200 g F1 class |
| 2 | RS232 |
| Accessories No | Name |
| 1 | Printer (dot-matrix printer, thermal printer) |
| Maximum Capacity | 0-16 kg |
| Readability | 0.1g |
| Repeatability | ≤ 0.1 g |
| Display dimensions(L×W) | 110×30 mm |
| Max capacity | 1100/g |
| Weight | 500/g |
| Resolution | 0.01g |
| Weighing Pan size | Φ130mm, 160×160mm |
| Maximum Capacity | 1000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 2000 g |
| Readability | 0.01g |
| Repeatability | 0.01 g |
| Linearity | 0.02g |
| Maximum Capacity | 3100 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.02g |
| Linearity | 0.02g |
| Maximum Capacity | 4000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.04g |
| Maximum Capacity | 5000 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.03g |
| Linearity | 0.05g |
| Maximum Capacity | 0-100g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-200g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-300g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-500g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Maximum Capacity | 0-600 g |
| Readability | 0.01g |
| Repeatability | ≤ 0.01g |
| Linearity | 0.02g |
| Capacity [Max] | 6.2 g | ||||
| Readability [d] | 0.001 mg（1μg） | ||||
| Tare range | -6.2 g | ||||
| linearity deviation |
|
| Capacity | 6100 g |
| Minimum weighing | 0.1 g |
| Stable time | ≤ 2 s |
| Repeatability | ± 0.2 g |
| Weighing Capacity | 400 g |
| Repeatability | ≤ 0.002 g |
| Readability | 0.001 g |
| Linearity | ≤ 0.002 g |
| Capacity | 50 Kg |
| Accuracy | 1 g |
| Speed | 1 s |
| Value stable time | 2 s |
| Capacity | 50 kg |
| Accuracy | 1 g |
| Speed | 1 s |
| Value stable time | 2 s |
| Capacity | 15000 g |
| Readability | 0.1 g |
| Repeatability | 0.2 g |
| Linearity | 0.2 g |
| Capacity | 30 Kg |
| Readability | 0.1 g |
| Repeatability | 0.2 g |
| Linearity | 0.2 g |
| Square Pan Dimensions(L×W) | 400×500 mm |
| Capacity | 250 kg |
| Display (L×W) | 110×30 mm |
| Readability | 10 g |
| Capacity | 300 to 600 kg |
| Resolution | 1/30,000 |
| Readability | 50 g |
| Repeatability (Sd) | ± 50d scale interface analog |
| Capacity | 2000 g |
| Division | 0.1 g |
| Beams | 10 g × 0.1 g<br/> 200 g × 10 g |
| Pan diameter | 150 mm |
