Product Data Sheet · Laboratory Equipment

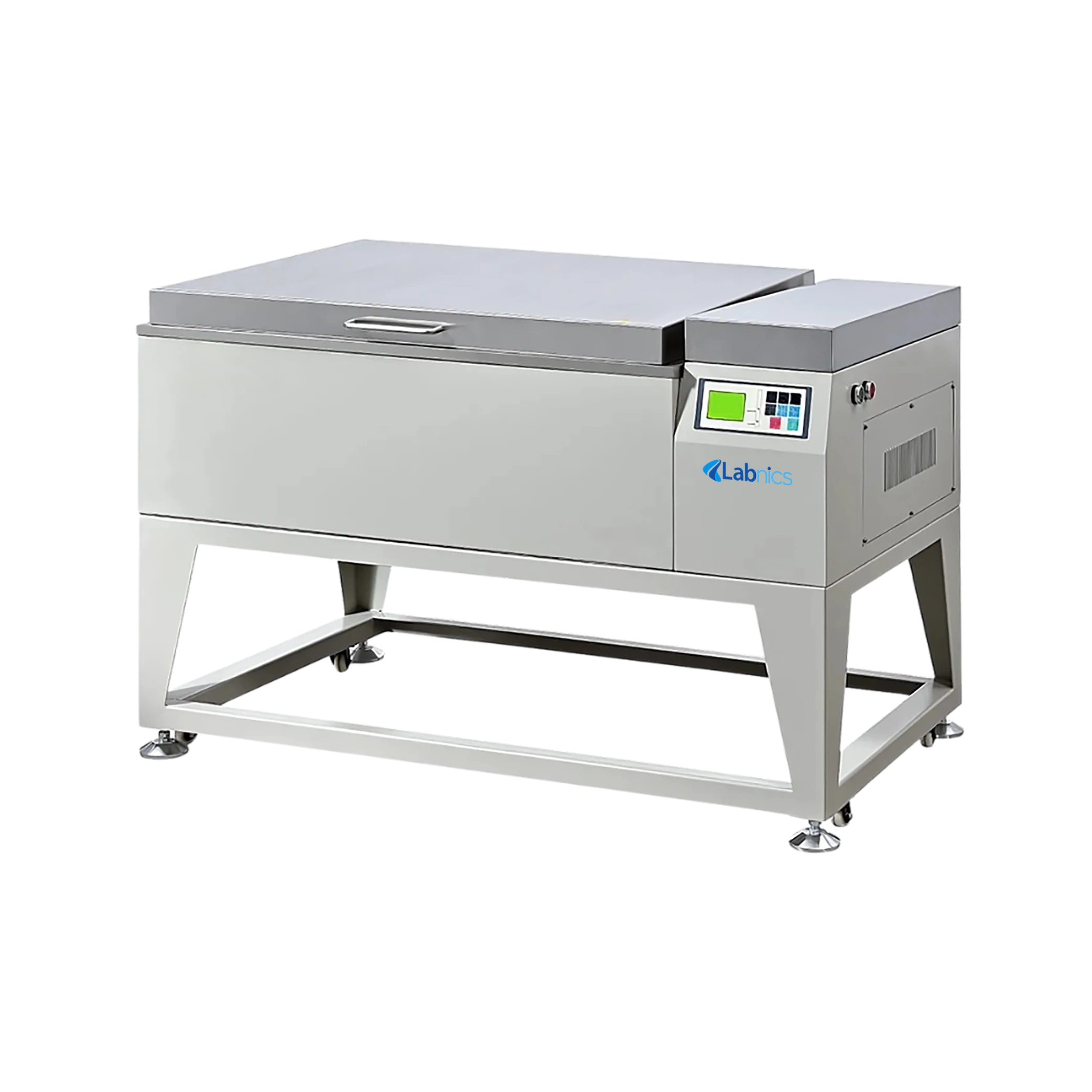

Shaker Water Bath NSWB-700 provides a 170-liter capacity to accommodate a wide range of sample sizes. It opens upward, allowing easy access to samples and convenient loading and unloading. This unit offers a 25 mm throw, ensuring efficient and uniform mixing of contents. It safeguards samples with a sensitive speed monitoring system to prevent damage. Our water bath displays all key parameters clearly on a large LCD screen for easy monitoring.
| Door opening method | Door upward |
|---|---|
| Capacity | 170 liters |
| Maximum loading capacity | 1000ml×21 500ml×30 250ml×50 |
| Temperature range | RT to 100°C |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ≤±0.2°C |
| Temperature editing | Repeat/Pace/8-segment curve editing |
| Rotation way | Reciprocating switchable |
| Rotation speed | 20 to 200 rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 25 mm |
| Timing range | 0 to 999.59H |
| Display | LCD screen |
| Control | P.I.D microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single-axis balanced drive |
| Tray material/Chamber material | Stainless steel type 304 |
| Bearings | Original imported double row bearings |
| Clamp types | Flask clamp, spring plate |
| Power consumption | 4500W |
| Power supply | 220 to 240V, 50/60Hz |
| Tray size | 780×590mm |
| Internal dimension | 940×660×275mm |
| External dimension | 1240×700×830mm |
| Net weight | 133 kg |
