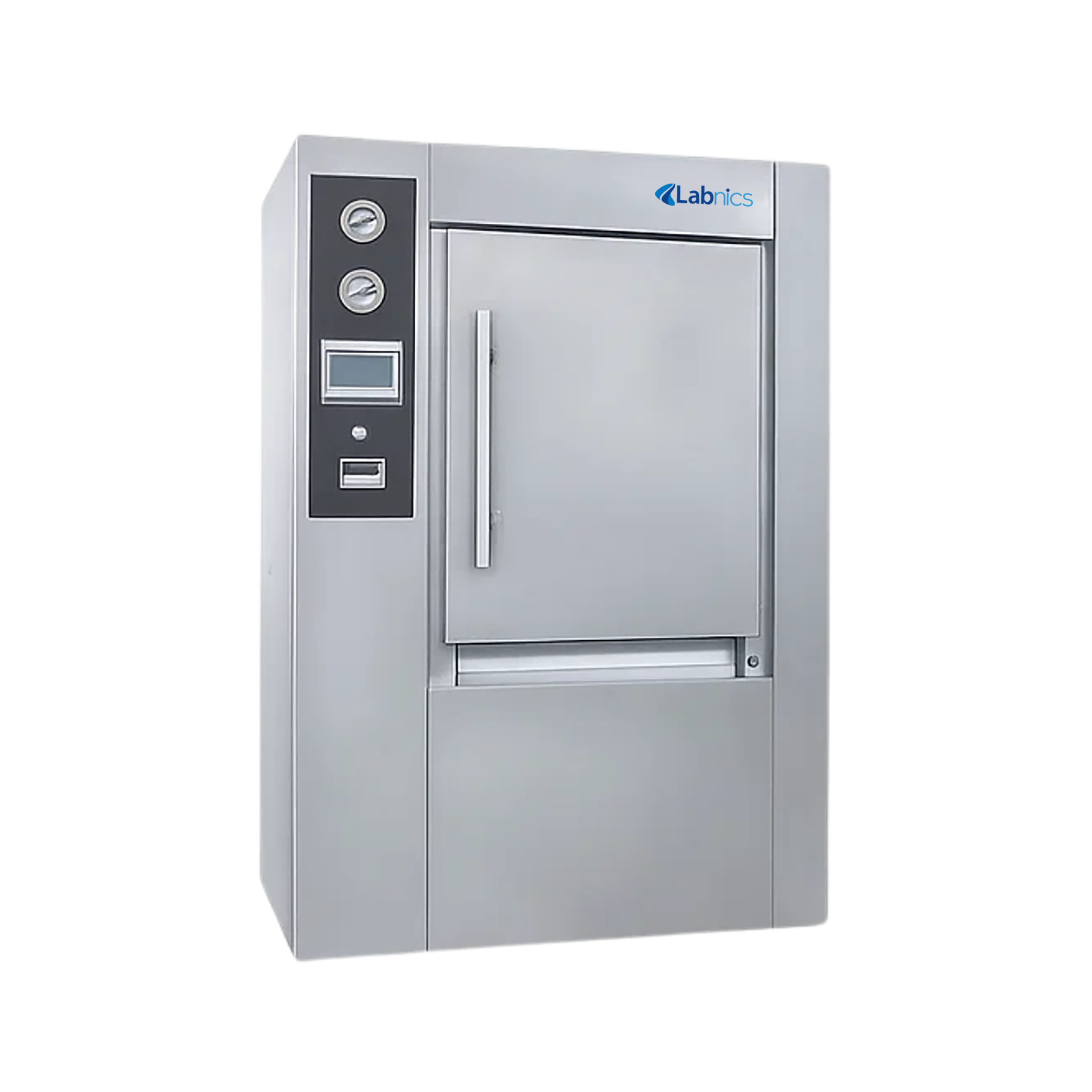

Pulse Vacuum Autoclave NPVA-108 has a chamber capacity of 360L, providing ample space for sterilization. It features a rectangular cross-section with an annular reinforcing rib jacket. This unit comes with a double-door system and pressure safety interlocks. It uses an inflation-driven mechanism to create an airtight seal and prevent leaks. Our pulse vacuum autoclave includes a built-in micro-dot printer for real-time process data.
| Capacity |
360L |
| Pressure of inner chamber |
-0.1 to 0.3Mpa |
| Pressure of jacket |
0.3Mpa |
| Designed temperature |
150°C |
| Working temperature |
139°C |
| Working pressure |
0.25Mpa |
| Vacuum leakage rate |
≤0.13KPa/min |
| Ultimate vacuum |
-97Kpa |
| Opening pressure for the inner chamber’s safety valve |
0.28Mpa |
| Opening pressure for jacket’s safety valve |
0.28Mpa |
| Precision of sterilization temperature control |
0 to 2°C |
| Temperature uniformity |
±1°C |
| Negative pressure pulsation vacuum amplitude and times |
Amplitude -80 to 0Kpa, Times 1 to 99 |
| Times of pulses across pressure |
Amplitude -80 to 80Kpa, Times 1 |
| Times of positive pressure pulses |
1 to 3 |
| Steam consumption |
22Kg/C |
| Tap water consumption |
180Kg/C |
| Power consumption |
380V, 50Hz |
| Power supply |
2kW |
| Internal dimension |
610×610×1000mm |
| External dimension |
1320×1350×1930mm |
| Packaging dimension |
1670×1520×2100mm |
| Weight |
850Kg |
FAQ for Pulse Vacuum Autoclave NPVA-108
1: How is the sterilization process controlled and monitored?
The Pulse Vacuum Autoclave uses a Siemens PLC control system with a color touchscreen interface. It displays real-time parameters like temperature, pressure, and time, so you can track everything without manual intervention.
2: How is the sealing achieved during operation?
The door has an inflatable silicone rubber seal that automatically inflates under pressure, providing a tight and long-lasting seal. This enhances both safety and the overall effectiveness of the sterilization cycle.
3: Is there any contamination risk from the jacket to the chamber?
No, our Pulse Vacuum Autoclave offers an optional independent steam inlet that prevents jacket material, such as carbon steel, from affecting sterilized items. This also helps maintain drying efficiency.
4: What type of filters are used for air purification in the Pulse Vacuum Autoclave NPVA-108?
The built-in air filter has a precision of ?2 microns and achieves a 99.97% sterilization rate, ensuring no airborne contaminants compromise the sterilized items.
5: How often does the Pulse Vacuum Autoclave NPVA-108 require maintenance?
Routine maintenance is generally low due to its durable components and automated systems. Most users only need to perform scheduled checks every few months, depending on usage intensity and local standards.
